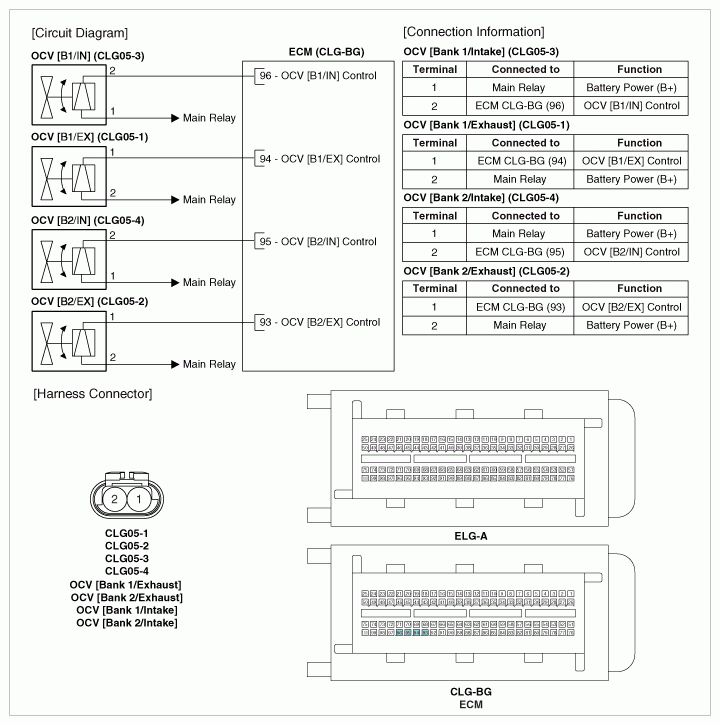

Home >> Hyundai >> 2014 >> Genesis 3.8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> CVVT Oil Control Valve (OCV) >> Schematic Diagrams >> Circuit Diagram
