Home >> Hyundai >> 2014 >> Elantra GT Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine & Transaxle Assembly >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

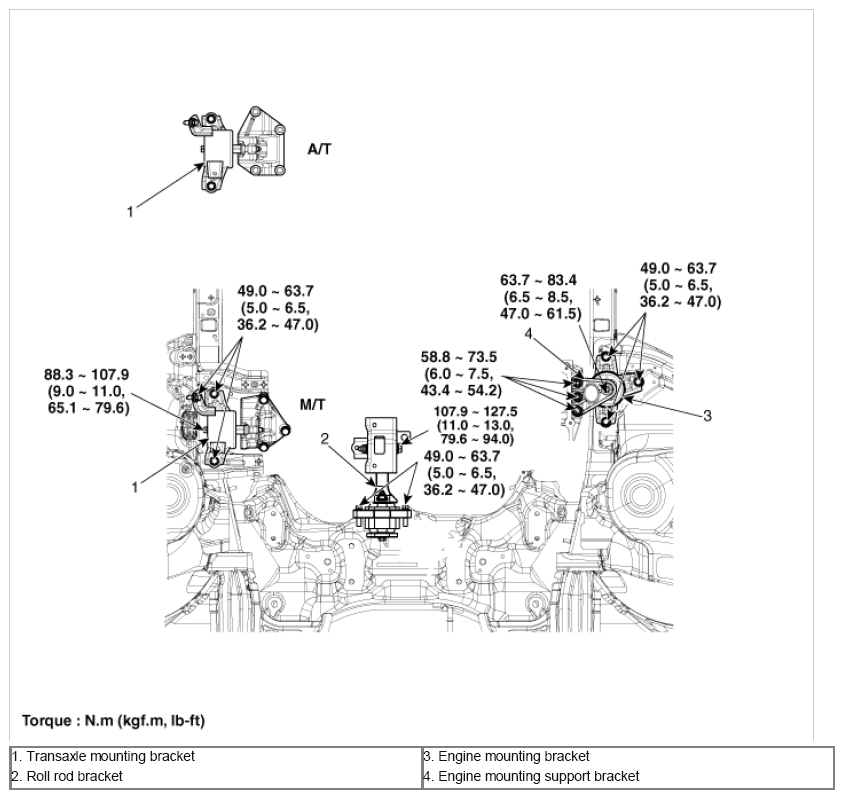

Fig 1: Engine Mounting Replacement Components With Torque Specifications -- 2013
G09885369Courtesy of HYUNDAI MOTOR AMERICA

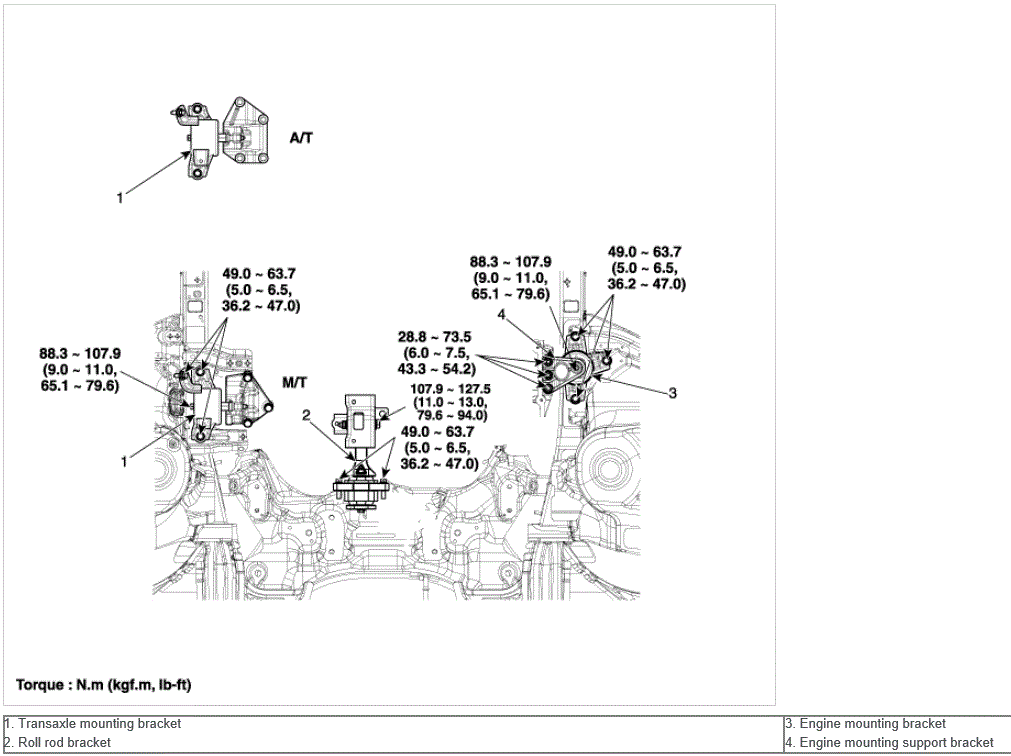

Fig 2: Engine Mounting Replacement Components With Torque Specifications -- 2014
G00554112Courtesy of HYUNDAI MOTOR AMERICA
