Repair procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

  2. Using a spark plug socket, remove the spark plugs (A).
    NOTE: * Be careful that no contaminates enter into spark plug holes.

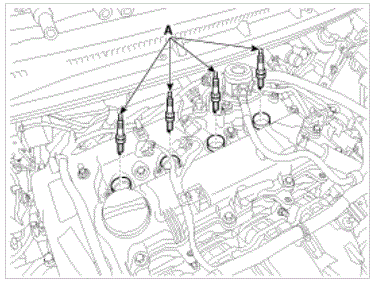

    Fig 1: Identifying Spark Plugs
    G00554151Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful that no contaminants enter through the spark plug holes.
  3. Installation is reverse order of removal.
