Projected Dimensions

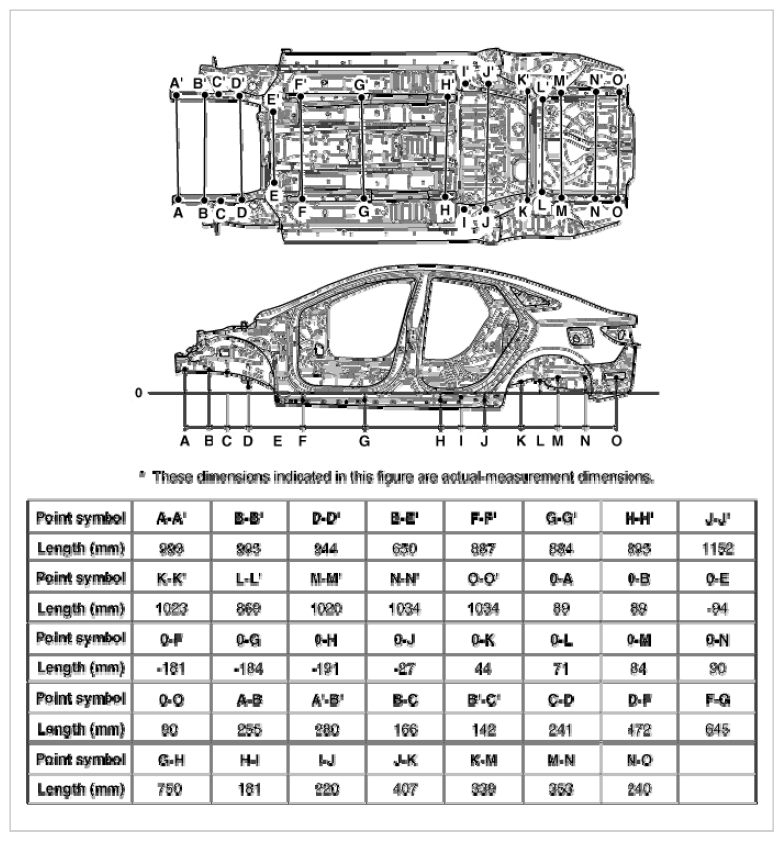

Fig 1: Identifying Under Body Projected Dimensions
G08810513Courtesy of HYUNDAI MOTOR AMERICA

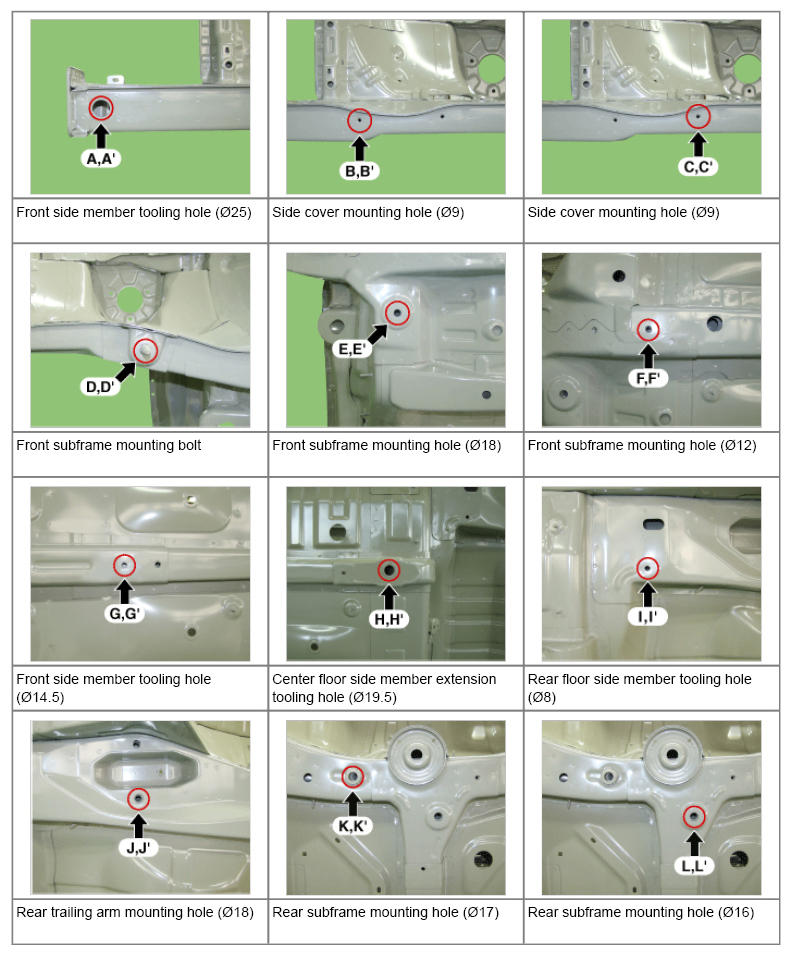

Fig 2: Locating Mounting Holes On Under Body (1 Of 2)
G08810514Courtesy of HYUNDAI MOTOR AMERICA

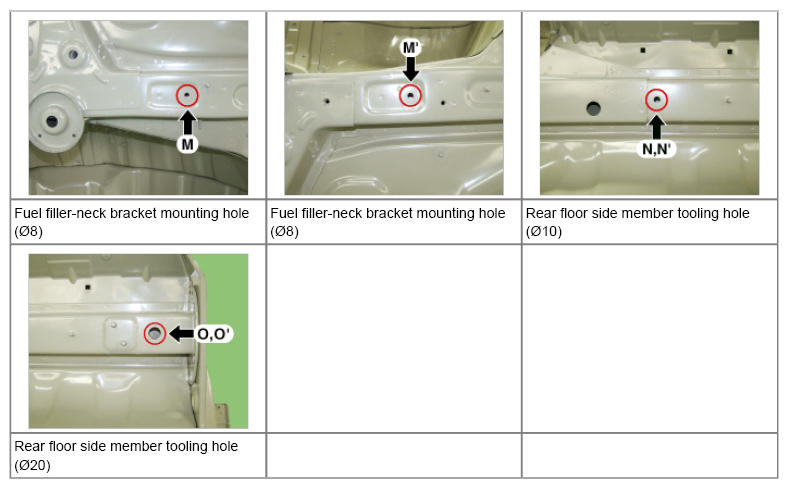

Fig 3: Locating Mounting Holes On Under Body (2 Of 2)
G08810515Courtesy of HYUNDAI MOTOR AMERICA
