Power Window Switch: Diagrams





Circuit Diagram

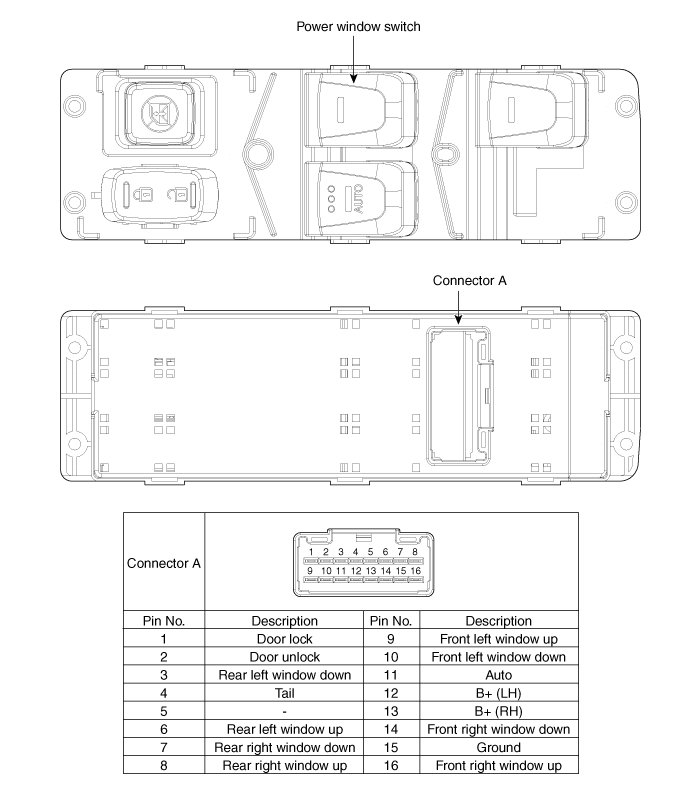

Driver Power Window Switch

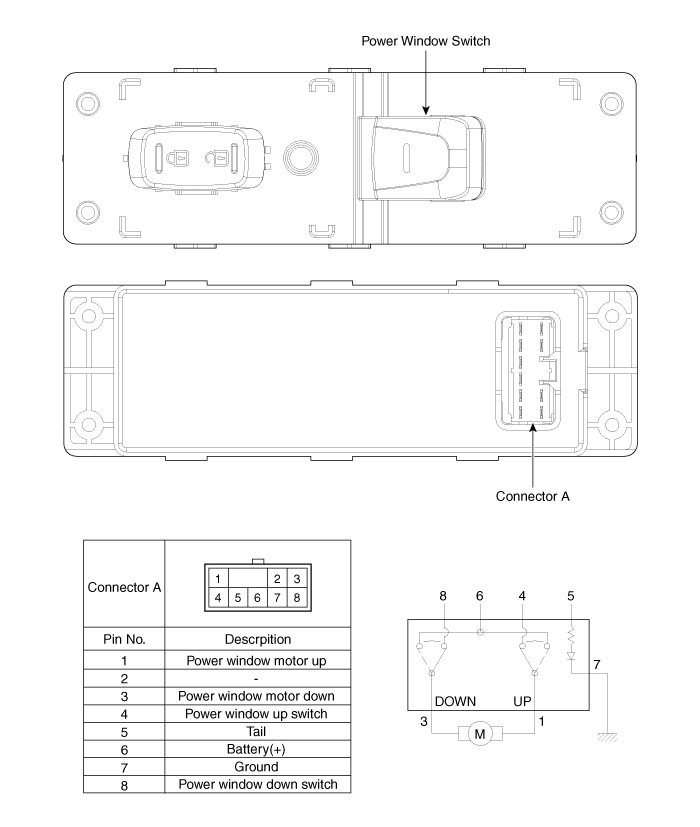

Passenger power window switch

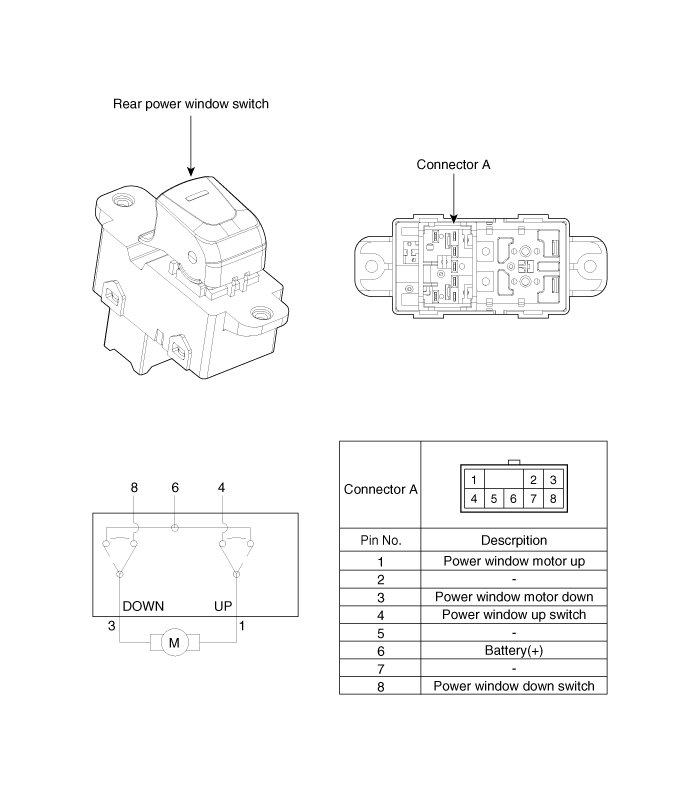

Rear power window switch
