Components and Components Location





Components

Control Panel (AVN Type)




Control Panel (Audio Type)

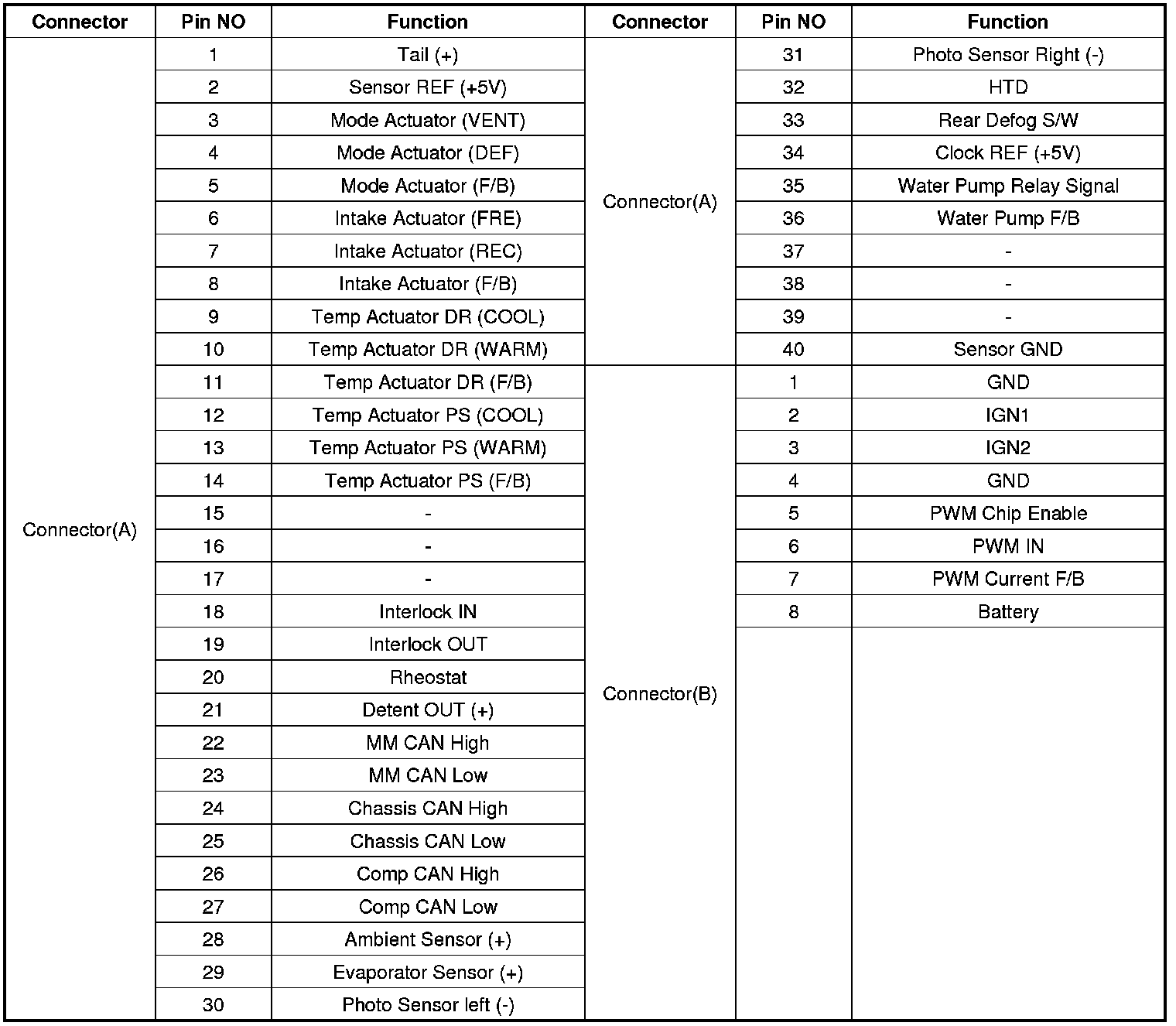

Connector pin function
