Home >> Hyundai >> 2013 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Diagrams

Control Module: Diagrams





1. TCM Connector and Terminal Function

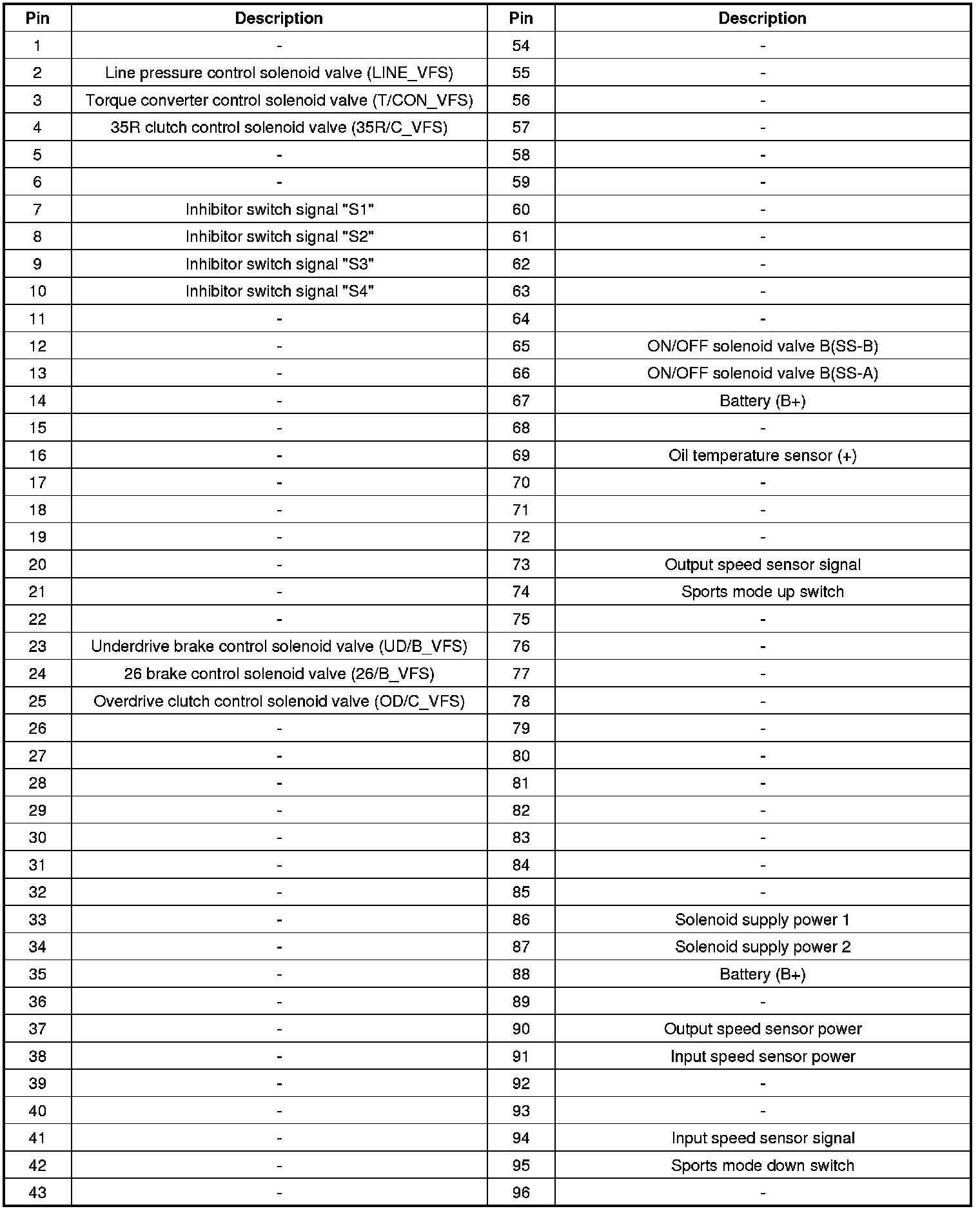

2. TCM Terminal Function

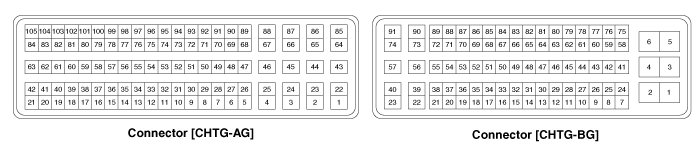

Connector [CHTG-AG]

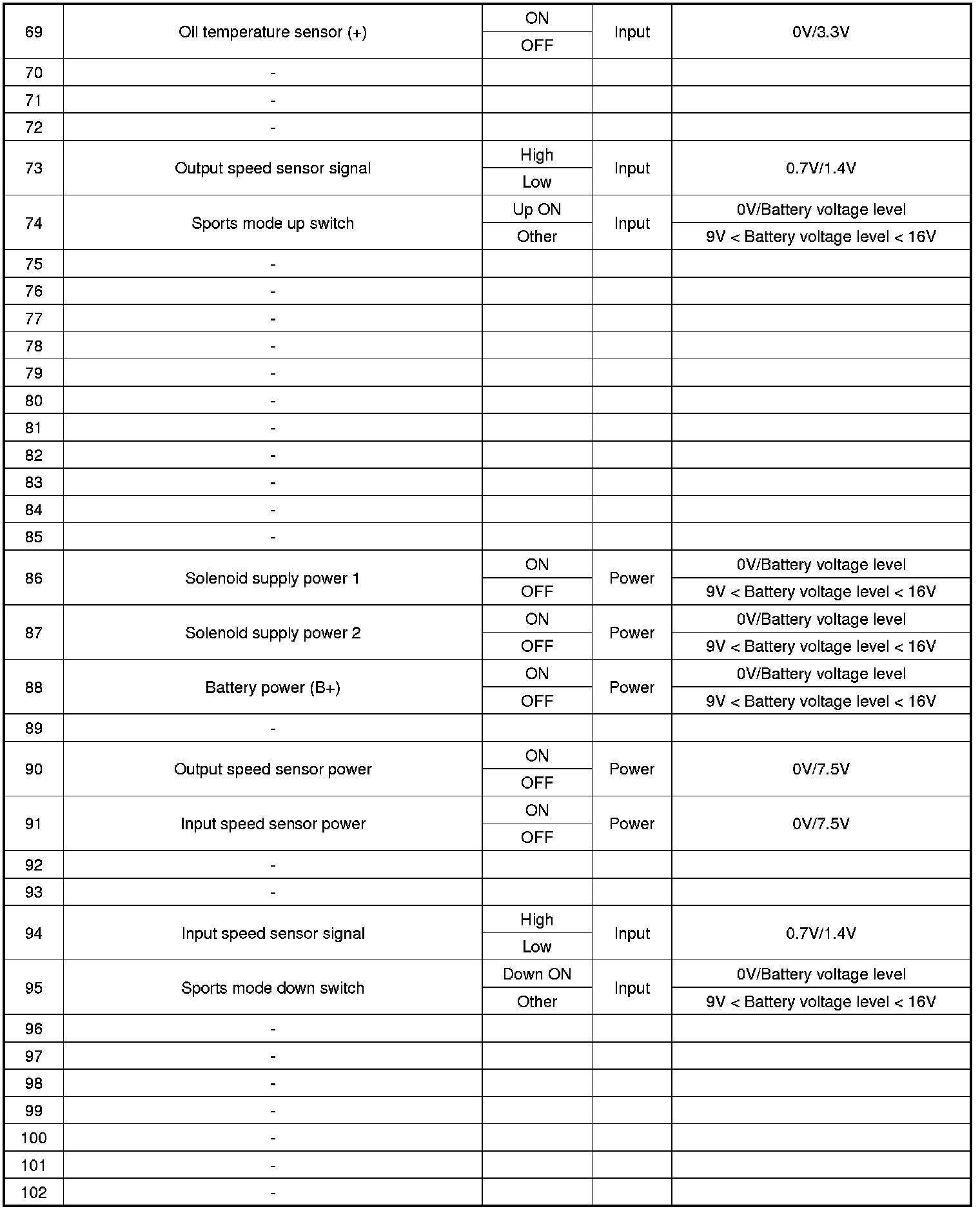

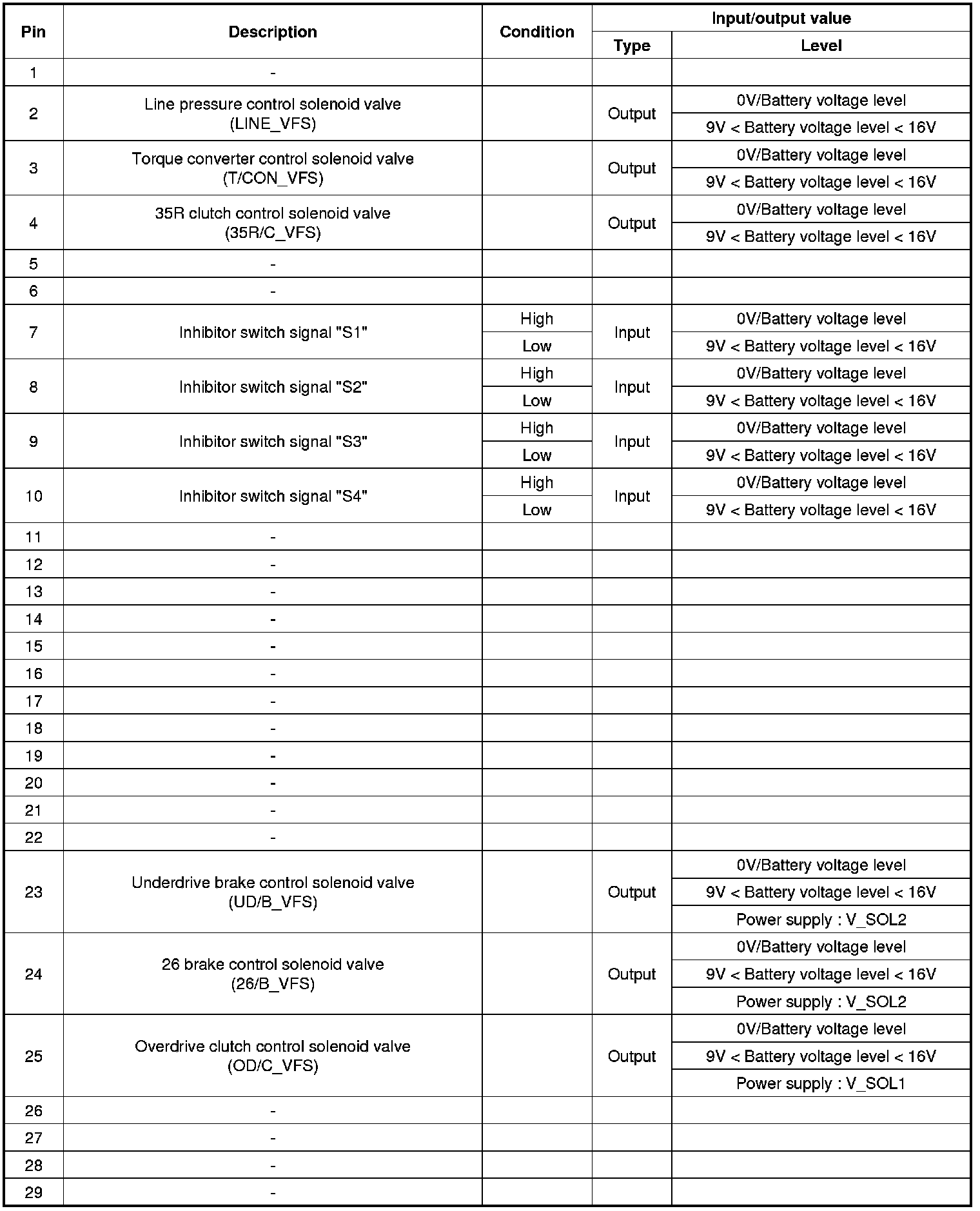

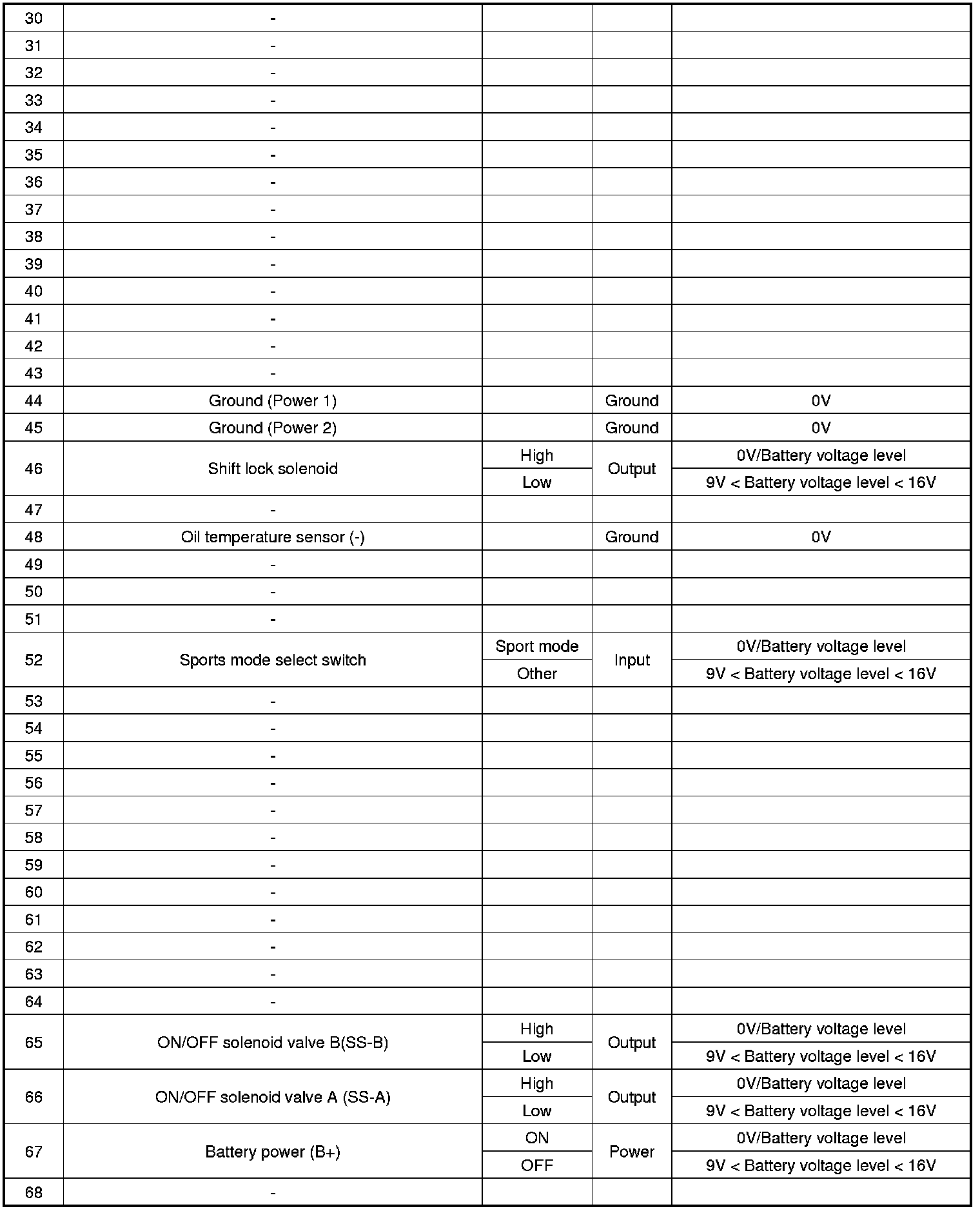

TCM Terminal Input/ Output Signal

Connector [CHTG-AG]

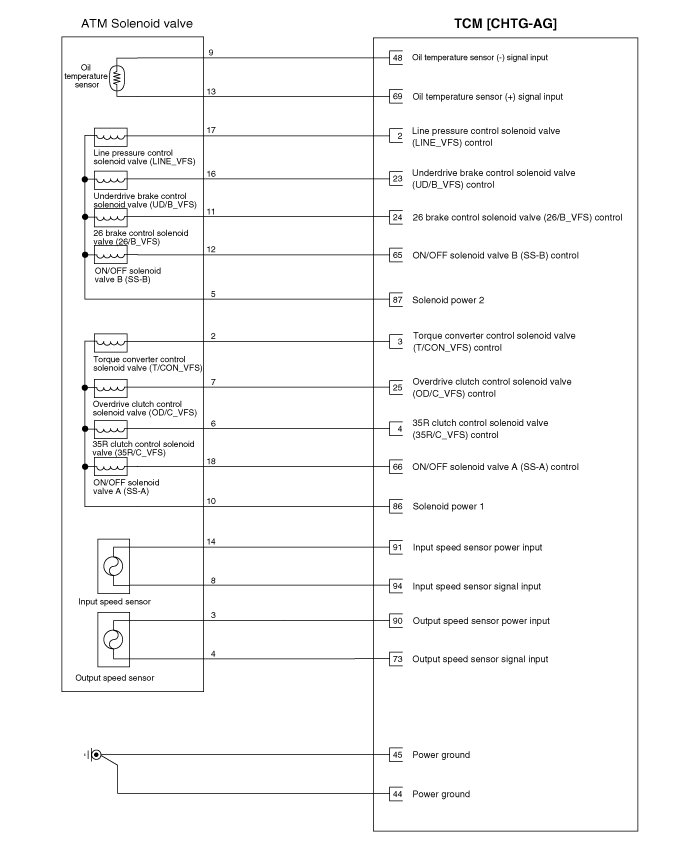

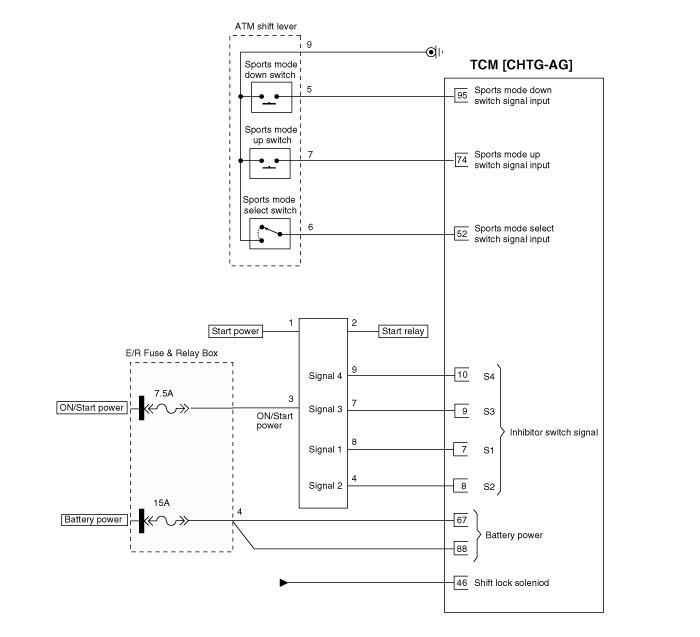

Circuit Diagram
