Power Window Switch: Diagrams





Circuit Diagram

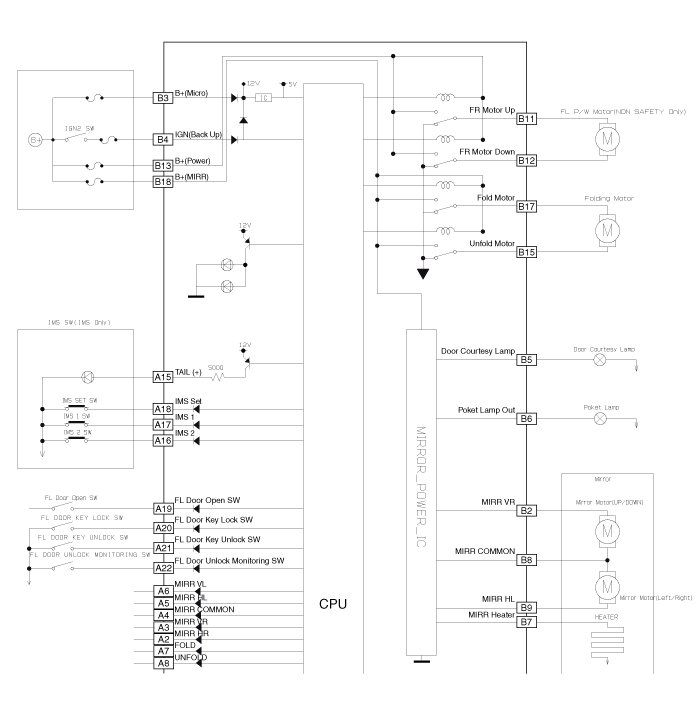

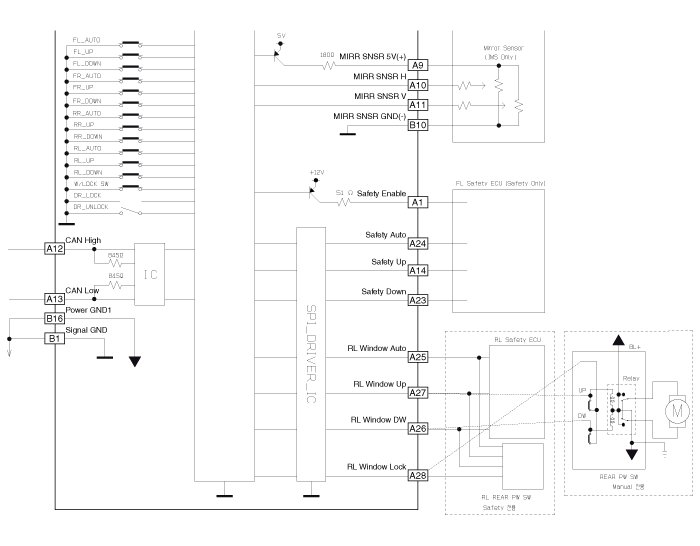

Driver Power Window Switch

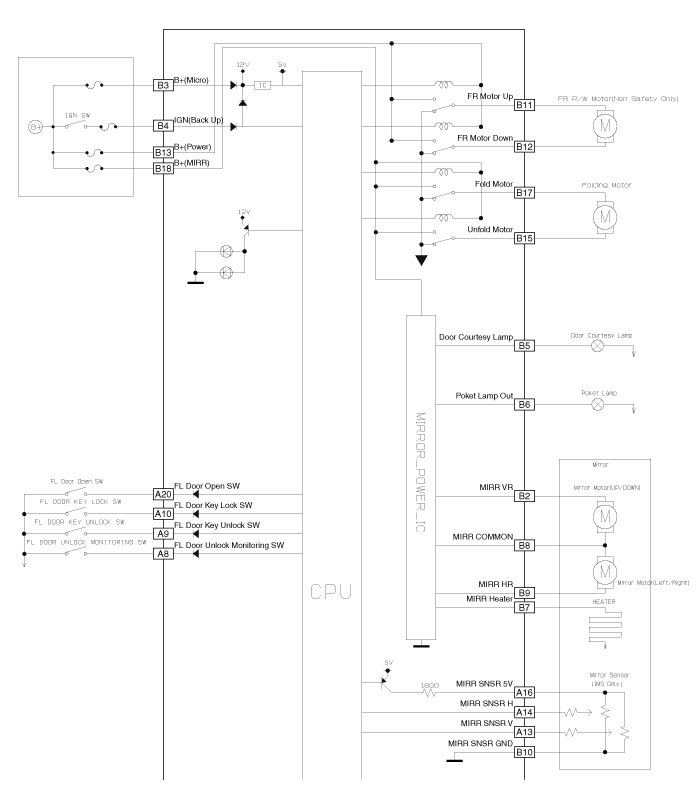

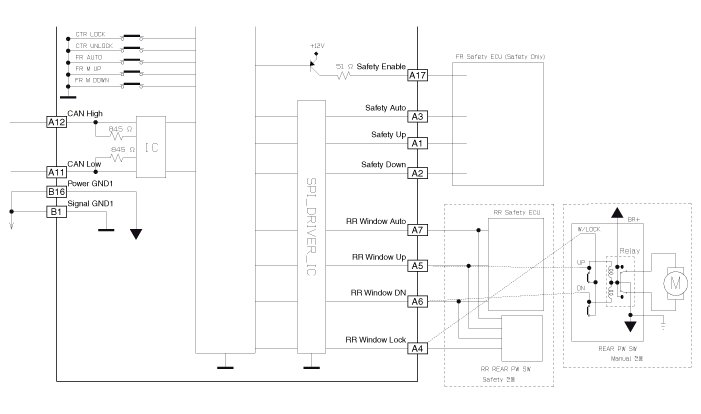

Assist Power Window Switch

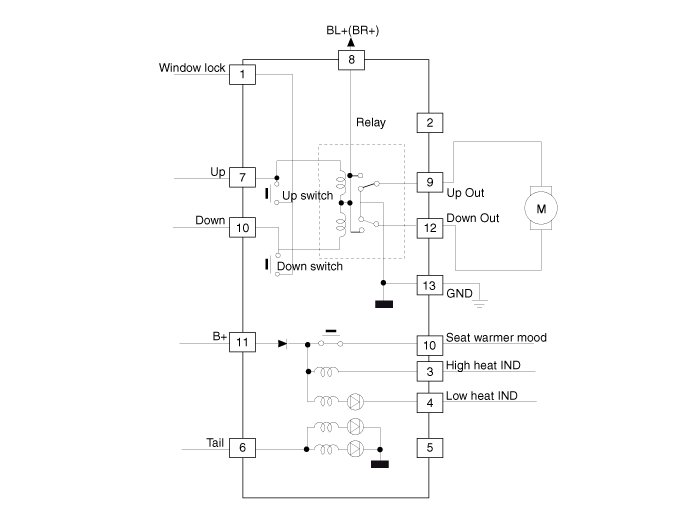

Rear Power Window Switch
