System Specifications





Specifications

Front Suspension





Rear Suspension





Wheel & Tire





Wheel Alignment [~2012-09-26]





Wheel Alignment [2012-09-27~]






Tightening Torque

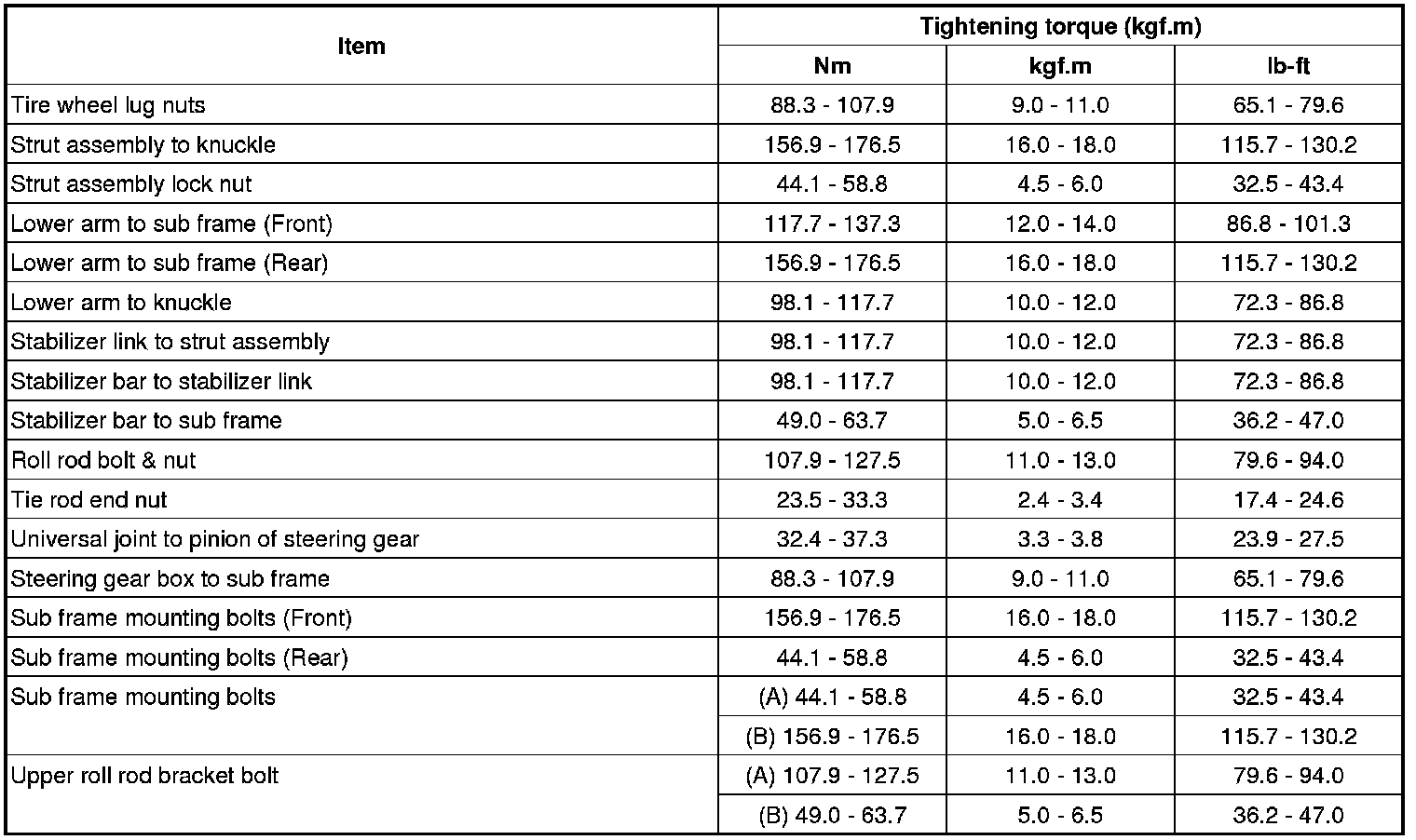

Front Suspension

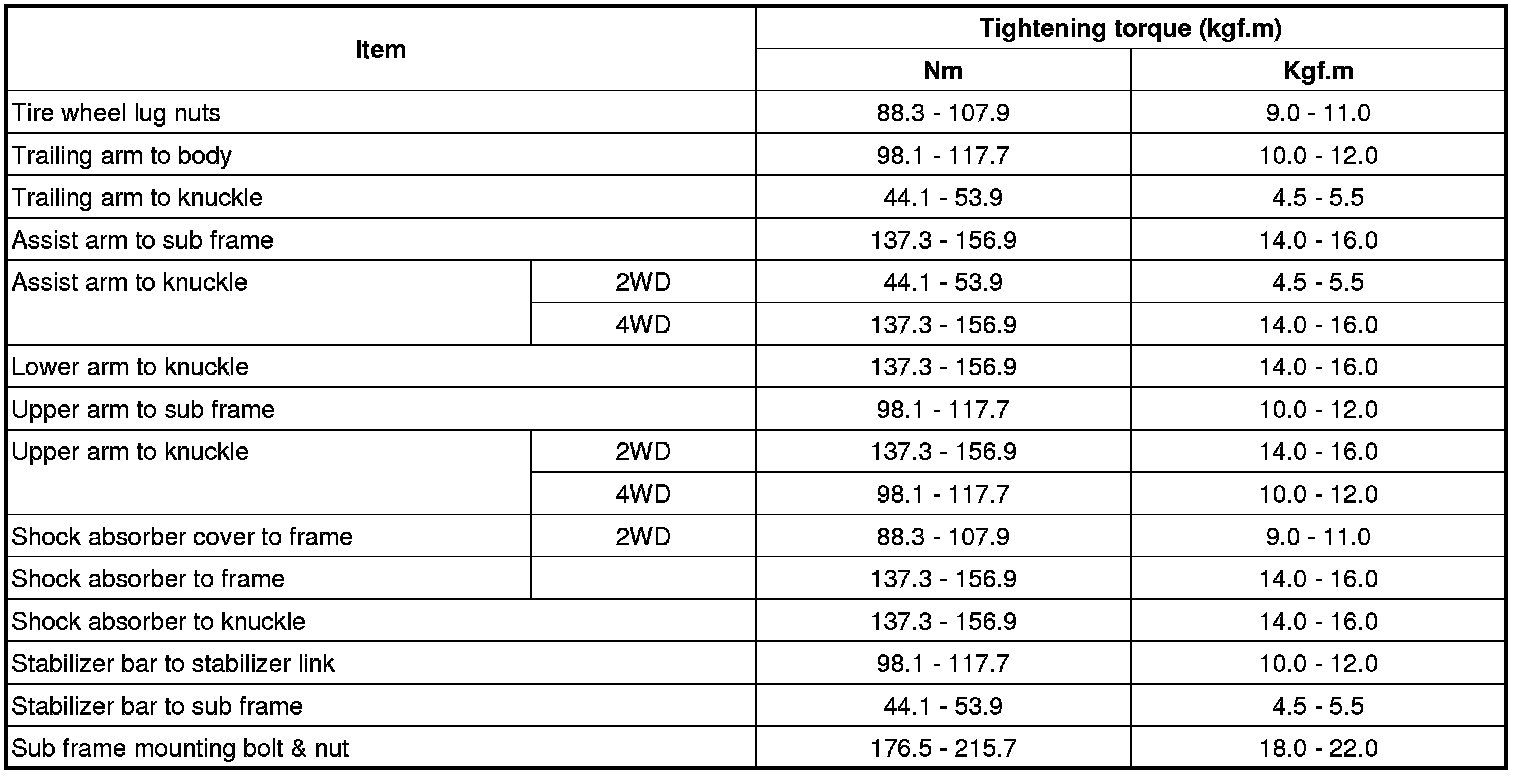

Rear Suspension
