Engine Control Module: Diagrams





ECM Terminal And Input/Output signal

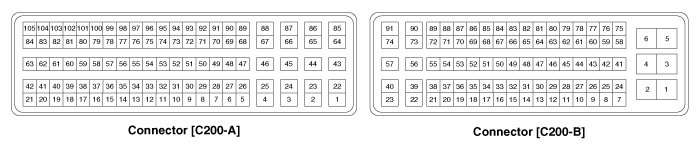

ECM Harness Connector




ECM Terminal Function
Connector [C200-A]













Connector [C200-B]













ECM Terminal Input/ Output signal
Connector [C200-A]













Connector [C200-B]

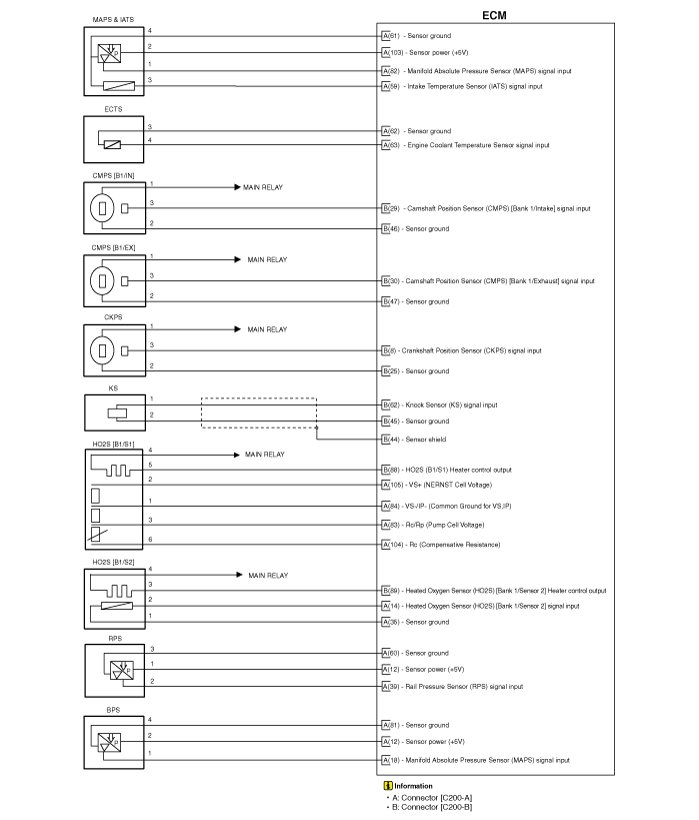

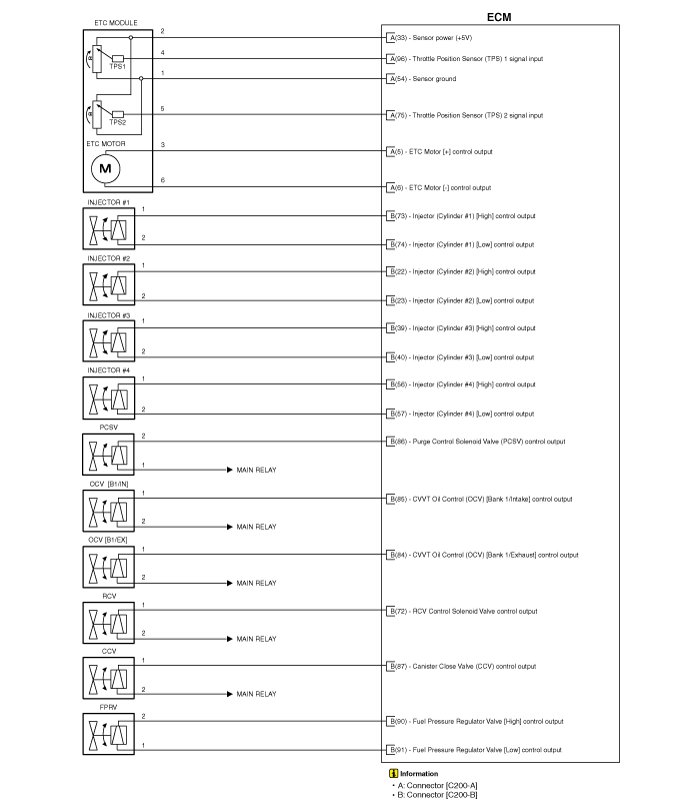

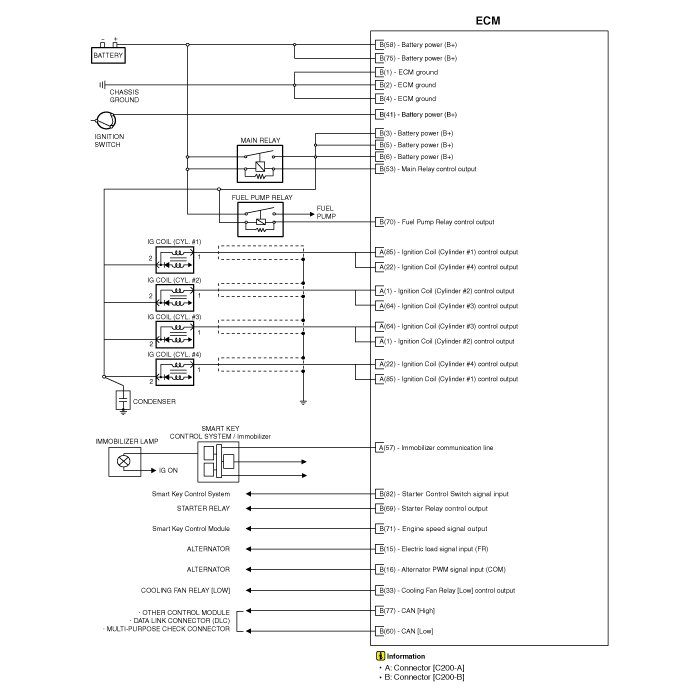

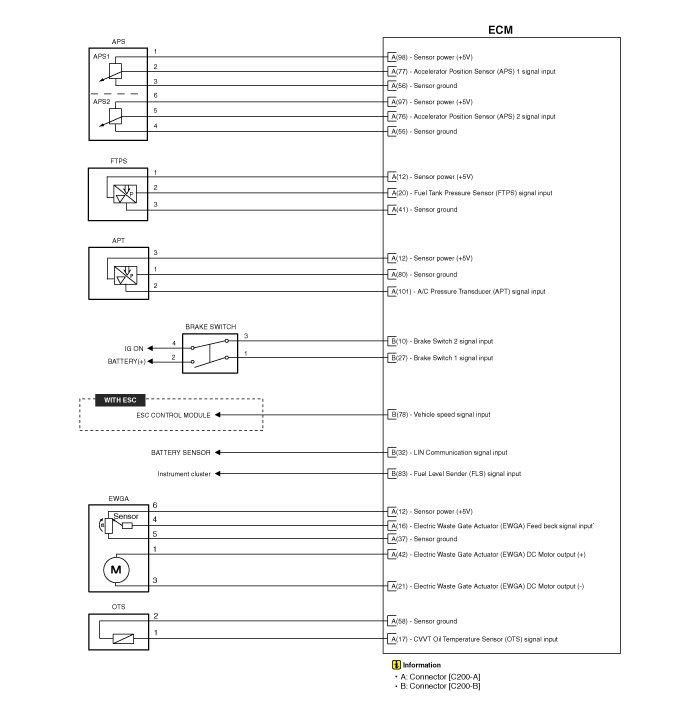

Circuit Diagram
