Fuel Injector Control Module





IDB terminal and Inoutput

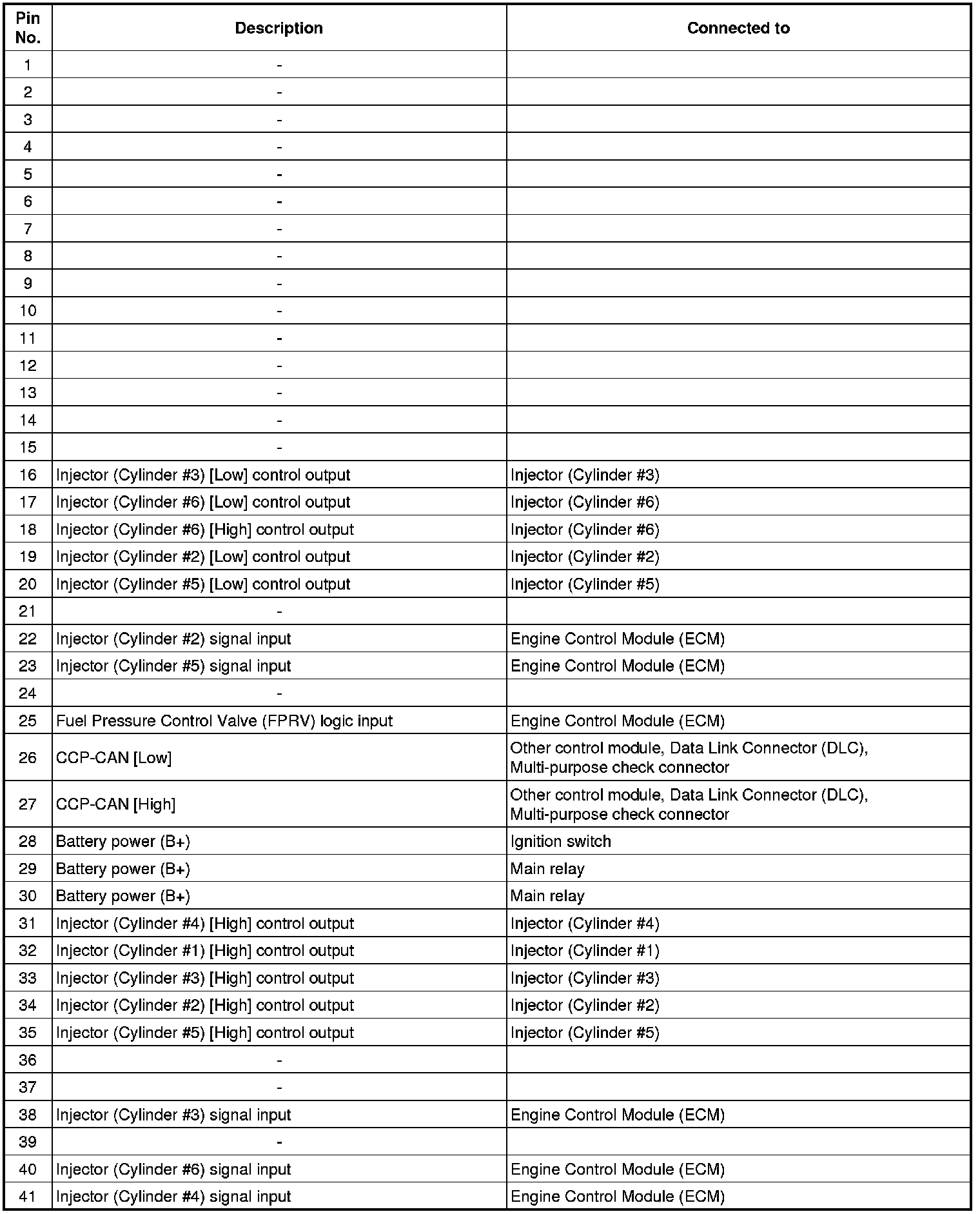

IDB terminal function
Connector [CLG-IDB]

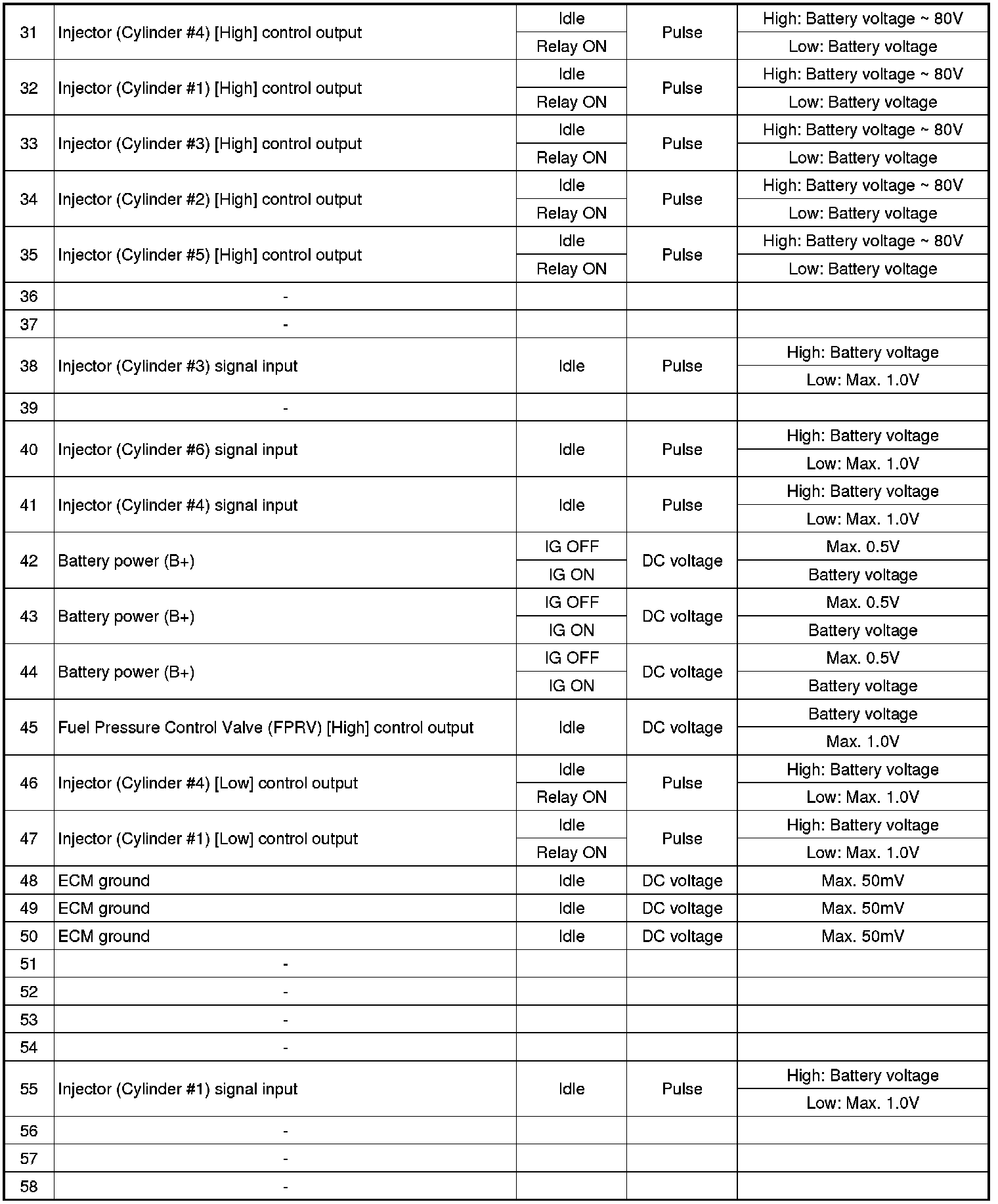

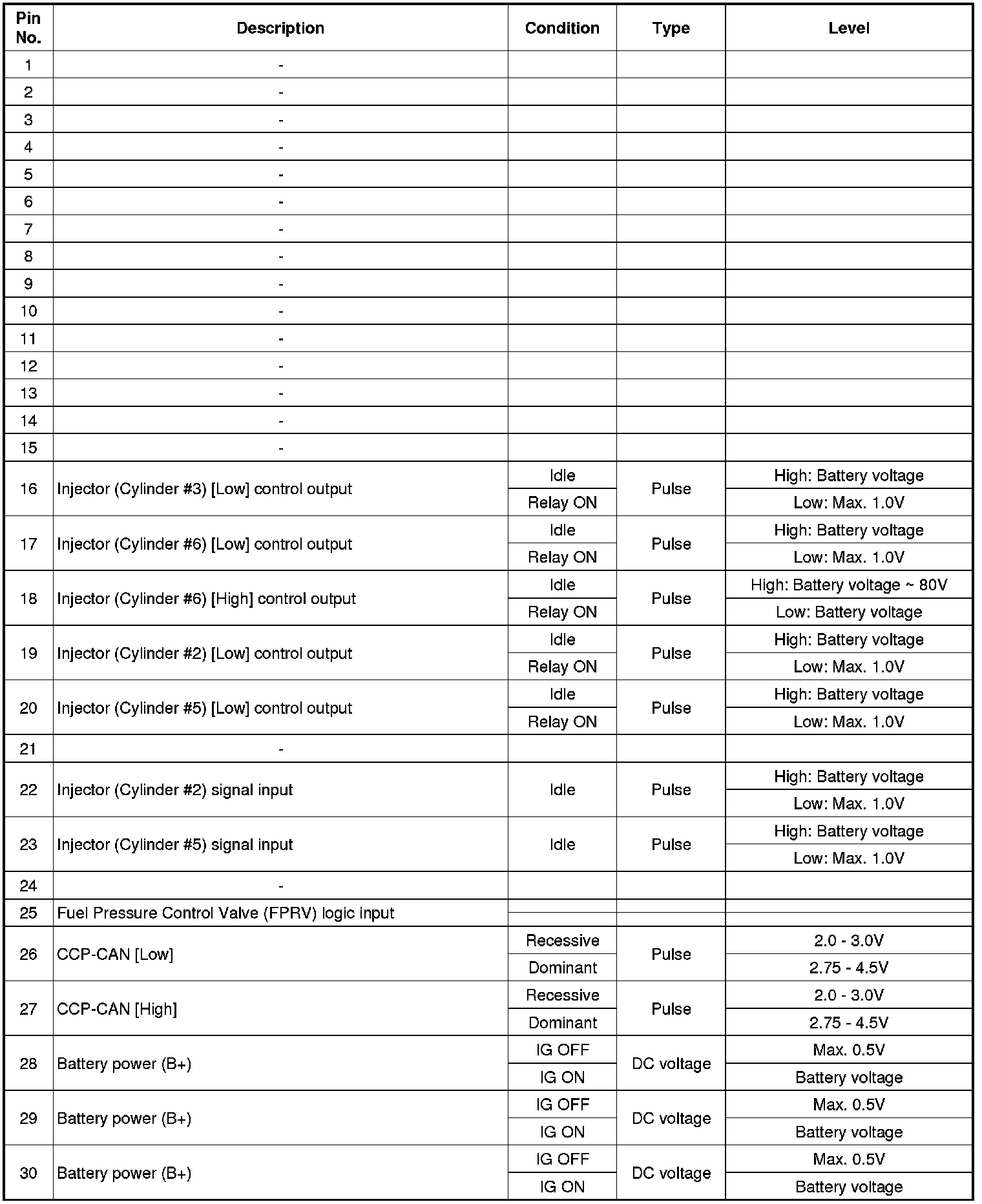

IDB Terminal input/output signal
Connector [CLG-IDB]














Circuit Diagram
