Home >> Hyundai >> 2013 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body Control Module

Body Control Module

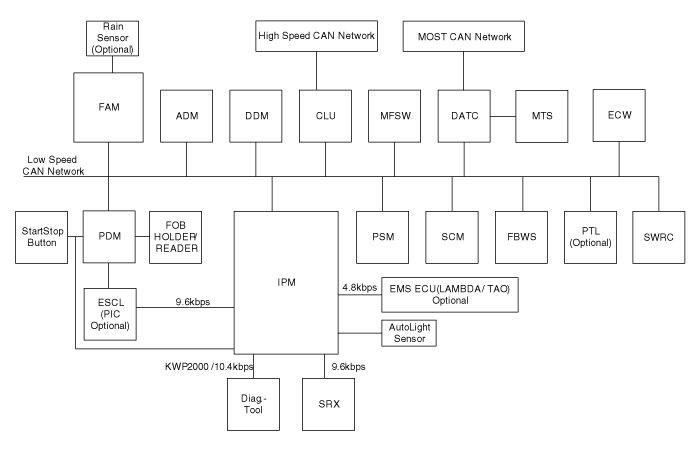

Schematic Diagrams
