Inspection flow

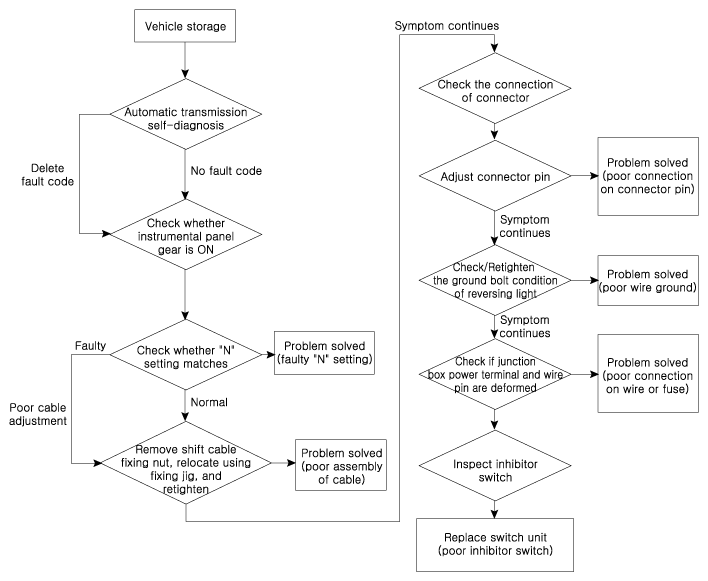

Fig 1: Automatic Transaxle System Inspection Flow Diagram
G10243375Courtesy of HYUNDAI MOTOR AMERICA
