Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

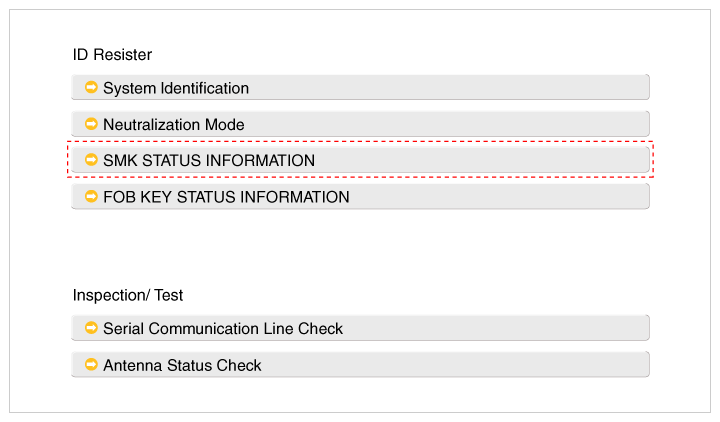

    Fig 1: Screen Display - ID Resister And Inspection/Test
    G10243893Courtesy of HYUNDAI MOTOR AMERICA

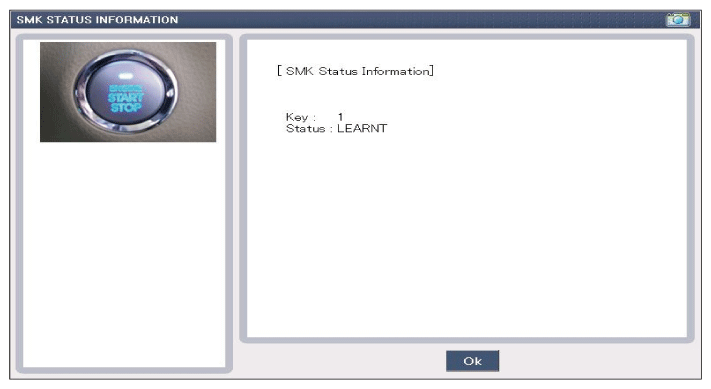

    Fig 2: Screen Display - SMK Status Information
    G10243894Courtesy of HYUNDAI MOTOR AMERICA
