Home >> Hyundai >> 2013 >> Azera V6-3.3L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams

Power Window Motor: Diagrams





Circuit Diagram

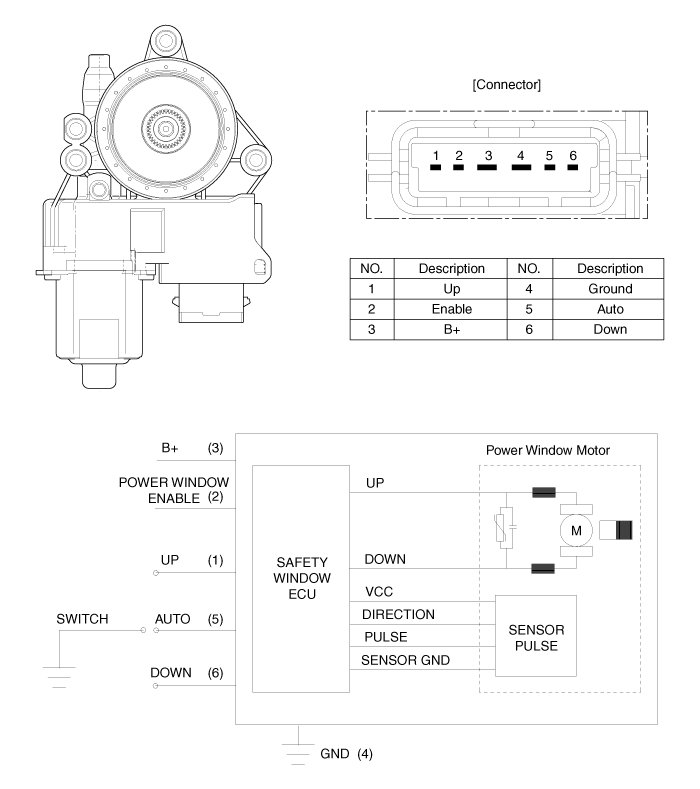

Front Safety Window

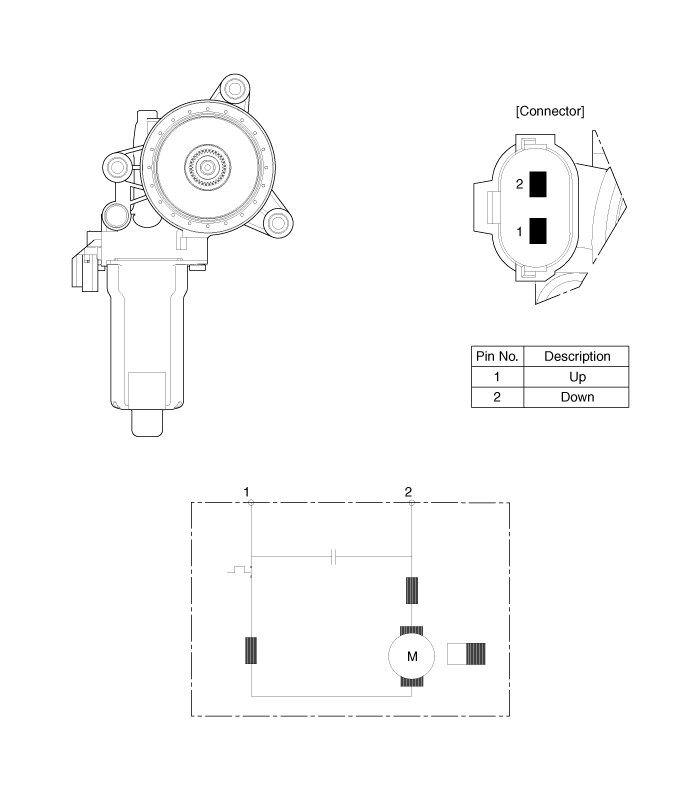

Rear Window
