Restraints and Safety Systems: Diagrams

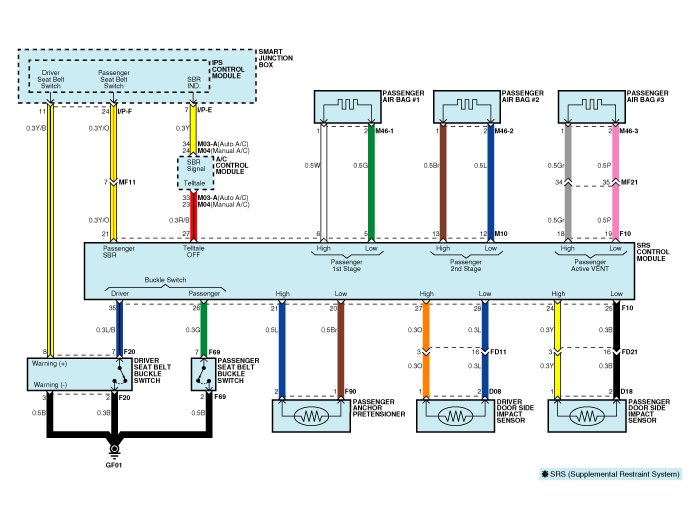

Circuit Diagram (1)

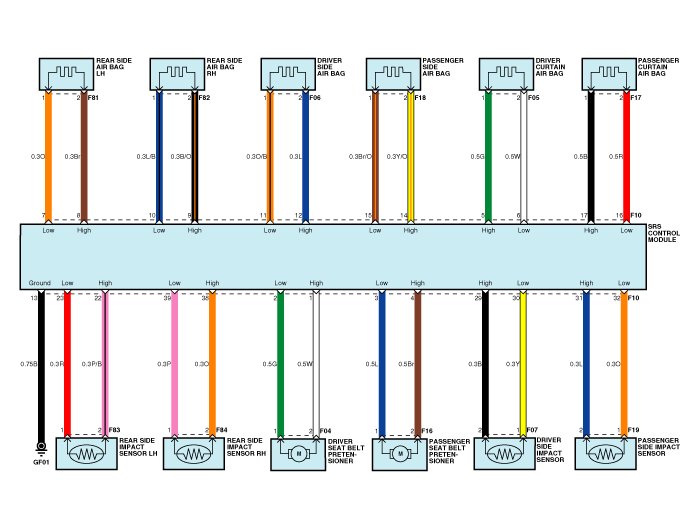

Circuit Diagram (2)

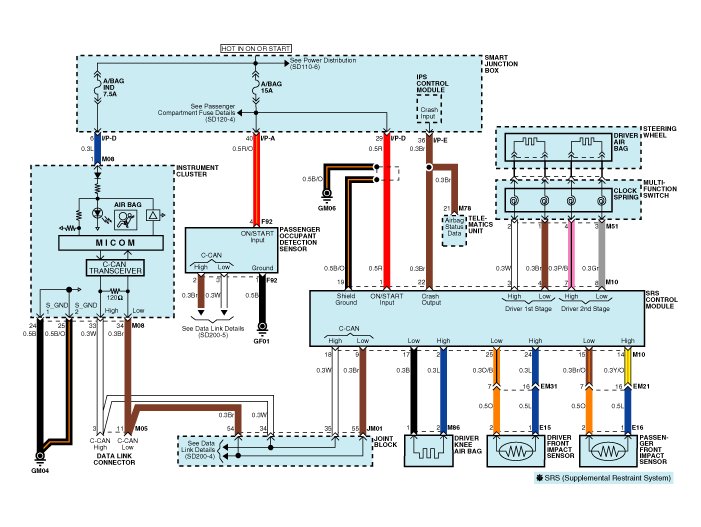

Circuit Diagram (3)

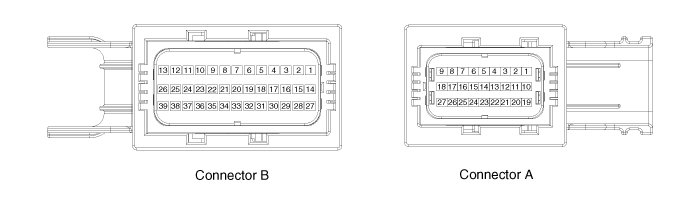

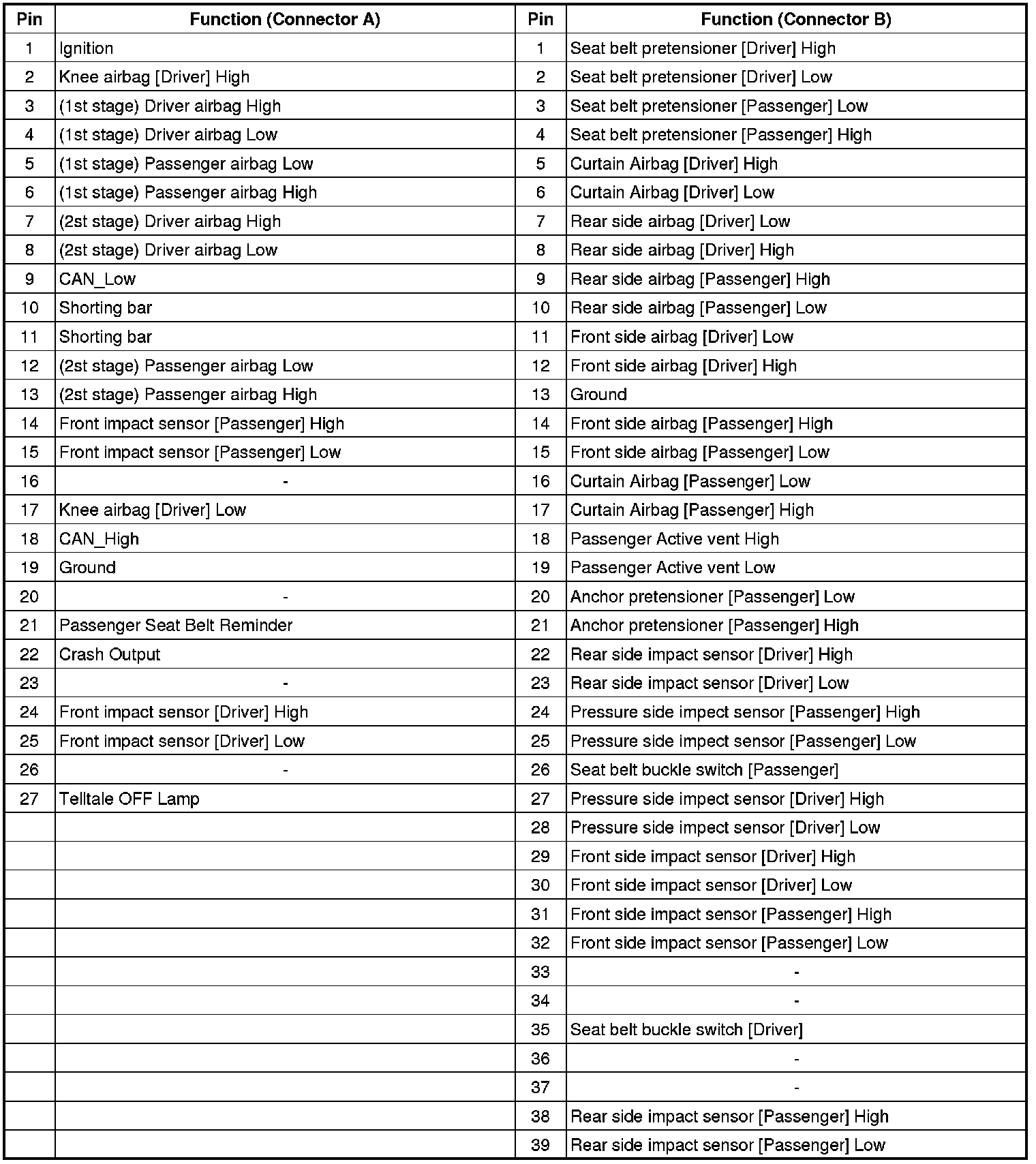

SRSCM Connector terminal
