System Specifications

Specification

Front Suspension

Rear Suspension

Wheel & Tire

Wheel Alignment

Tightening Torques

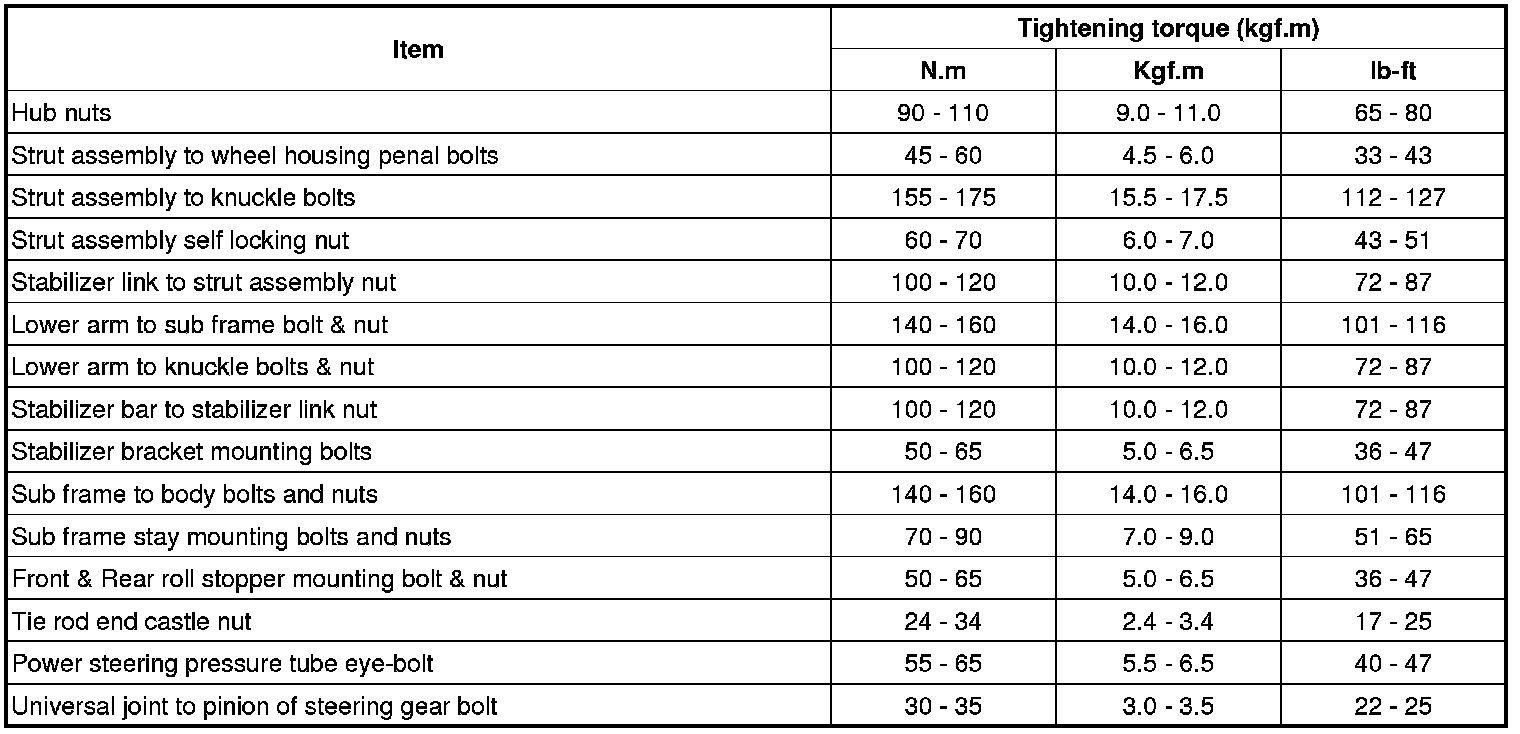

Front Suspension

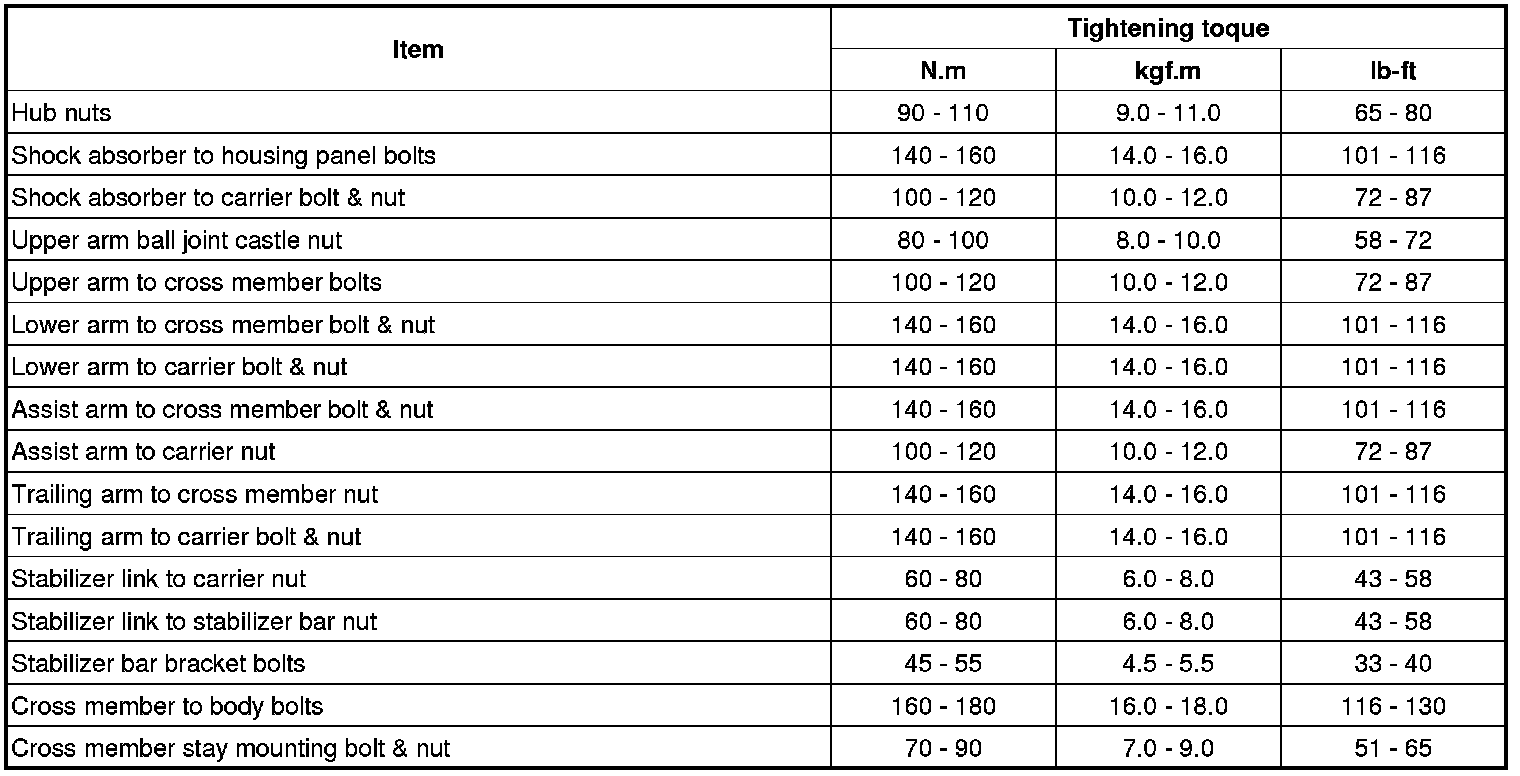

Rear Suspension
