Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

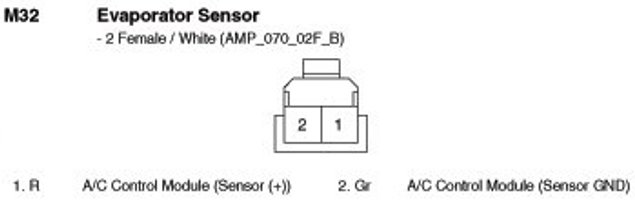

M32 Evaporator Sensor:
