Home >> Hyundai >> 2012 >> Veloster L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> R21-R Rear Parking Assist Sensor RH

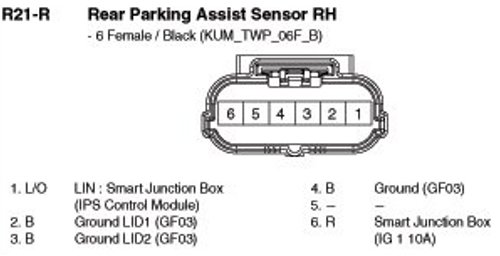

R21-R Rear Parking Assist Sensor RH

R21-R Rear Parking Assist Sensor RH:
