Home >> Hyundai >> 2012 >> Veloster L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M04 Start Stop Button Switch

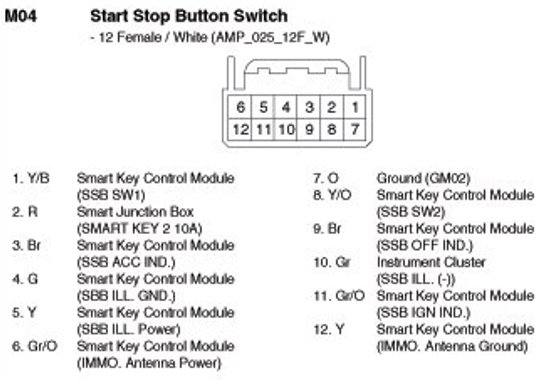

M04 Start Stop Button Switch

M04 Start Stop Button Switch:
