Neutral Start Relay: Locations
Fuse & Relay Information

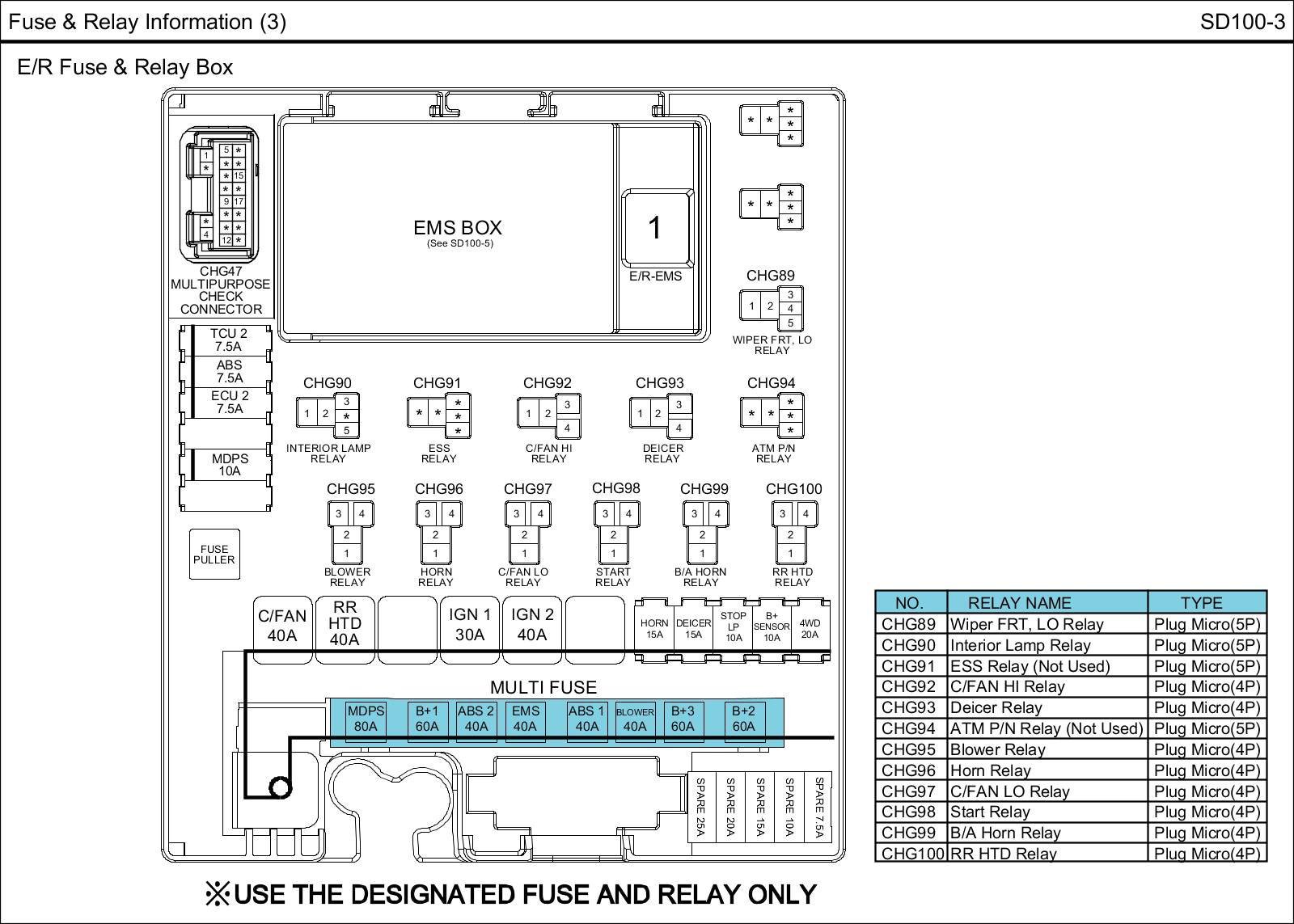

E/R Fuse & Relay Box View:

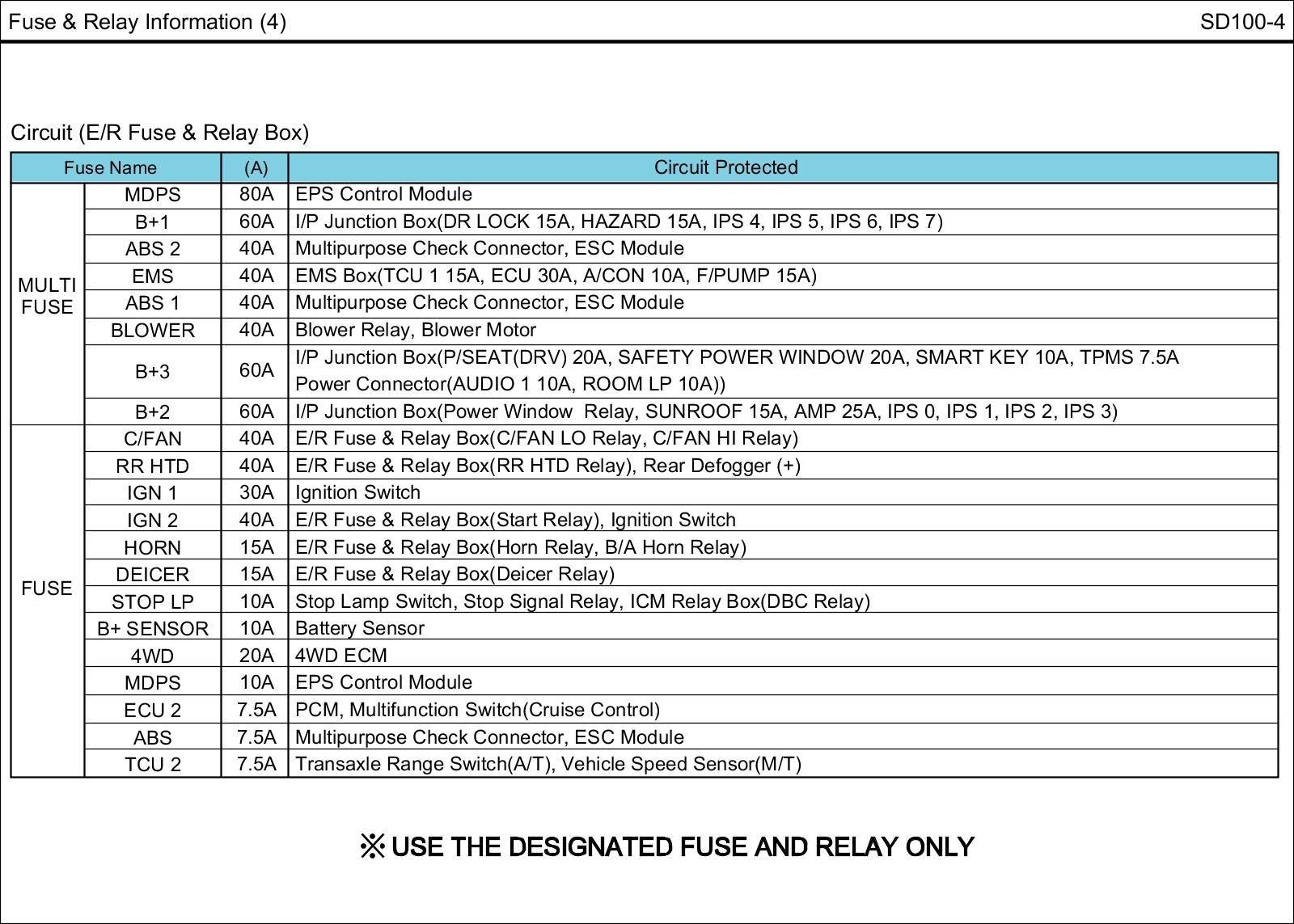

E/R Fuse & Relay Box Circuit Details:
