Cylinder Head

Cylinder Head

Install cylinder head bolts.

A. Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.

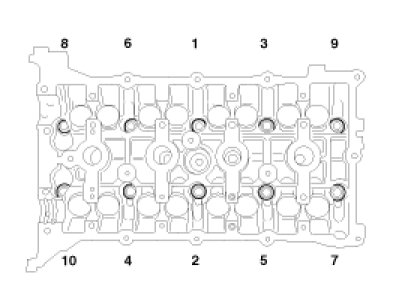

B. Using hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque 32.4 - 36.3 Nm (3.3 - 3.7 kgf.m, 23.9 - 26.8 lb-ft) + (90 - 95°) + (90 - 95°)






NOTE: Always use new cylinder head bolt.

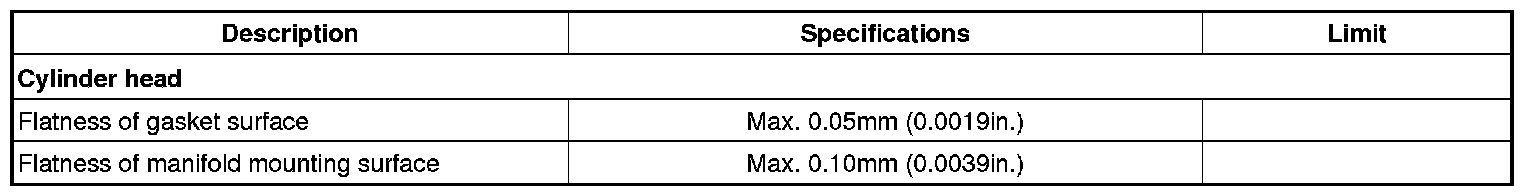

Surface Variation
