Fuel Pressure: Specifications

Fuel Pressure Test

Start the engine and measure the fuel pressure at idle.

Fuel Pressure 324 - 363 kPa (3.3 - 3.7 kgf/cm2, 46.9 - 52.6 psi)

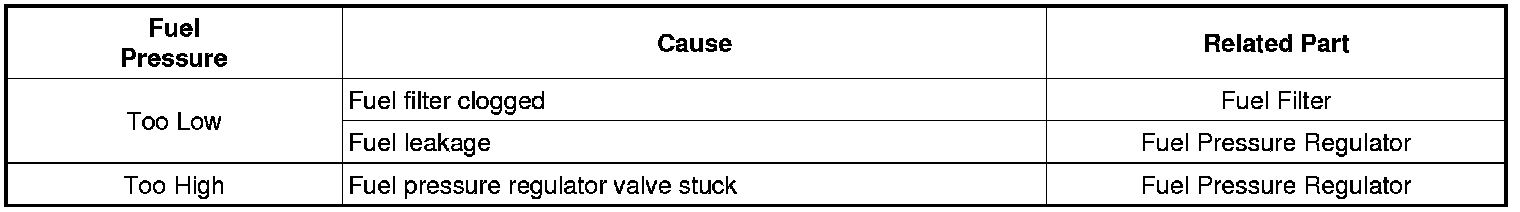

NOTE: If the fuel pressure differs from the standard value, repair or replace the related part .
