Hyundai
>>
2012
>>
Tucson AWD L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
Fuse & Relay Information
Fuse & Relay Information
Fuse & Relay Information

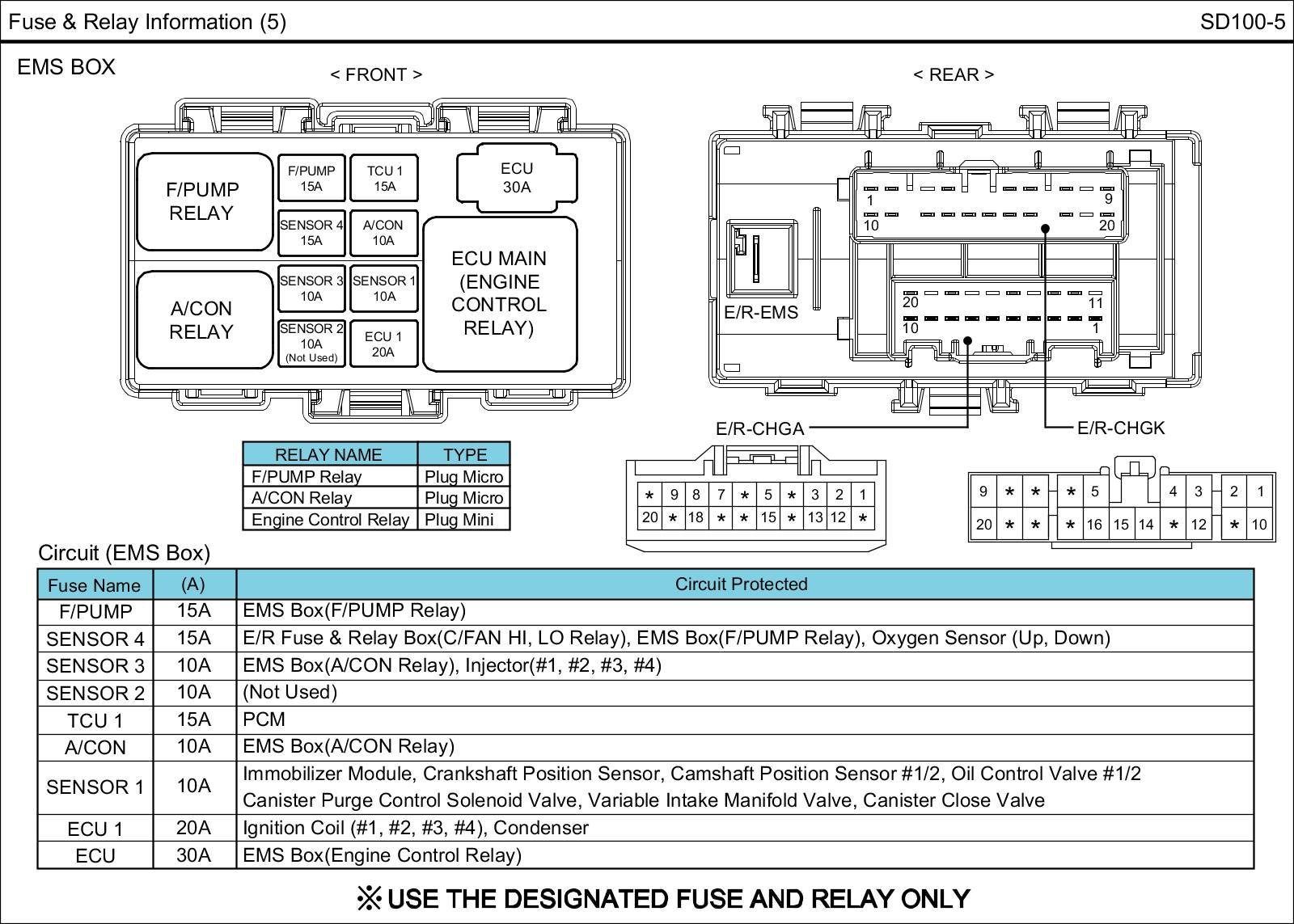

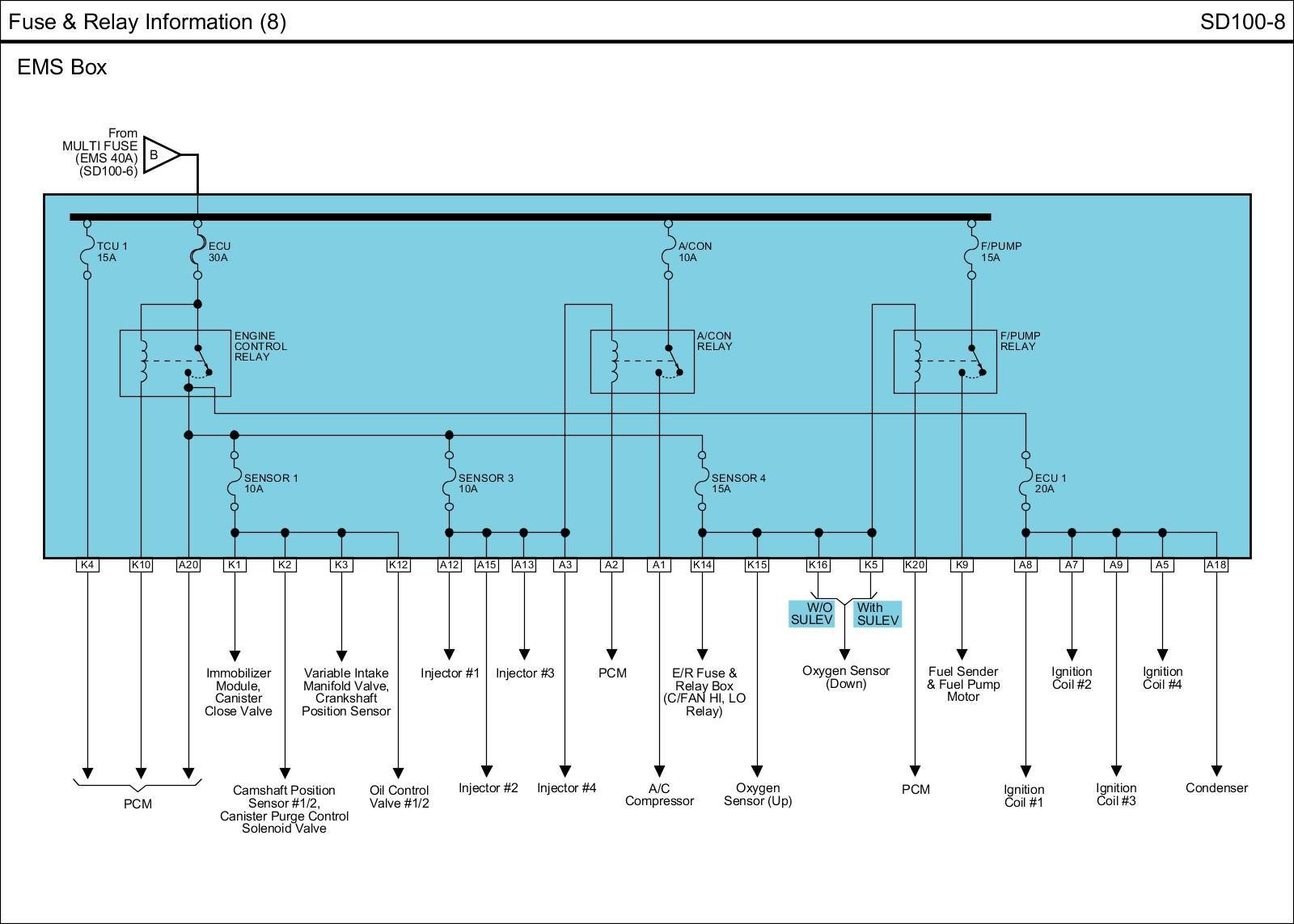

EMS Box:
EMS Box View:
