Home >> Hyundai >> 2012 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Mode Switch, A/T

Transmission Mode Switch, A/T

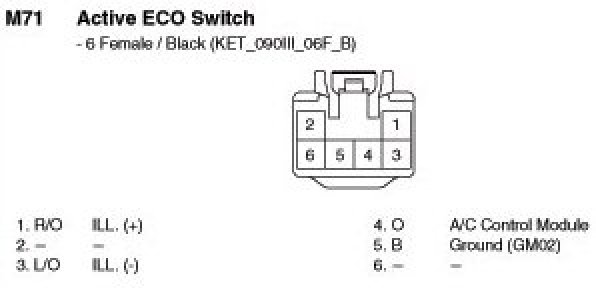

M71 Active ECO Switch:
