Home >> Hyundai >> 2012 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> Driver Safety Power Window Module (With Safety)

Driver Safety Power Window Module (With Safety)

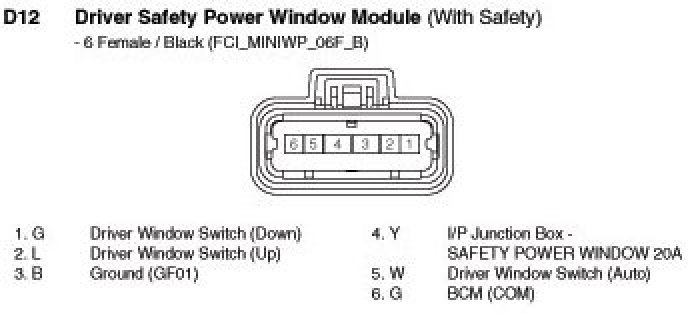

D12 Driver Safety Power Window Module (With Safety):
