Home >> Hyundai >> 2012 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector

Multiple Junction Connector

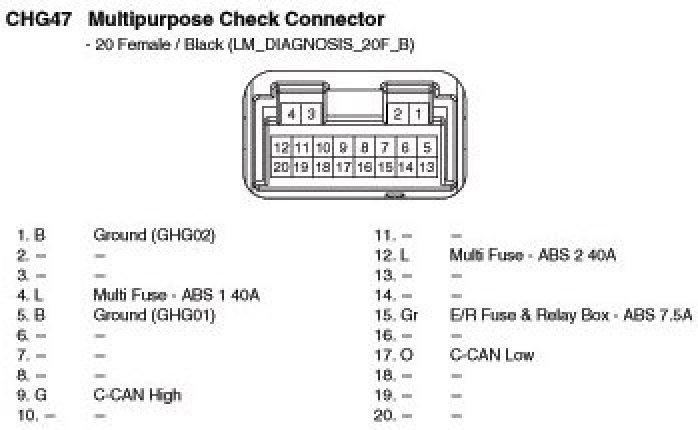

CHG47 Multipurpose Check Connector:
