Home >> Hyundai >> 2012 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch >> Multifunction Switch (Wiper)

Multifunction Switch (Wiper)

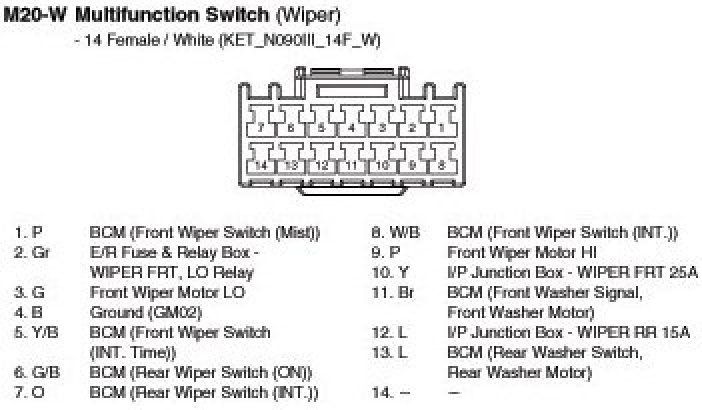

M20-W Multifunction Switch (Wiper):
