System Diagram

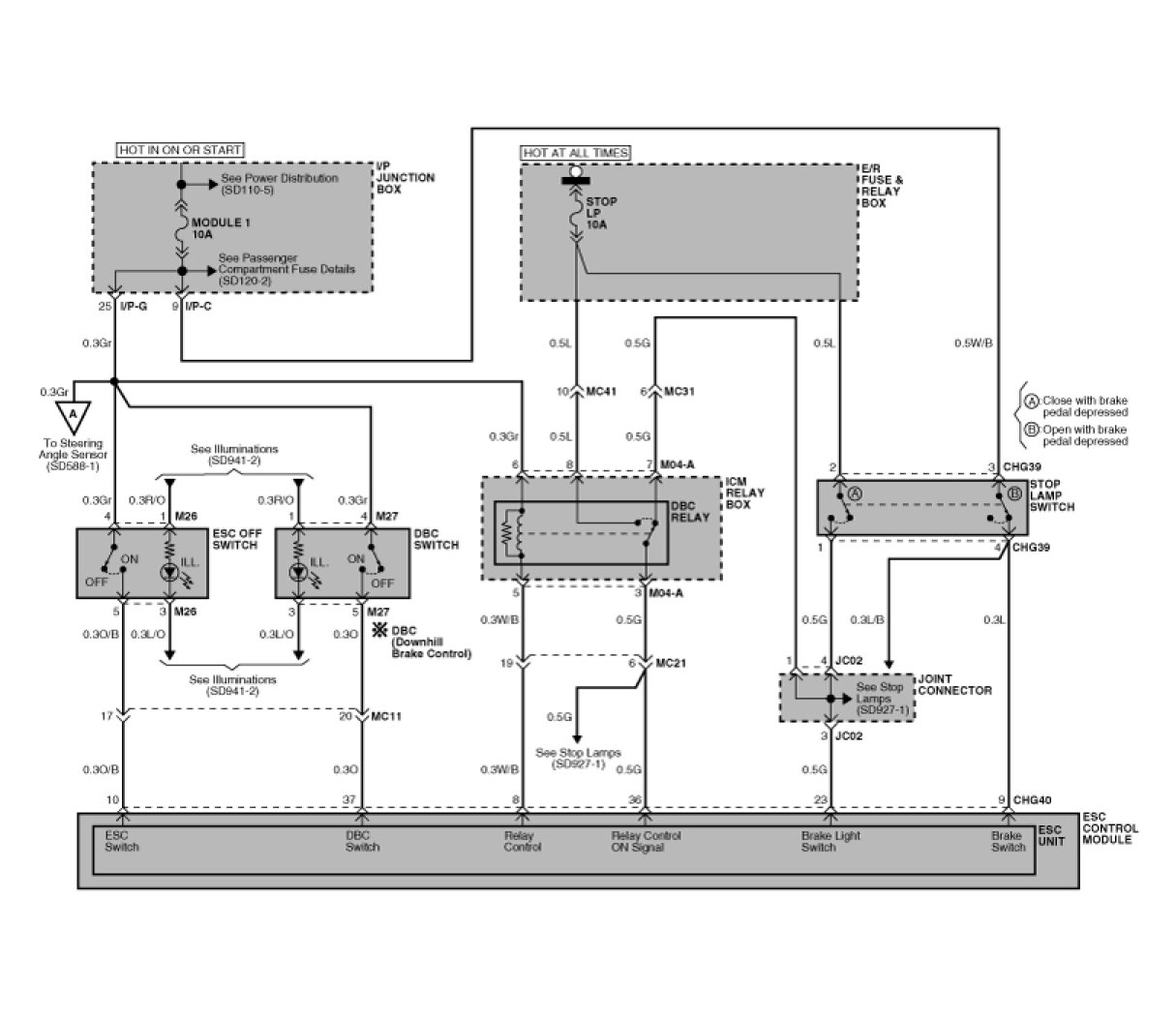

Circuit Diagram - ESC(1)

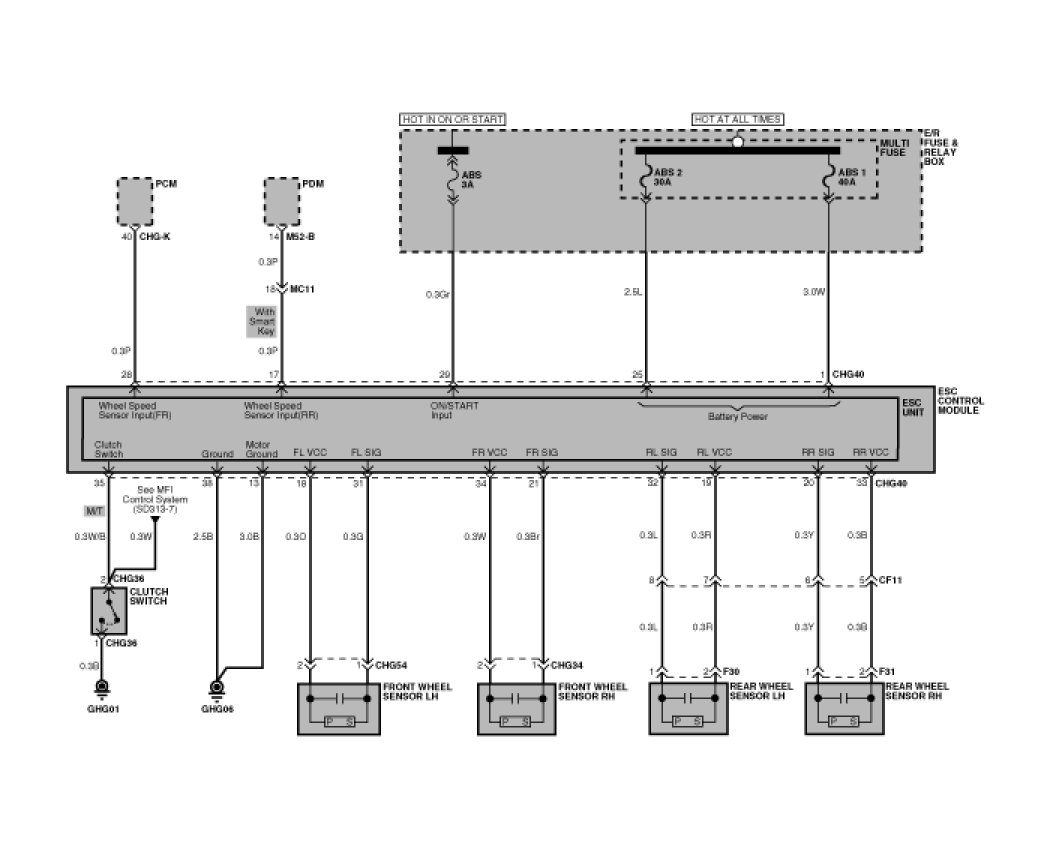

Circuit Diagram - ESC(2)

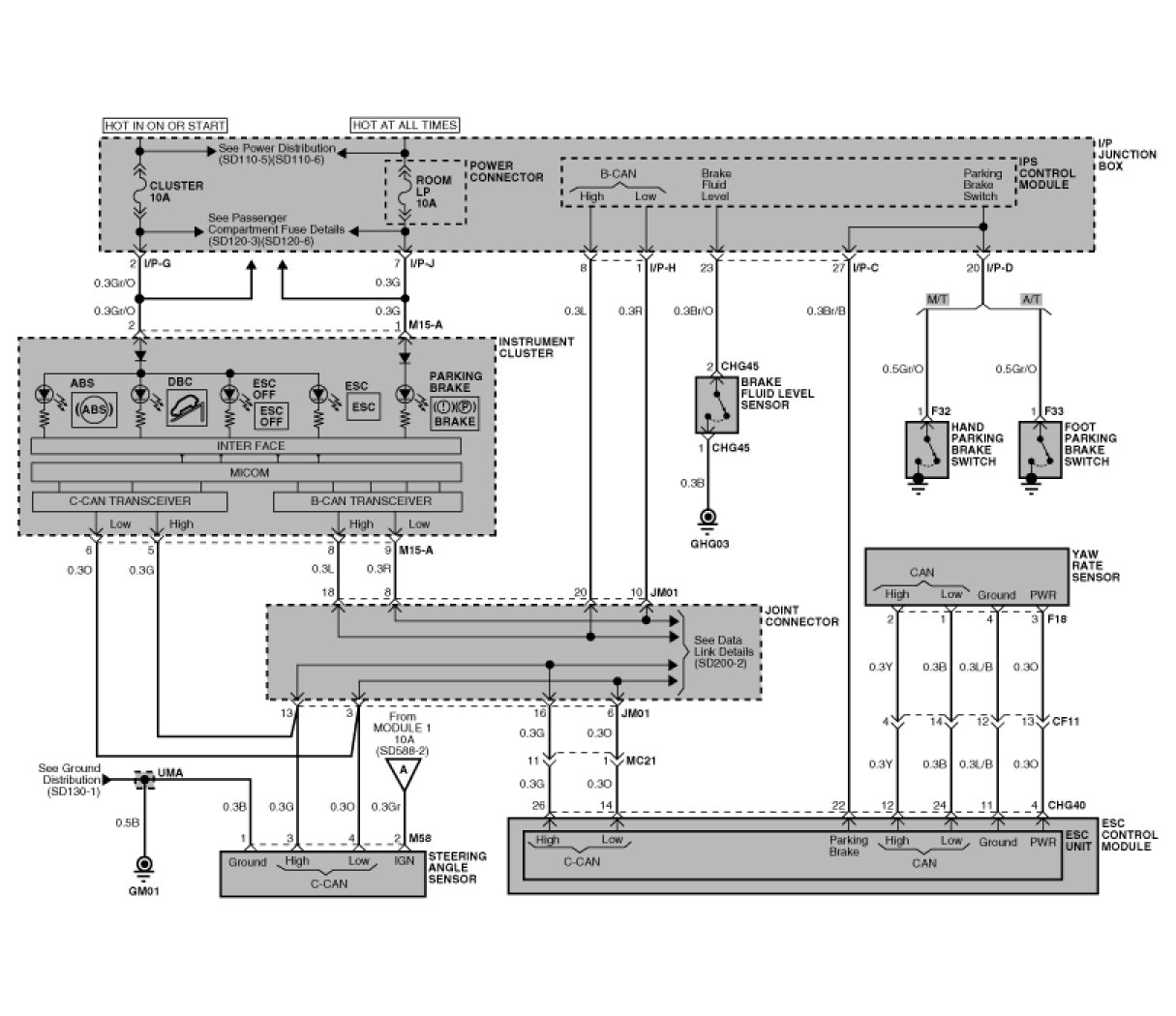

Circuit Diagram - ESC(3)

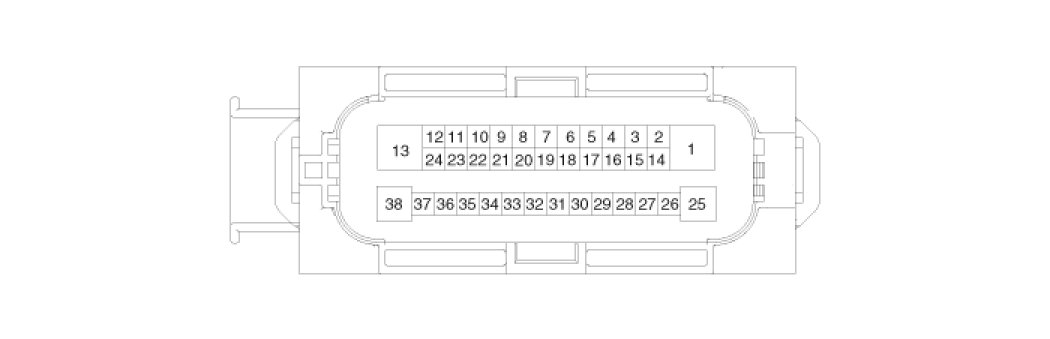

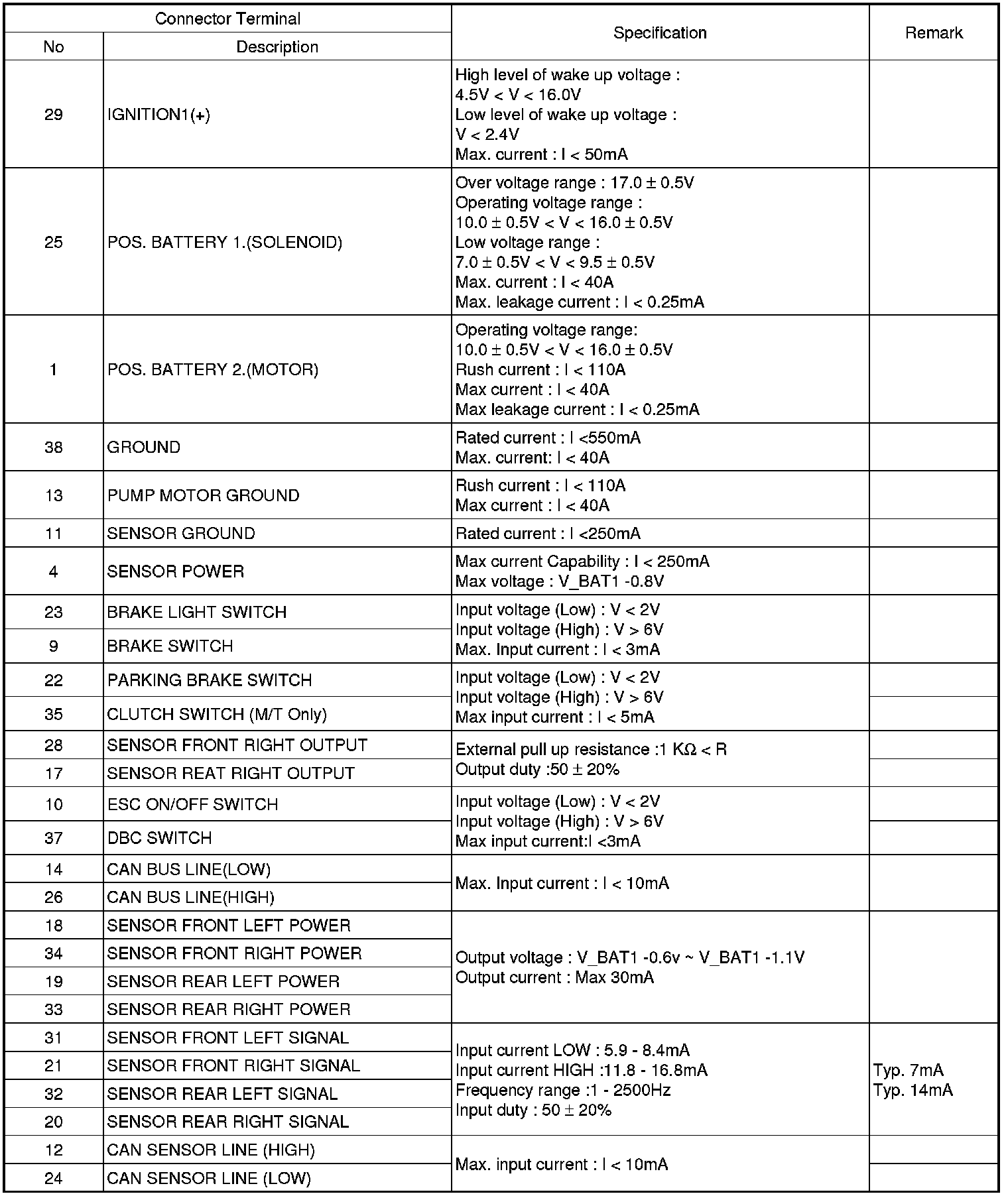

ESC connector input/output

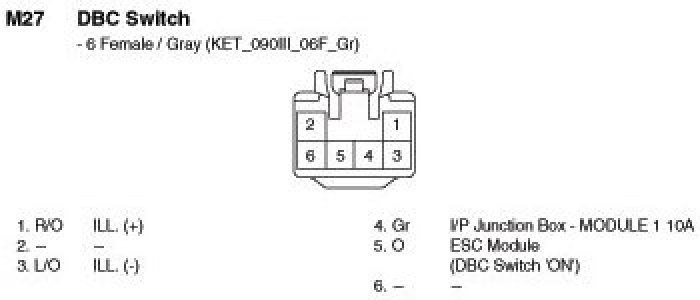

M27 DBC Switch:
