Home >> Hyundai >> 2012 >> Sonata L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

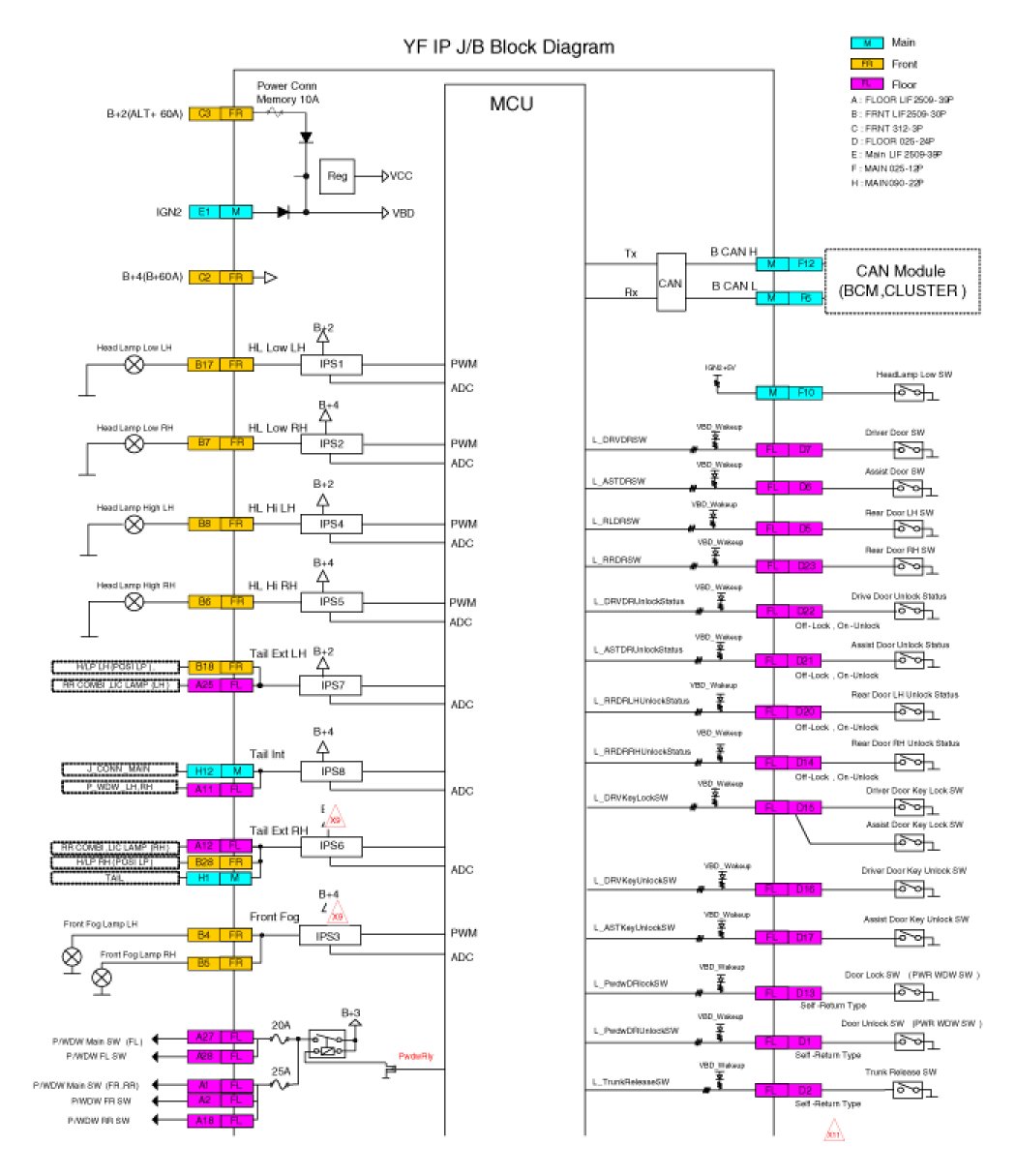

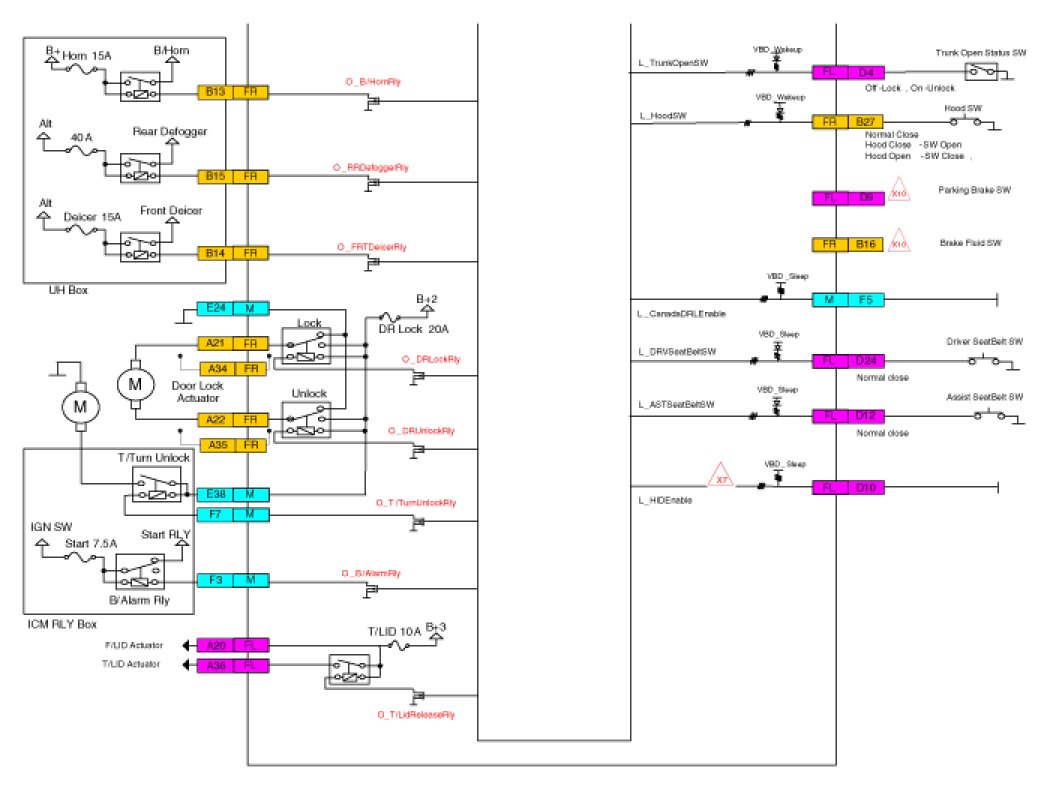

Circuit Diagram
