Home >> Hyundai >> 2012 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Clock

Clock

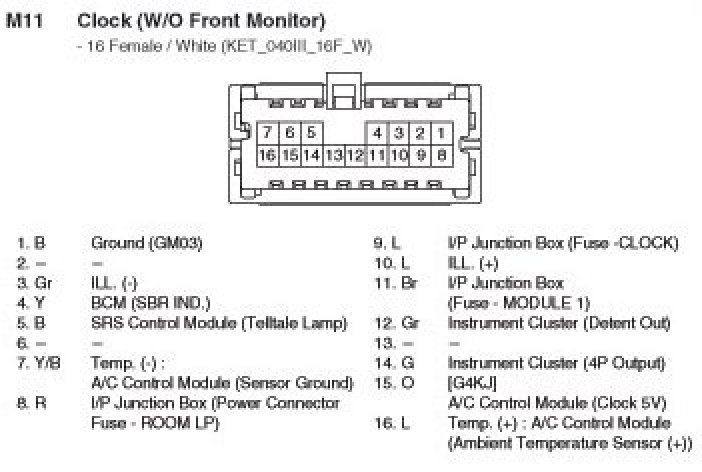

M11 Clock (W/O Front Monitor):
