Home >> Hyundai >> 2012 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessory Relay

Accessory Relay

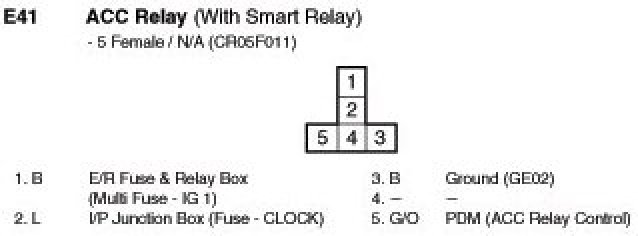

E41 ACC Relay (With Smart Relay):
