Alarm Module: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.

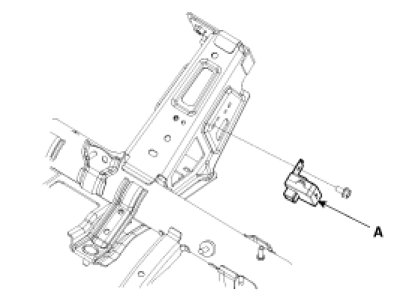

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the bolt.




4. Installation is the reverse of removal procedure.
