Sonata L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
A/C Control Module (Manual A/C, W/O Navigation)
A/C Control Module (Manual A/C, W/O Navigation)

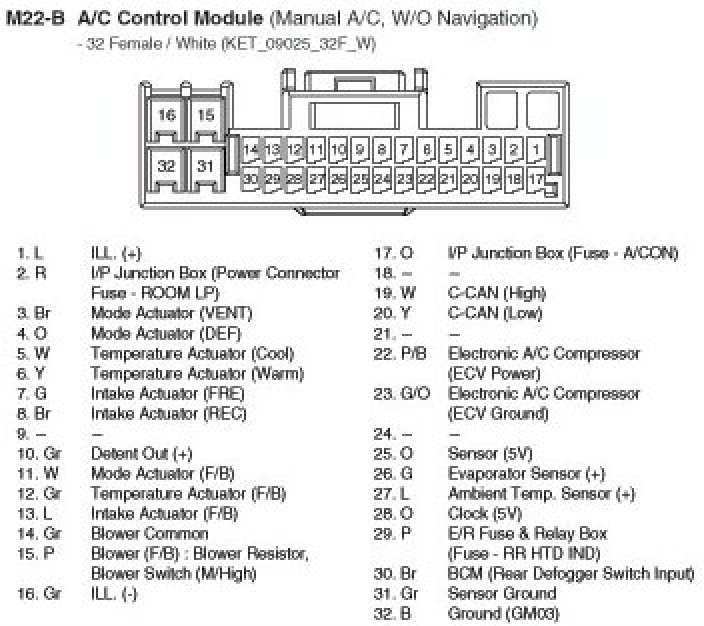

M22-B A/C Control Module (Manual A/C, W/O Navigation):
