Home >> Hyundai >> 2012 >> Santa Fe FWD L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Service and Repair

Power Window Switch: Service and Repair





Components

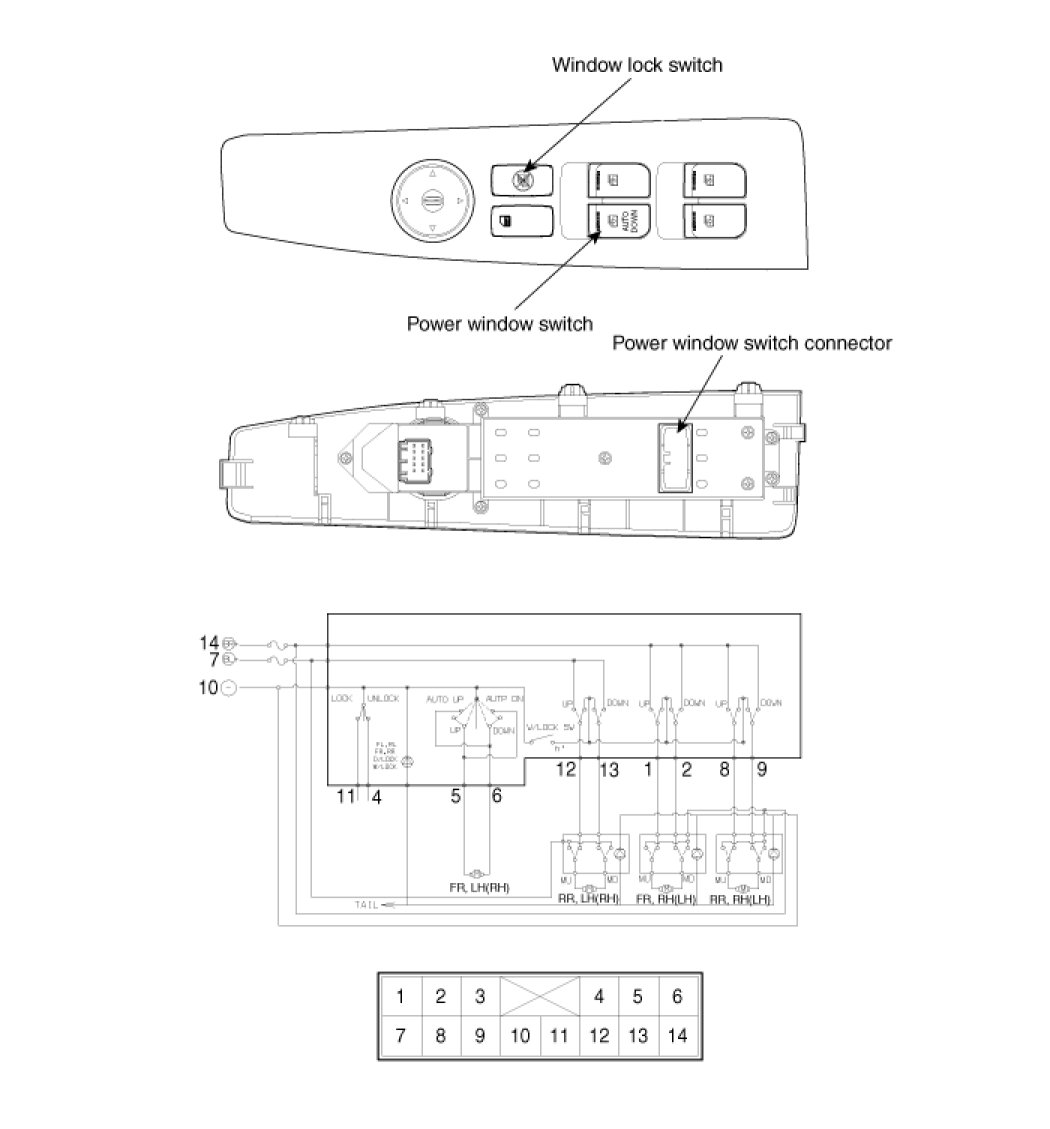

Power Window Main Switch

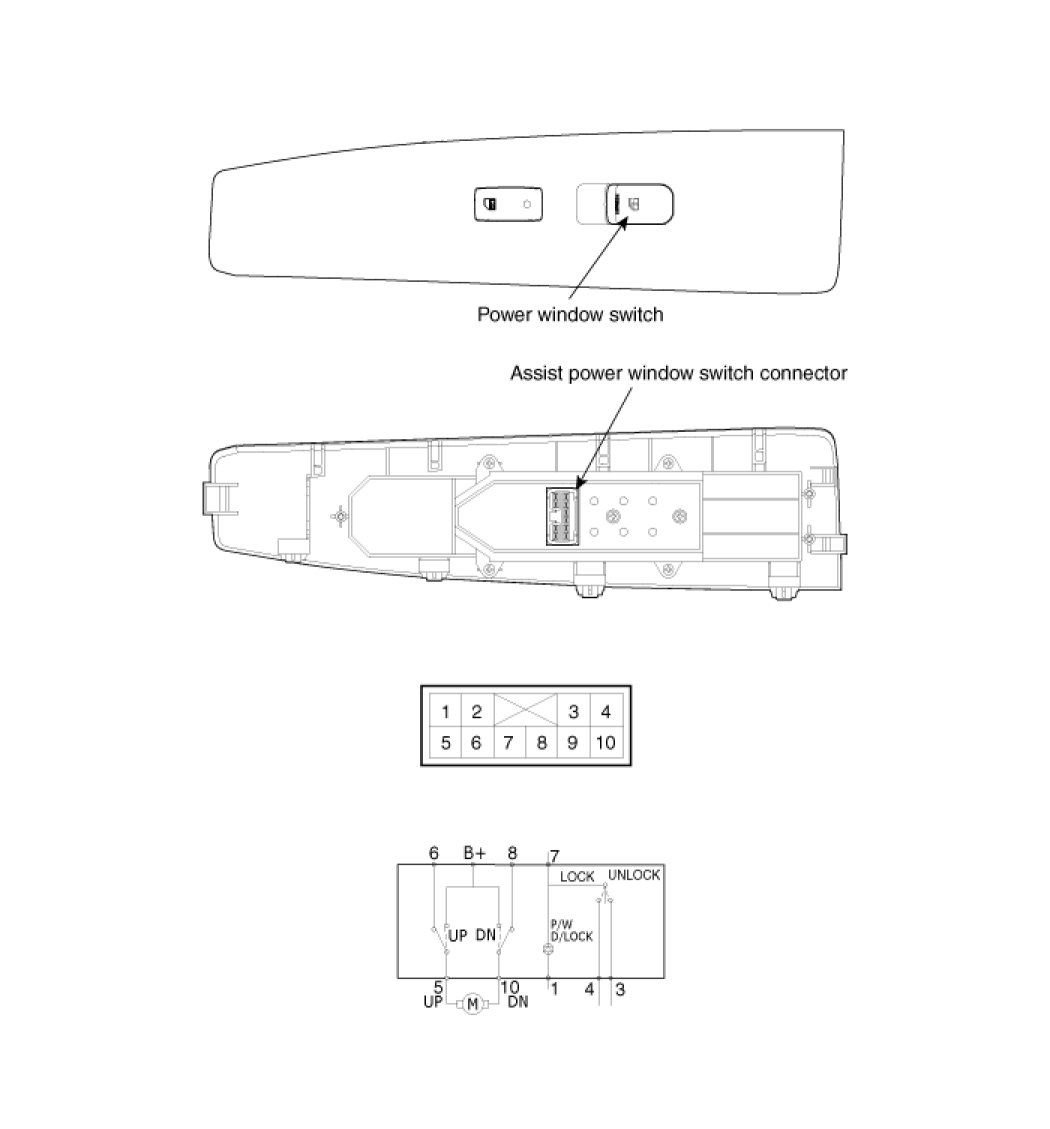

Assist Power Window Switch

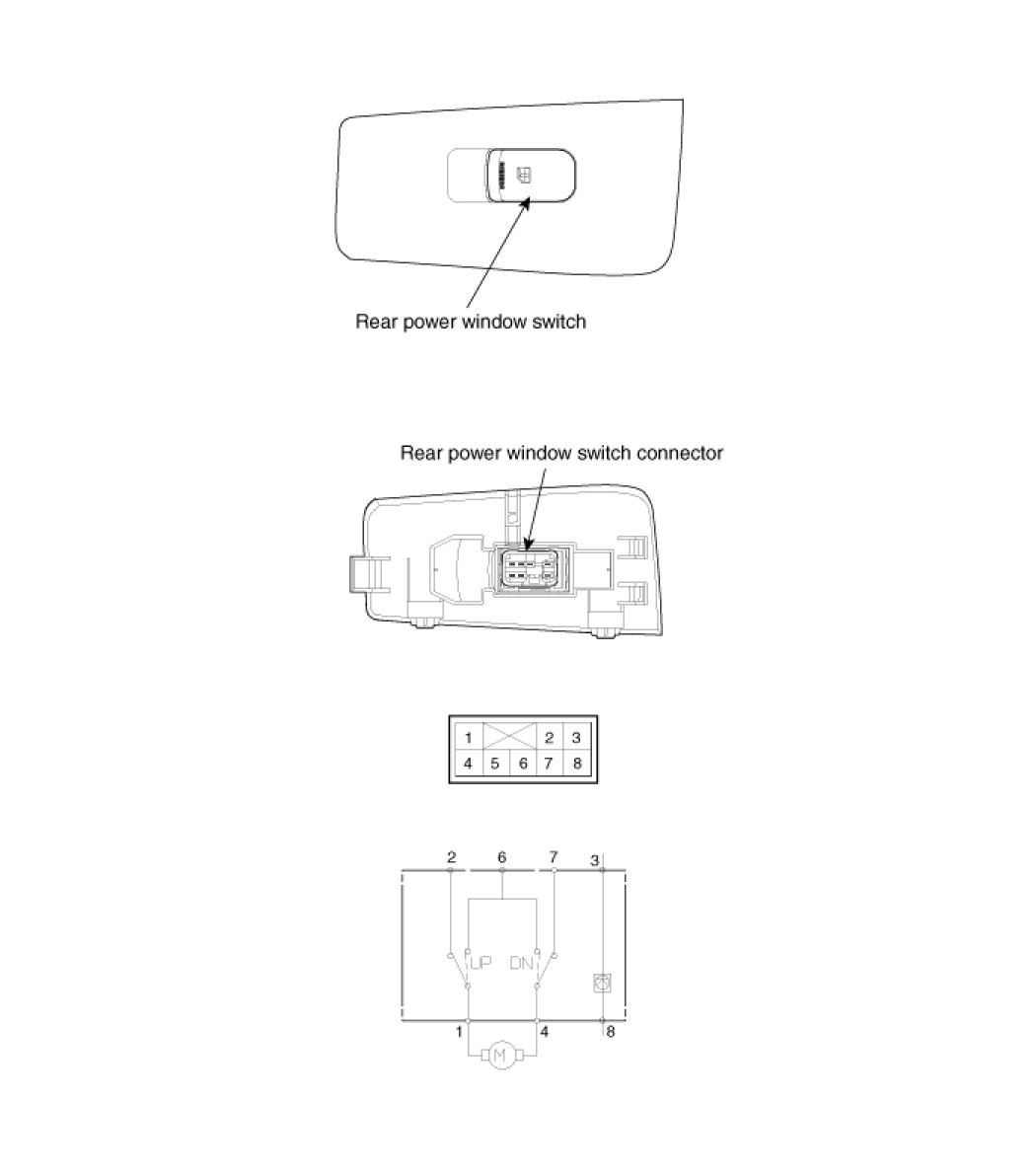

Rear Power Window Switch
