Home >> Hyundai >> 2012 >> Santa Fe AWD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

Fuse & Relay Information

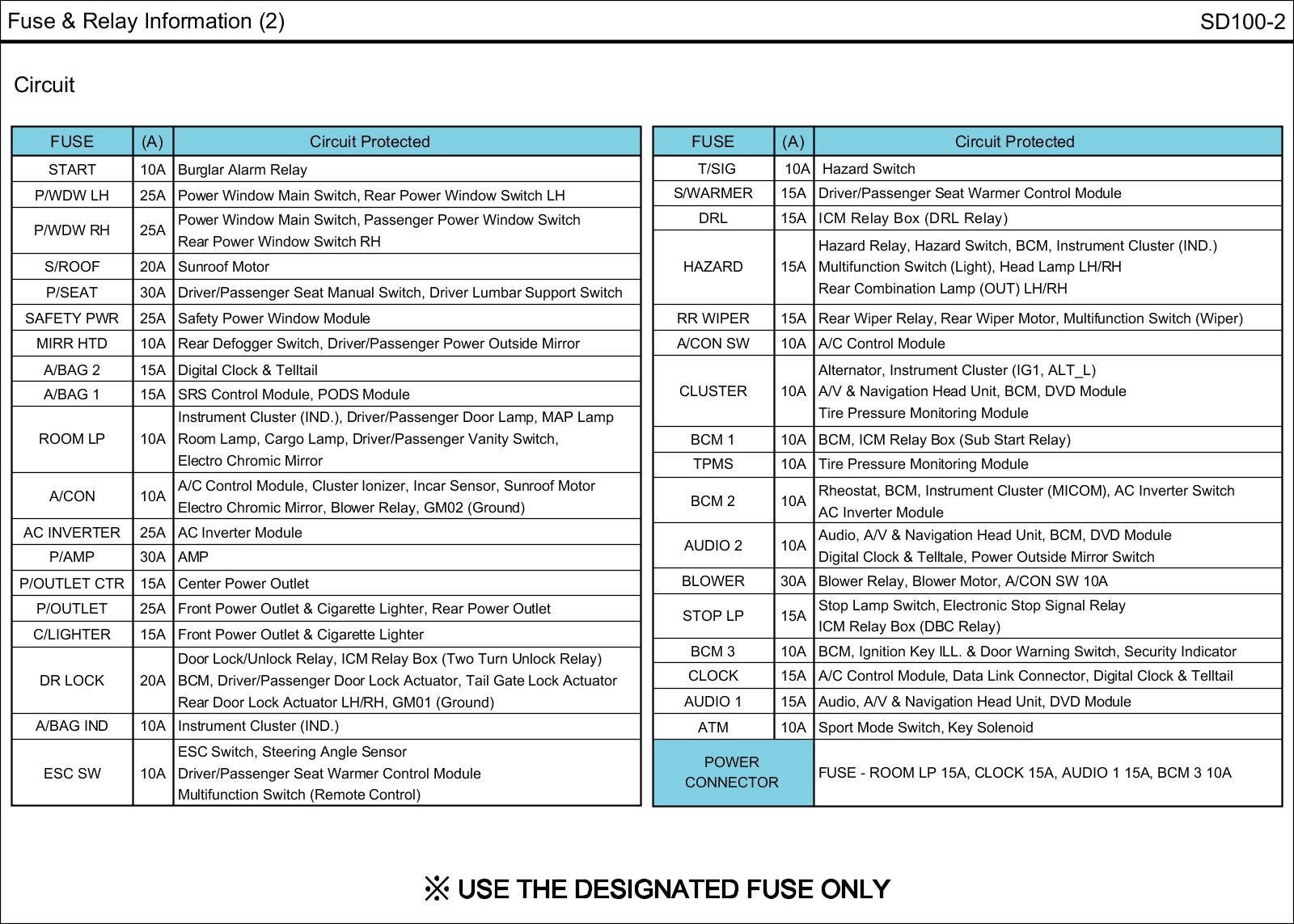

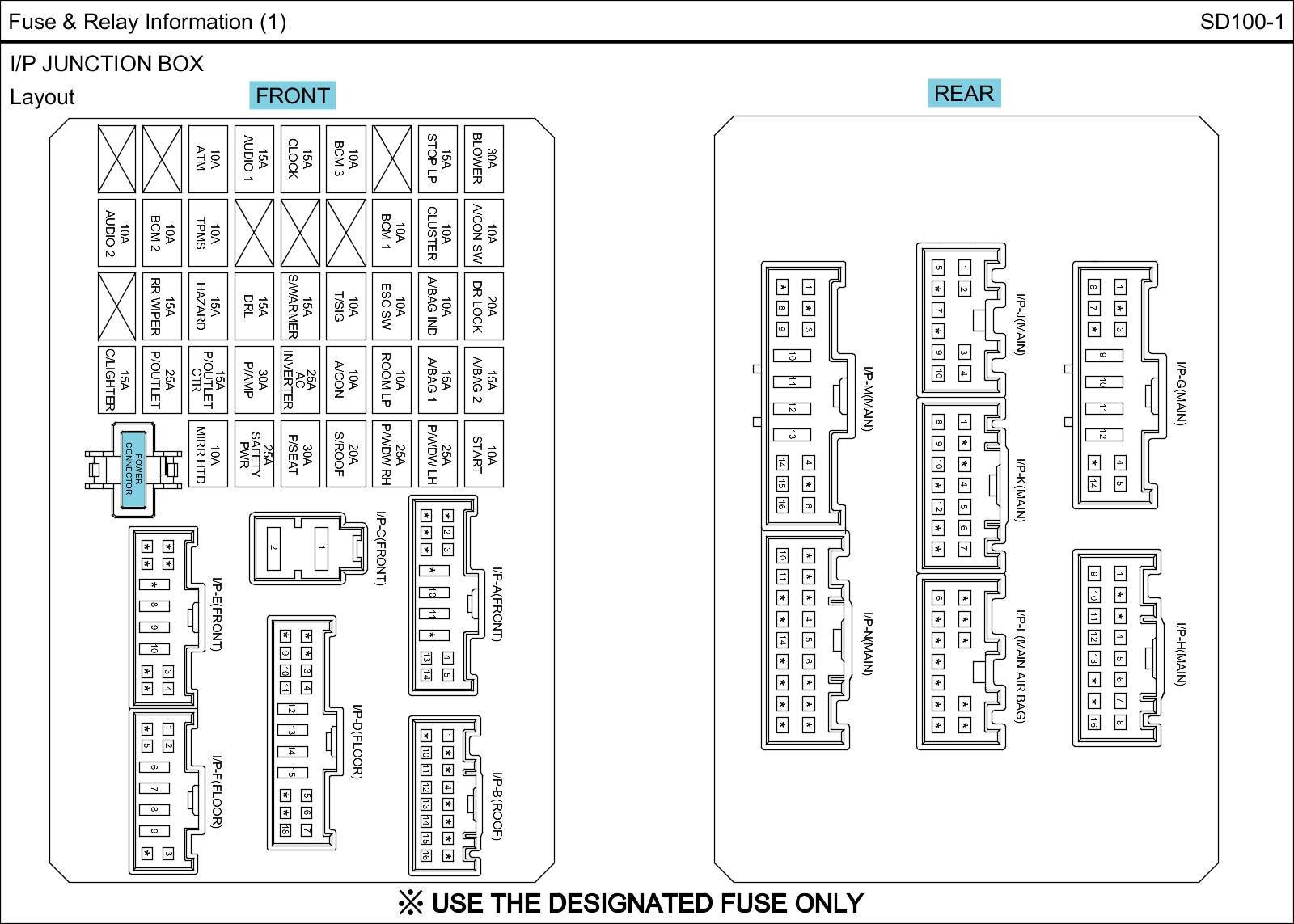

I/P Junction Box View:




I/P Junction Box Circuit Details:




E/R Junction Box View:




E/R Junction Box Circuit Details:

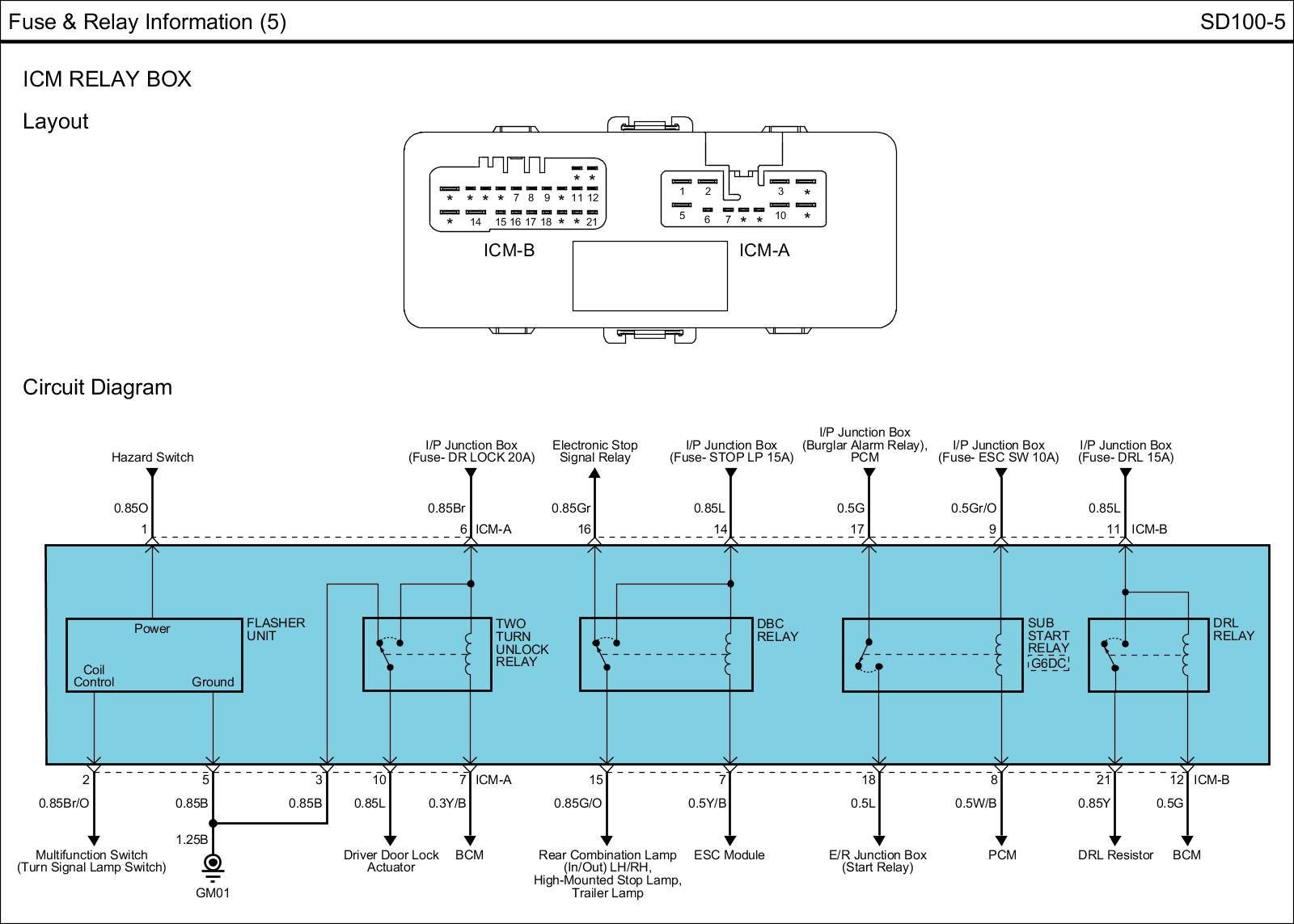

ICM Relay Box View:
