Axle Shaft Assembly

Specifications

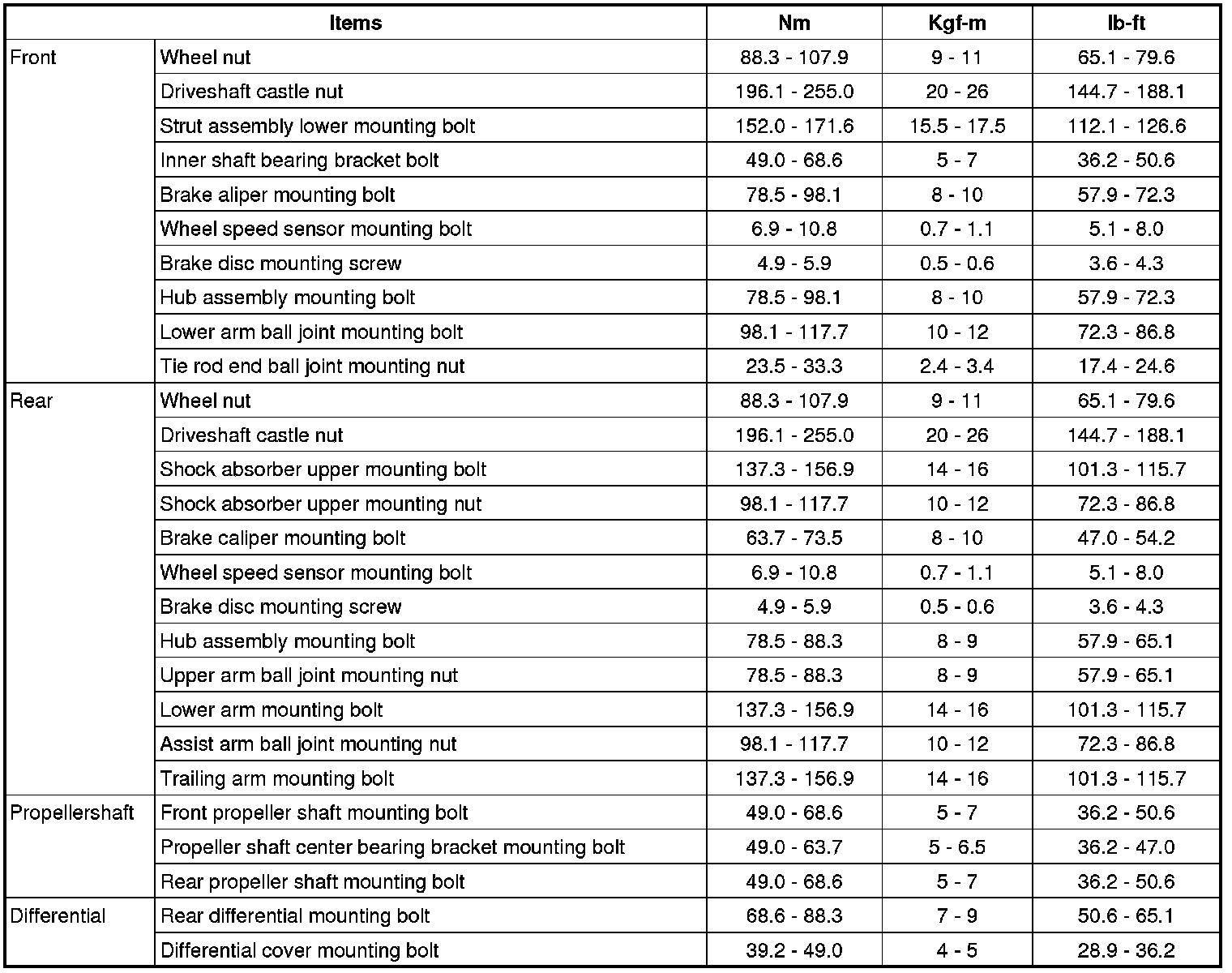

Tightening Torques

CAUTION:
Replace self-locking nuts with new ones after removal.

Lubricants
