Repair Procedures

Removal

Media Unit
1. Disconnect the negative (-) battery terminal.

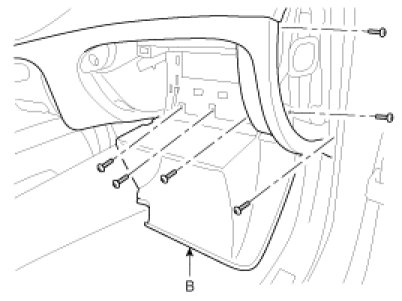

2. Disconnect the pine, then remove the glove box (B).

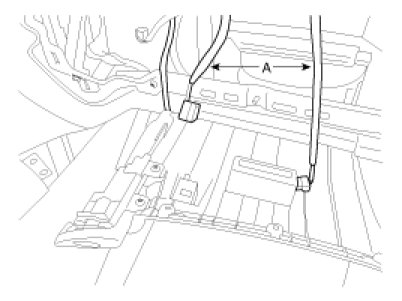

3. Disconnect the connector (A) on the glove box.

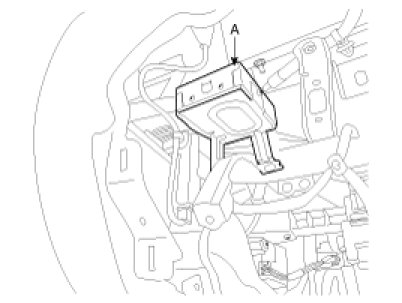

4. Remove the media unit (A) after disconnecting the connectors.






Installation

Media Unit
1. Install the media unit after connecting the connectors.
2. Install the glove box and glove box housing.
3. Connect the negative (-) battery terminal.
