Fuse: Locations

Fuse & Relay Information

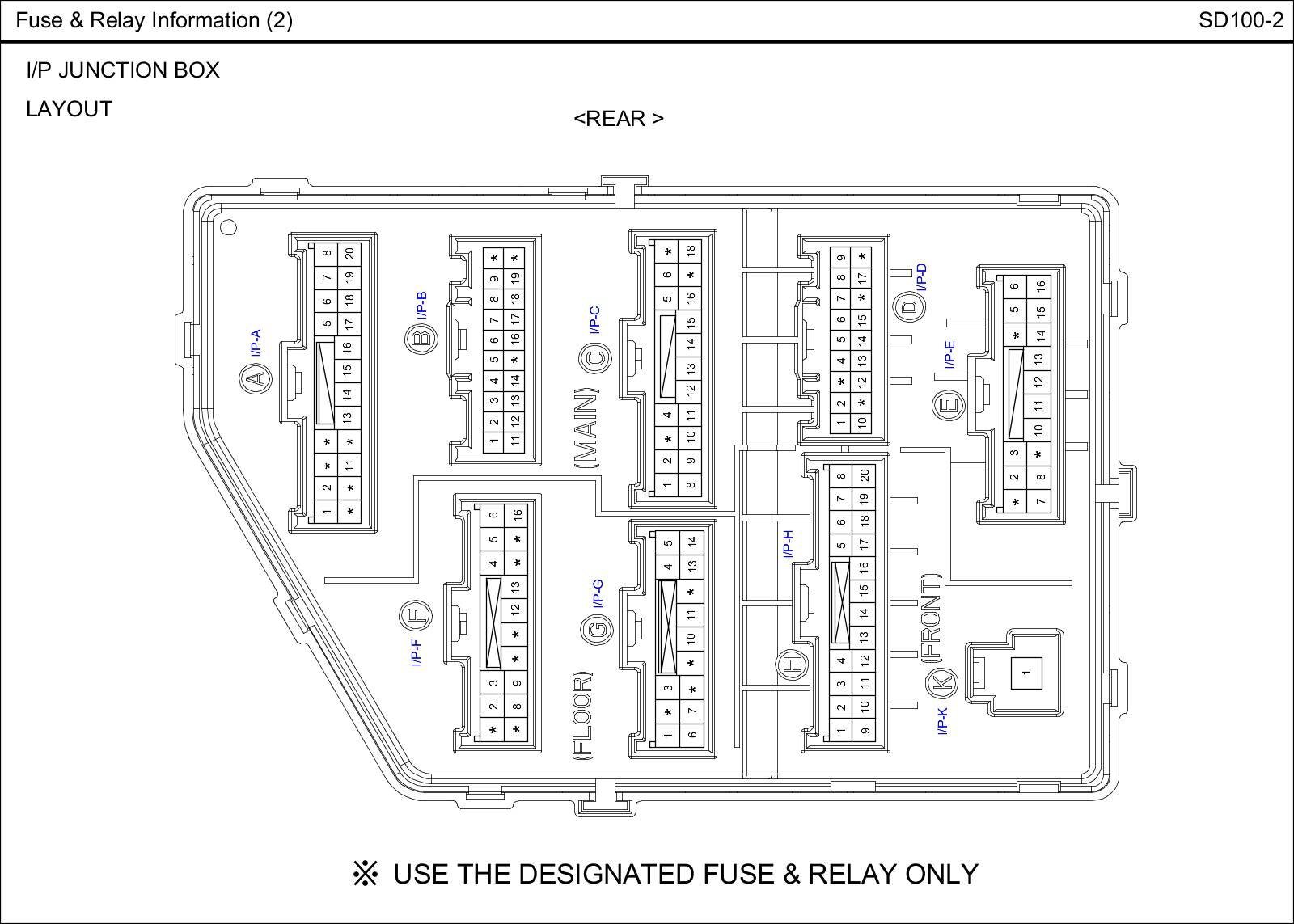

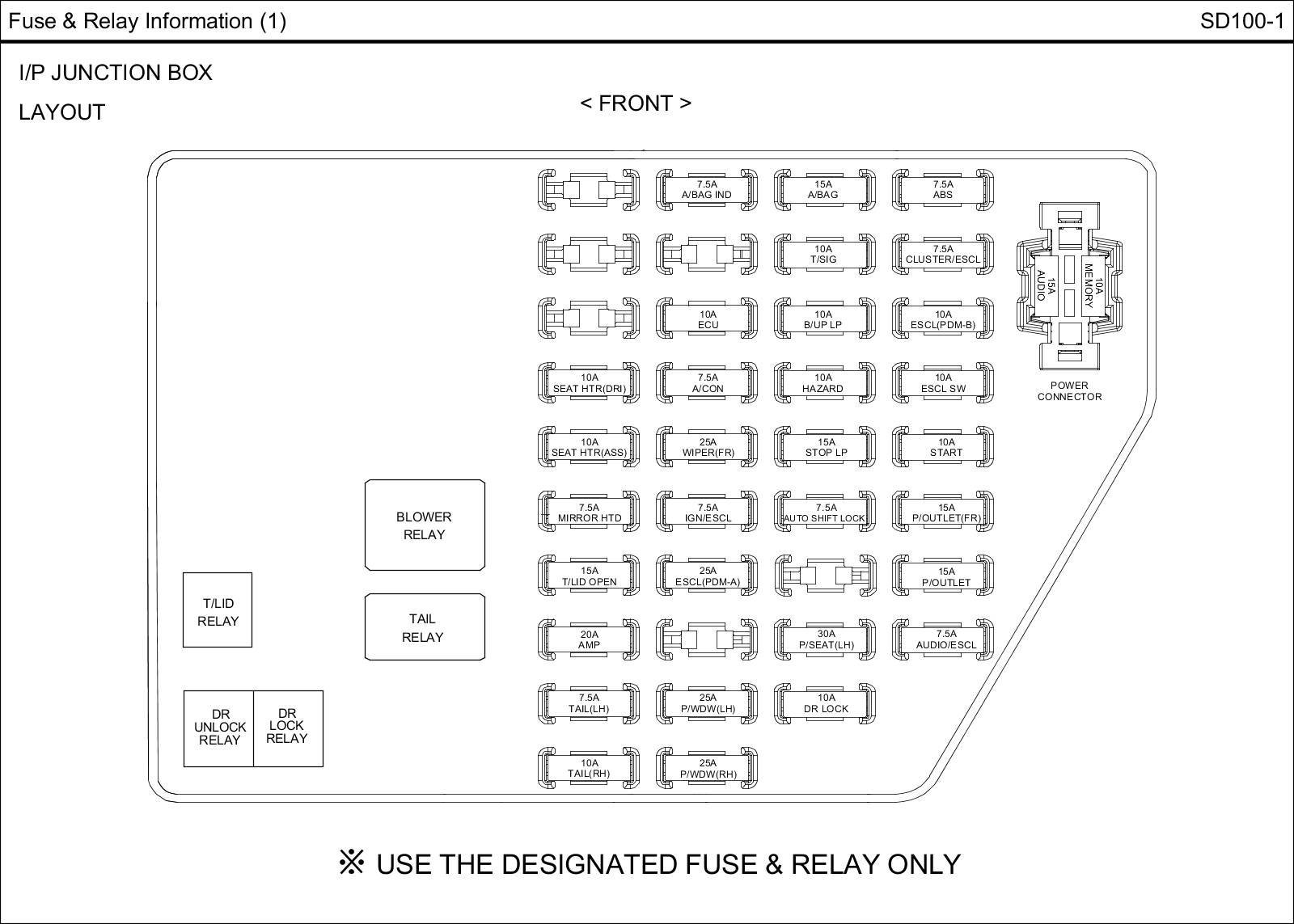

I/P Junction Box View:




I/P Junction Box View:

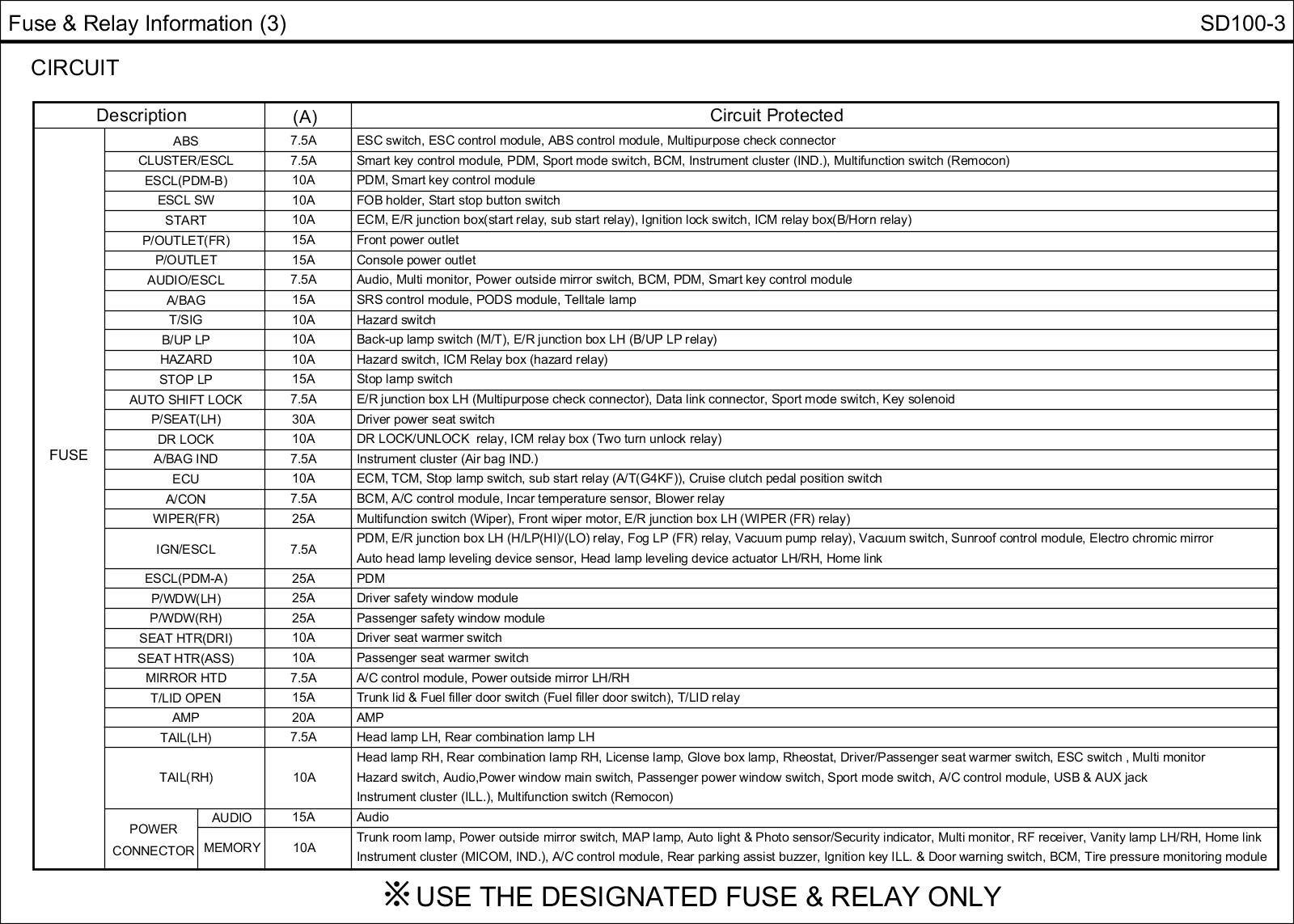

I/P Junction Box Circuit Details:

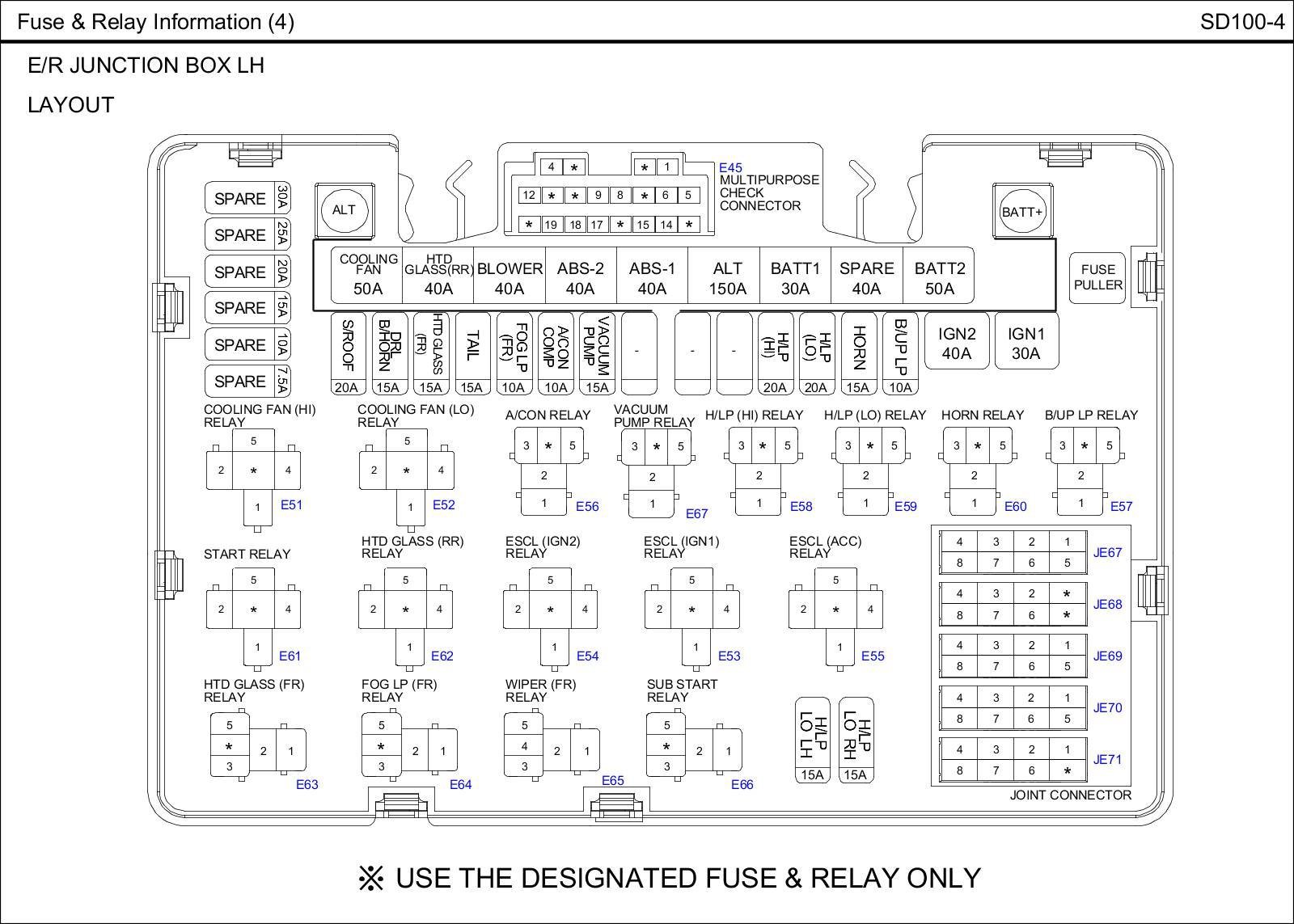

E/R Junction Box LH View:

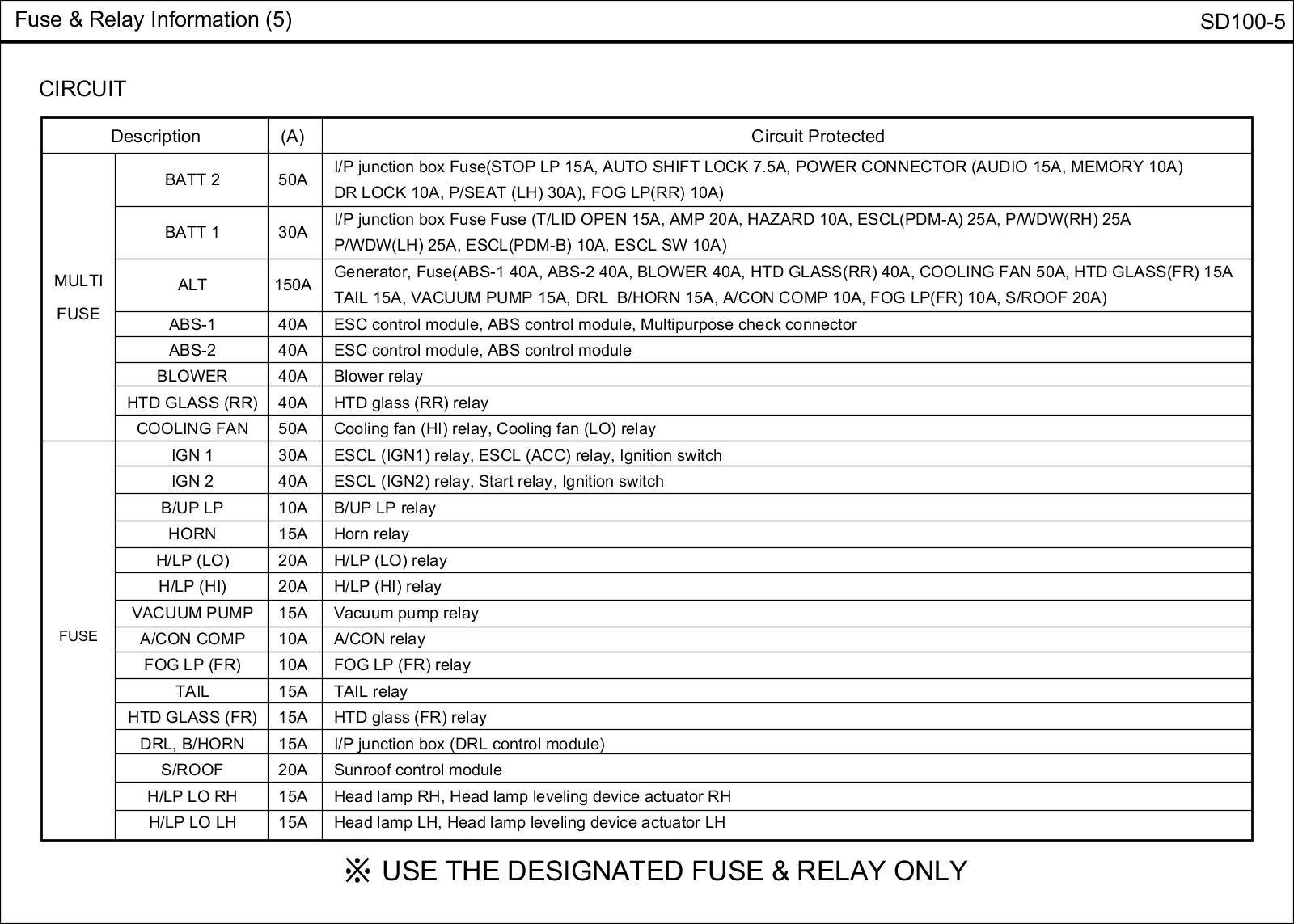

E/R Junction Box LH Circuit Details:




E/R Junction Box RH View:




E/R Junction Box RH Circuit Details:

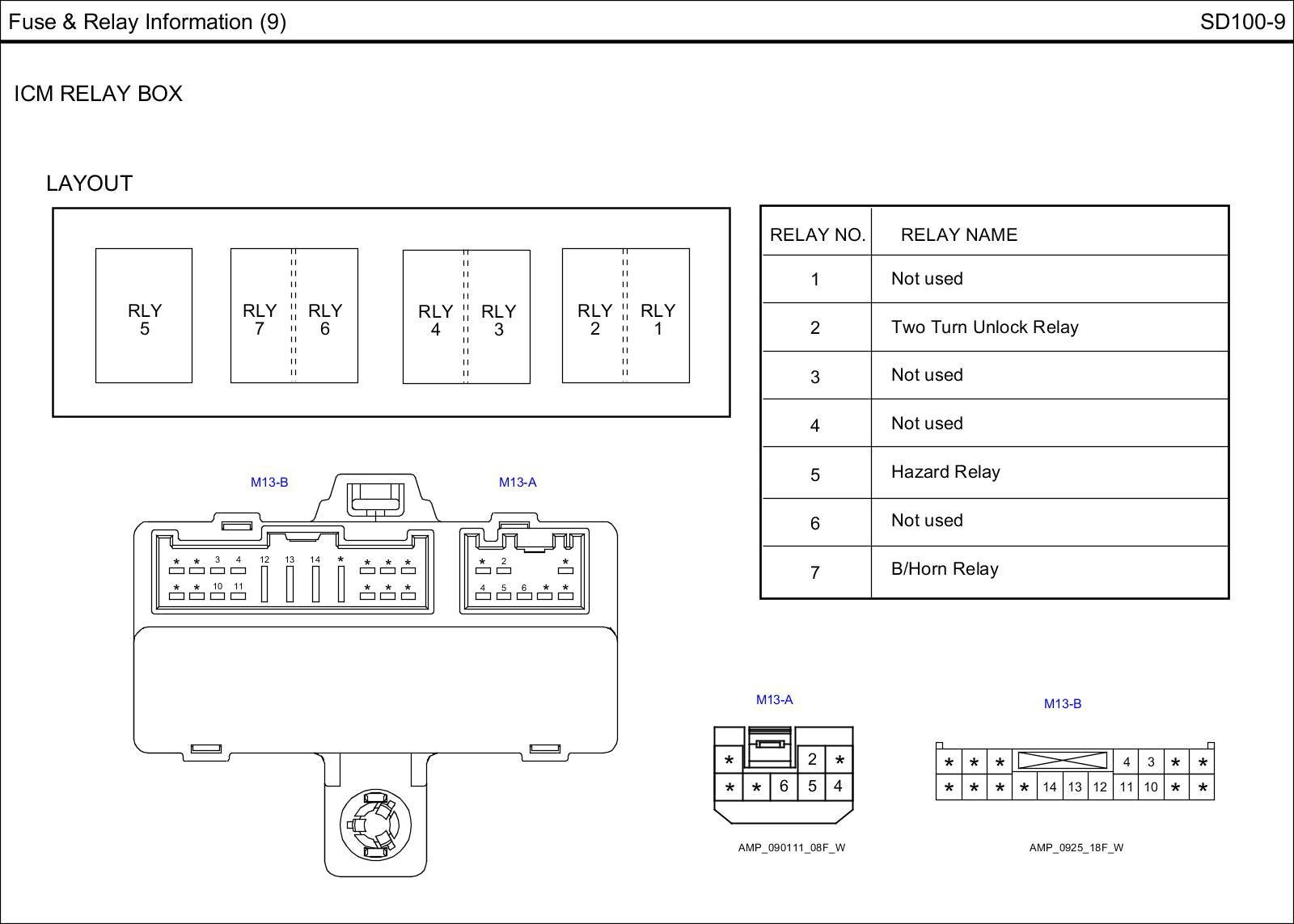

ICM Relay Box:
