Components and Components Location: Components

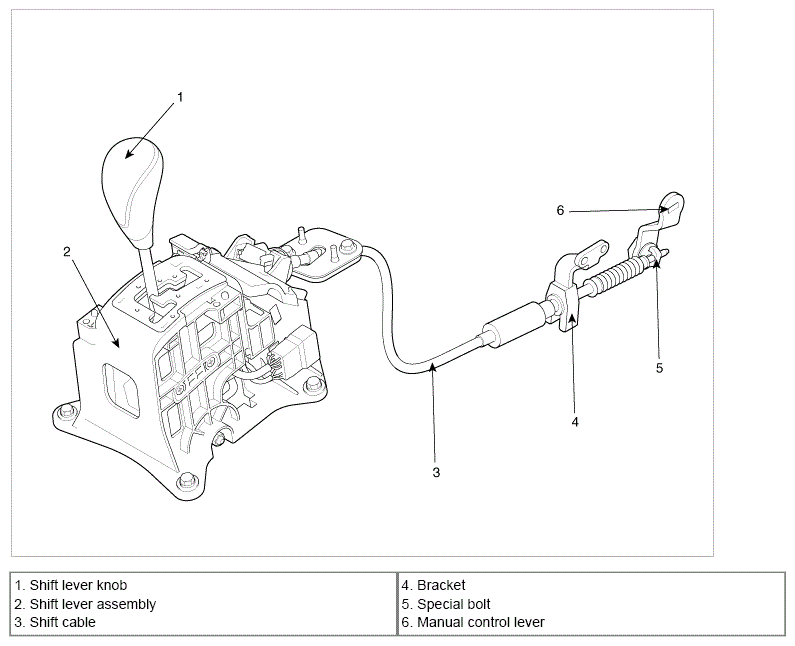

Fig 1: Identifying Shift Lever Components

G08819363

Courtesy of HYUNDAI MOTOR AMERICA
