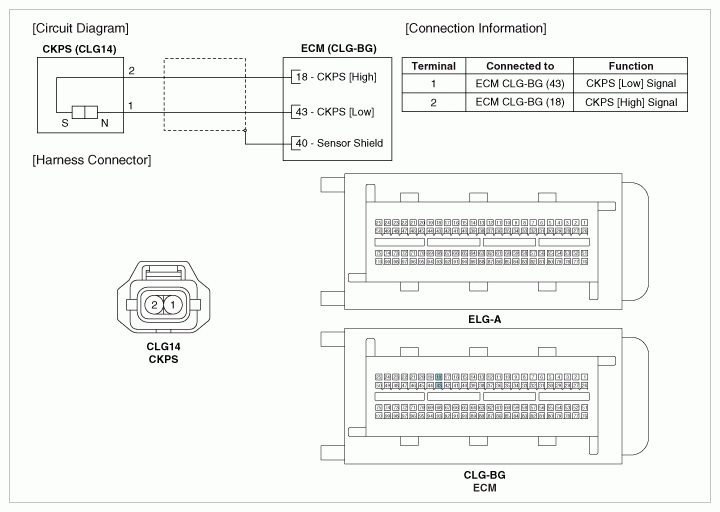

Home >> Hyundai >> 2012 >> Genesis 3.8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram
