Main Relay (Computer/Fuel System)
>>
Locations
>>
Fuse & Relay Information
Fuse & Relay Information
Fuse & Relay Information

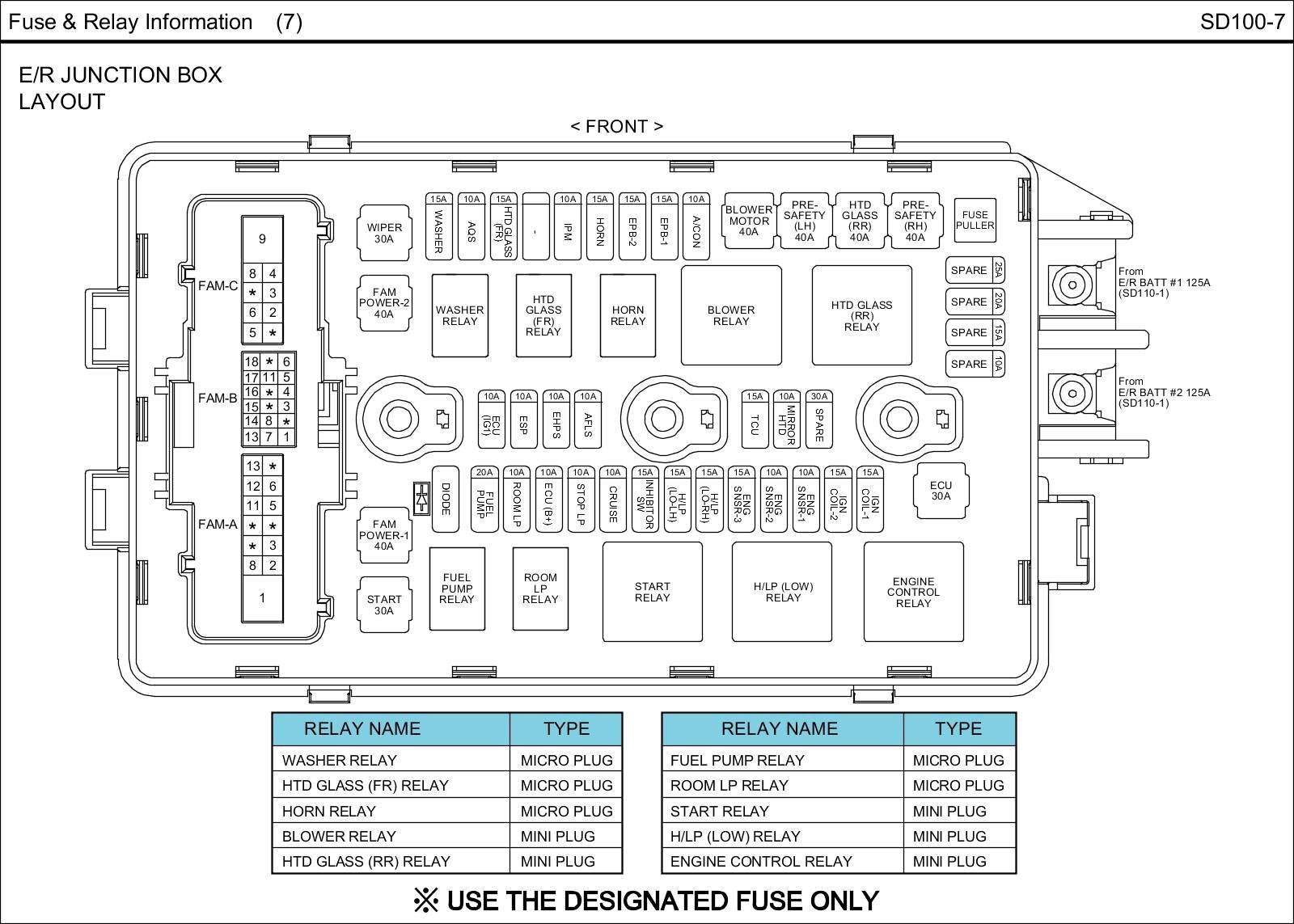

E/R Junction Box View:

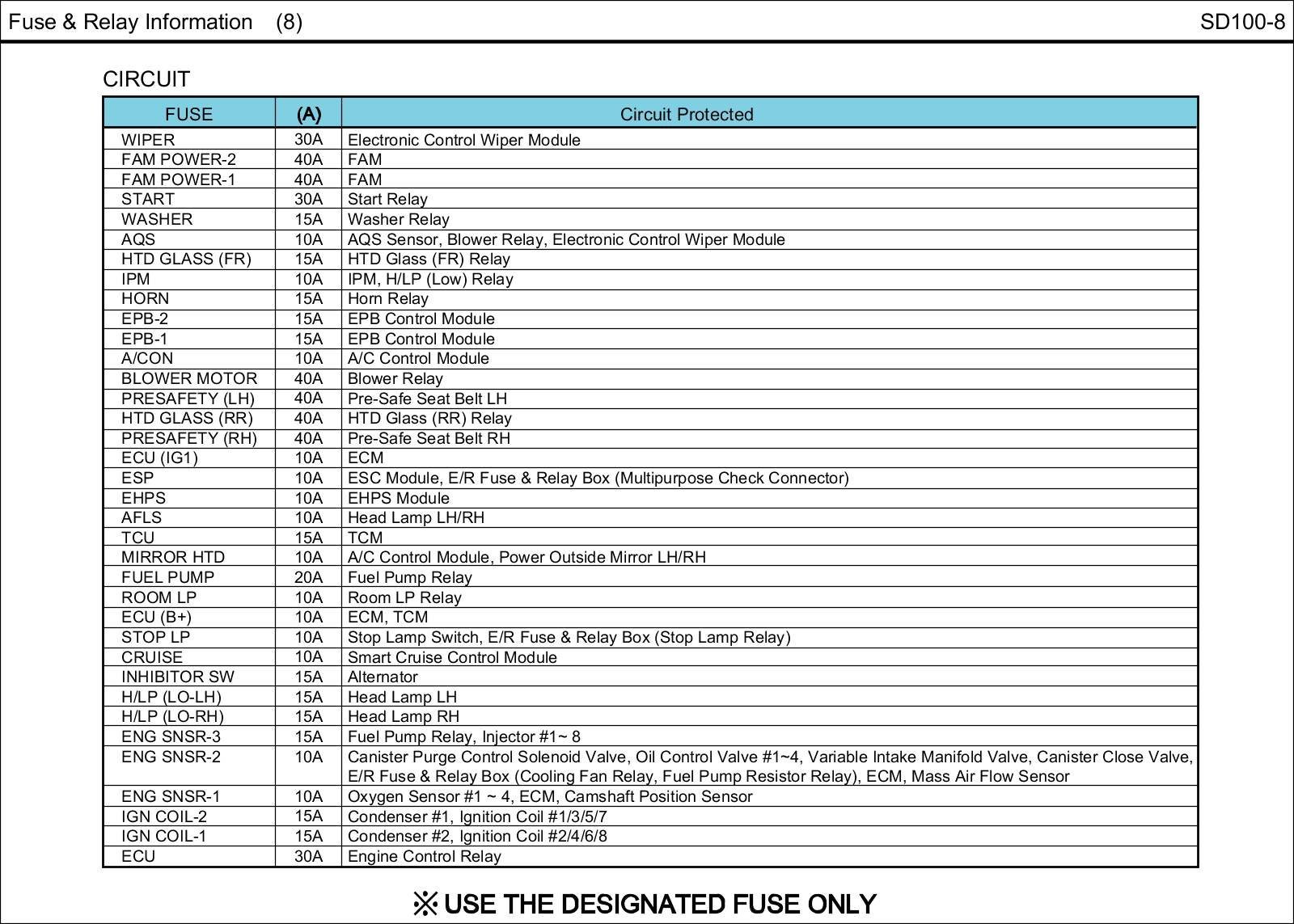

E/R Junction Box Circuit Details:

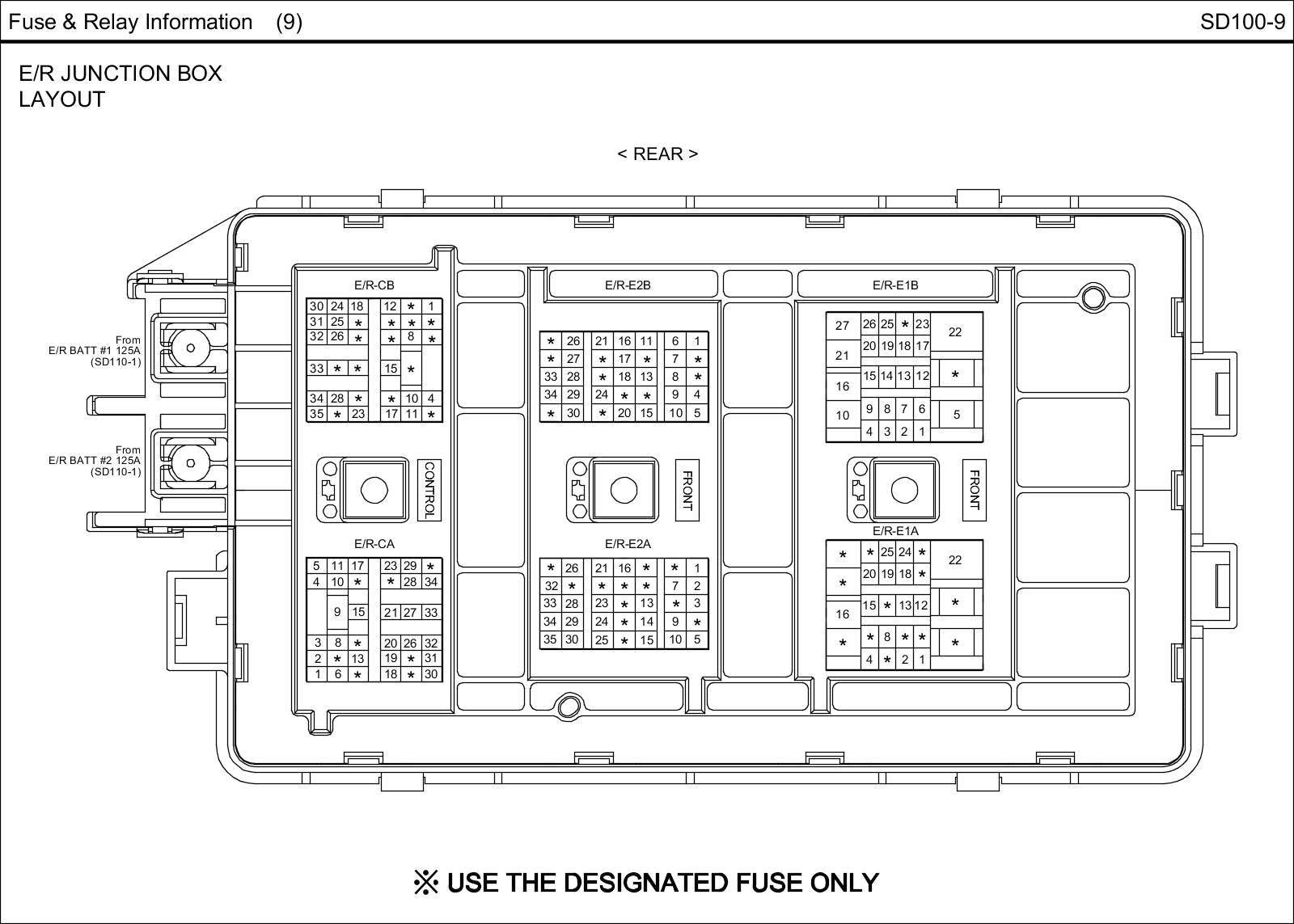

E/R Junction Box View:
