Fuse: Locations

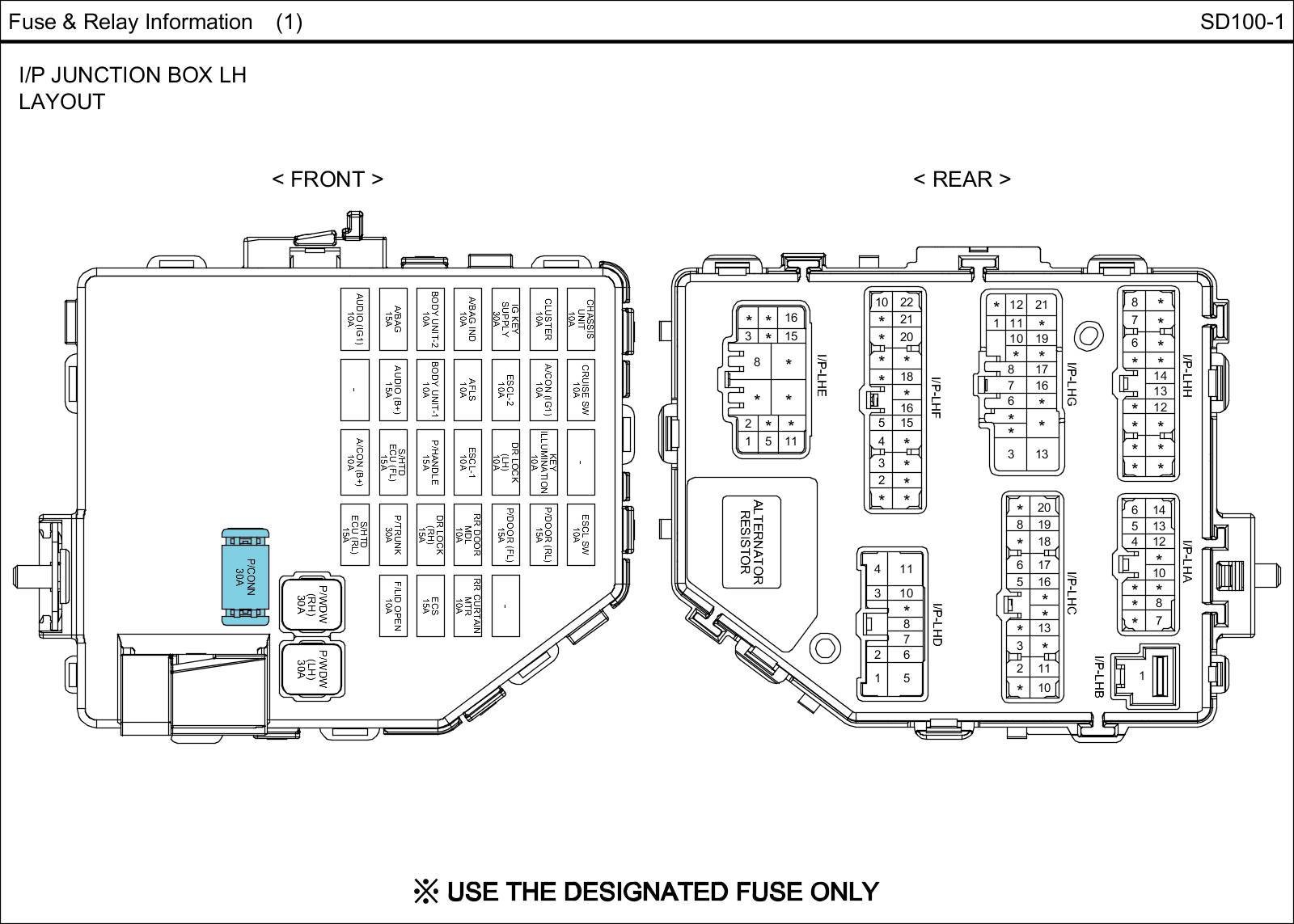

Fuse & Relay InformationI/P Junction Box LH View:

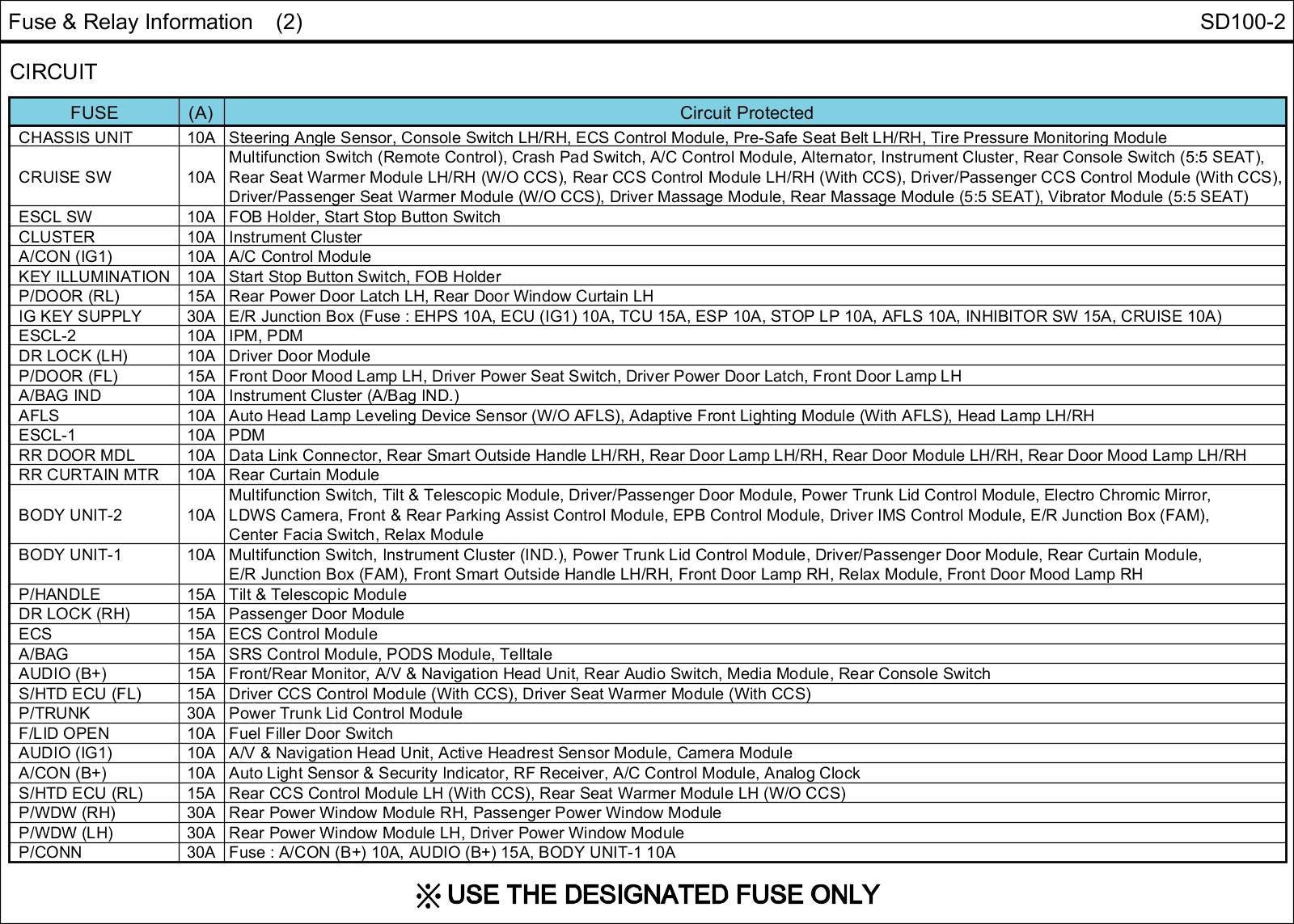

I/P Junction Box LH Circuit Details:

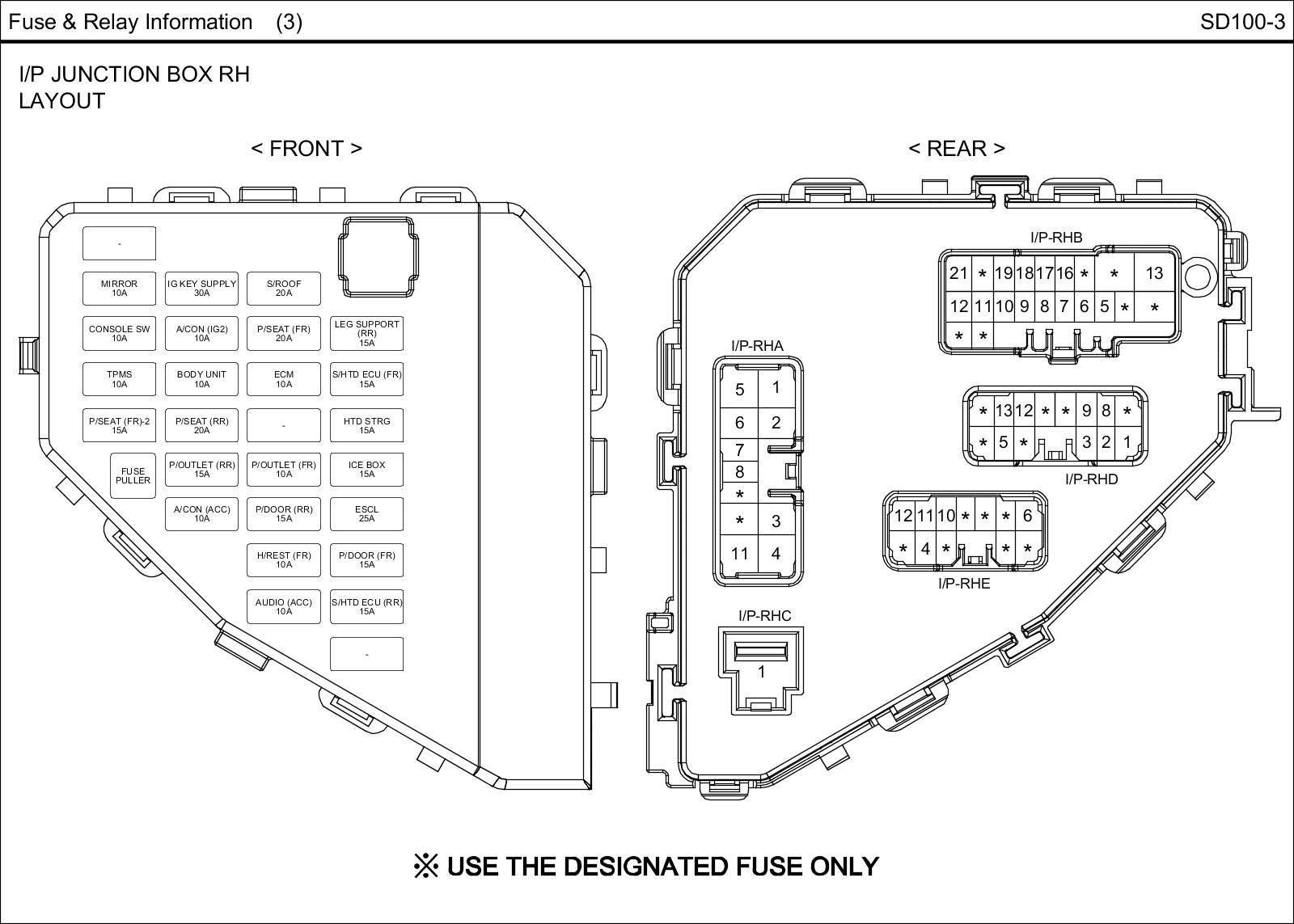

I/P Junction Box RH View:

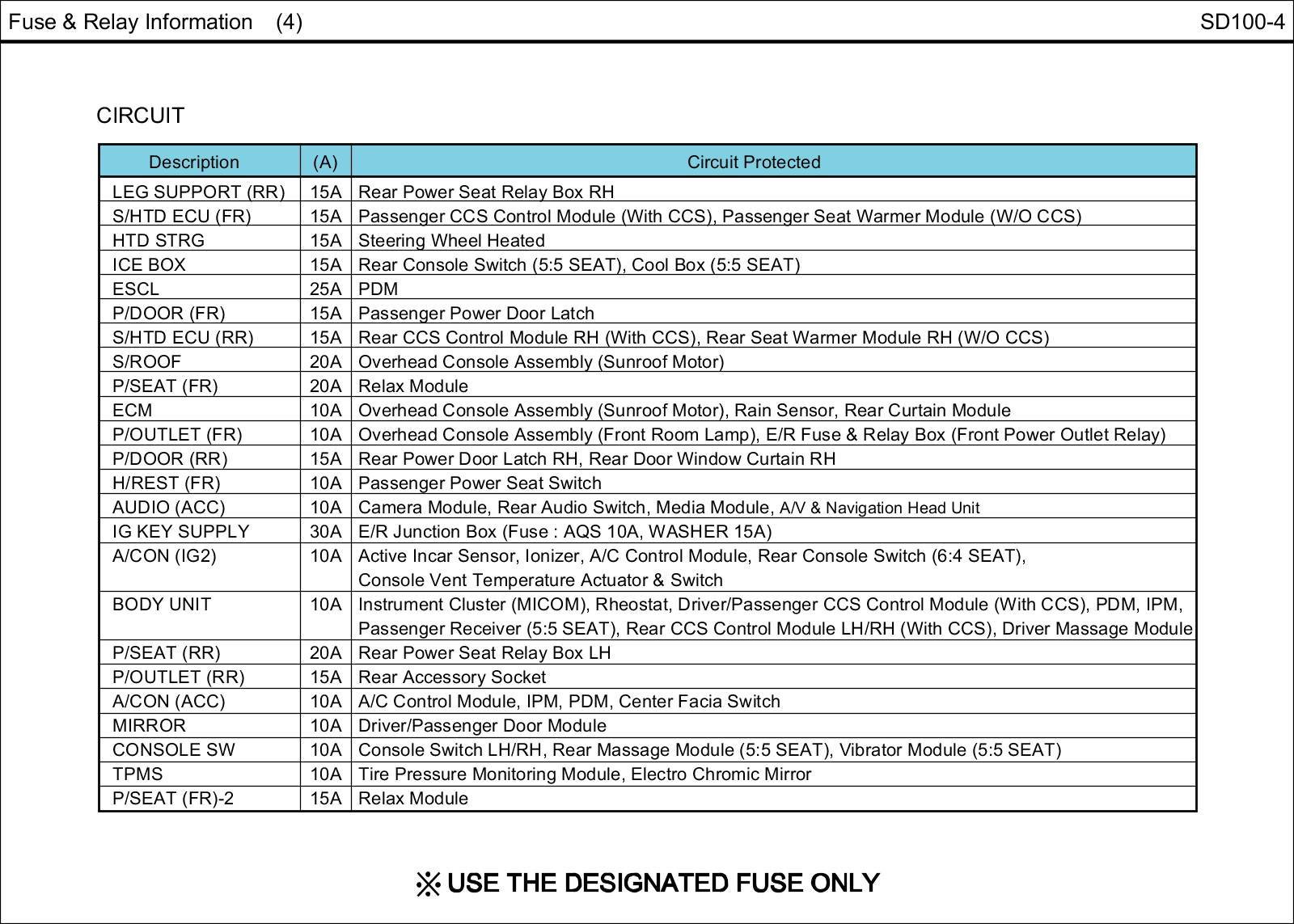

I/P Junction Box RH Circuit Details:

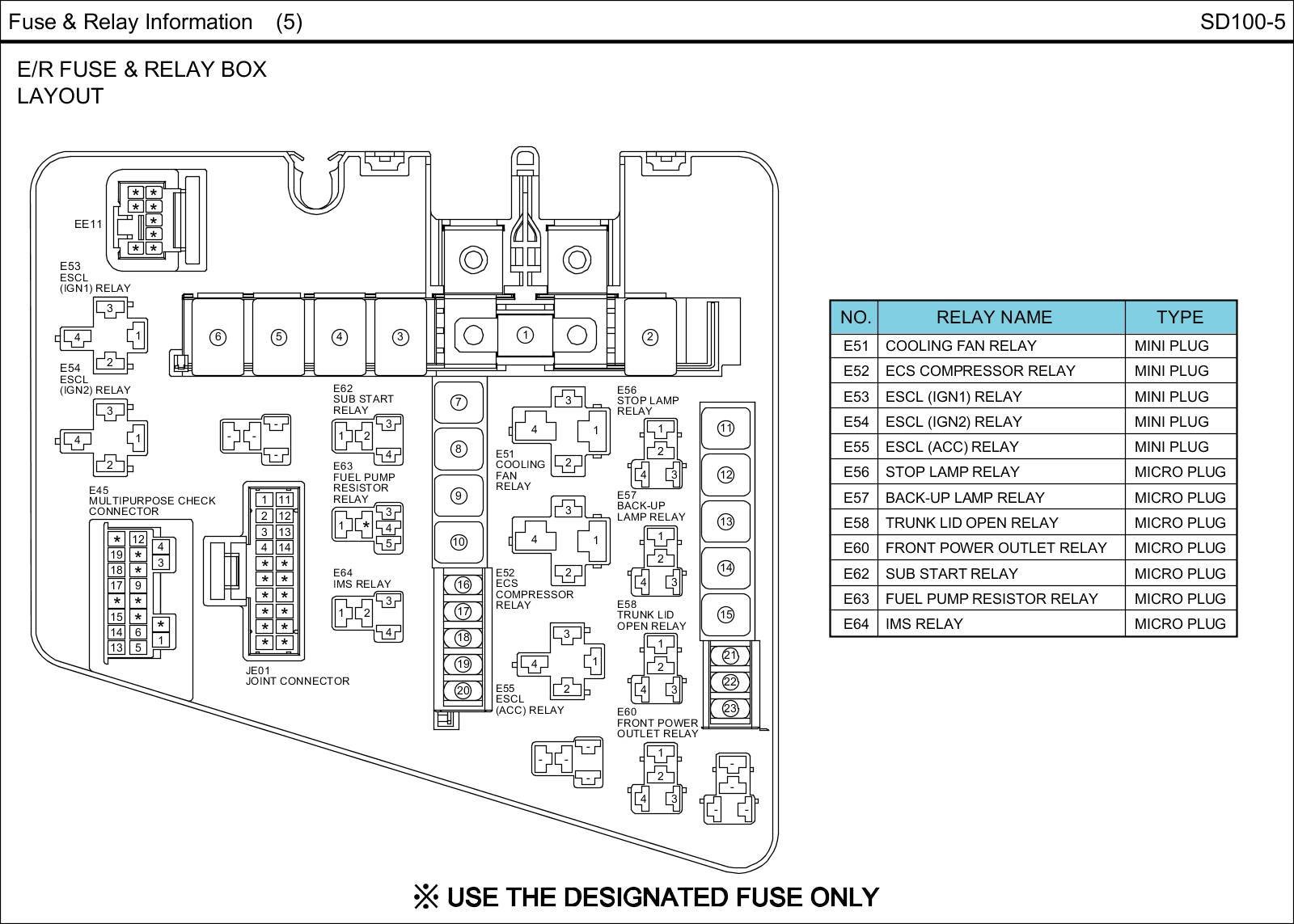

E/R Fuse & Relay Box View:

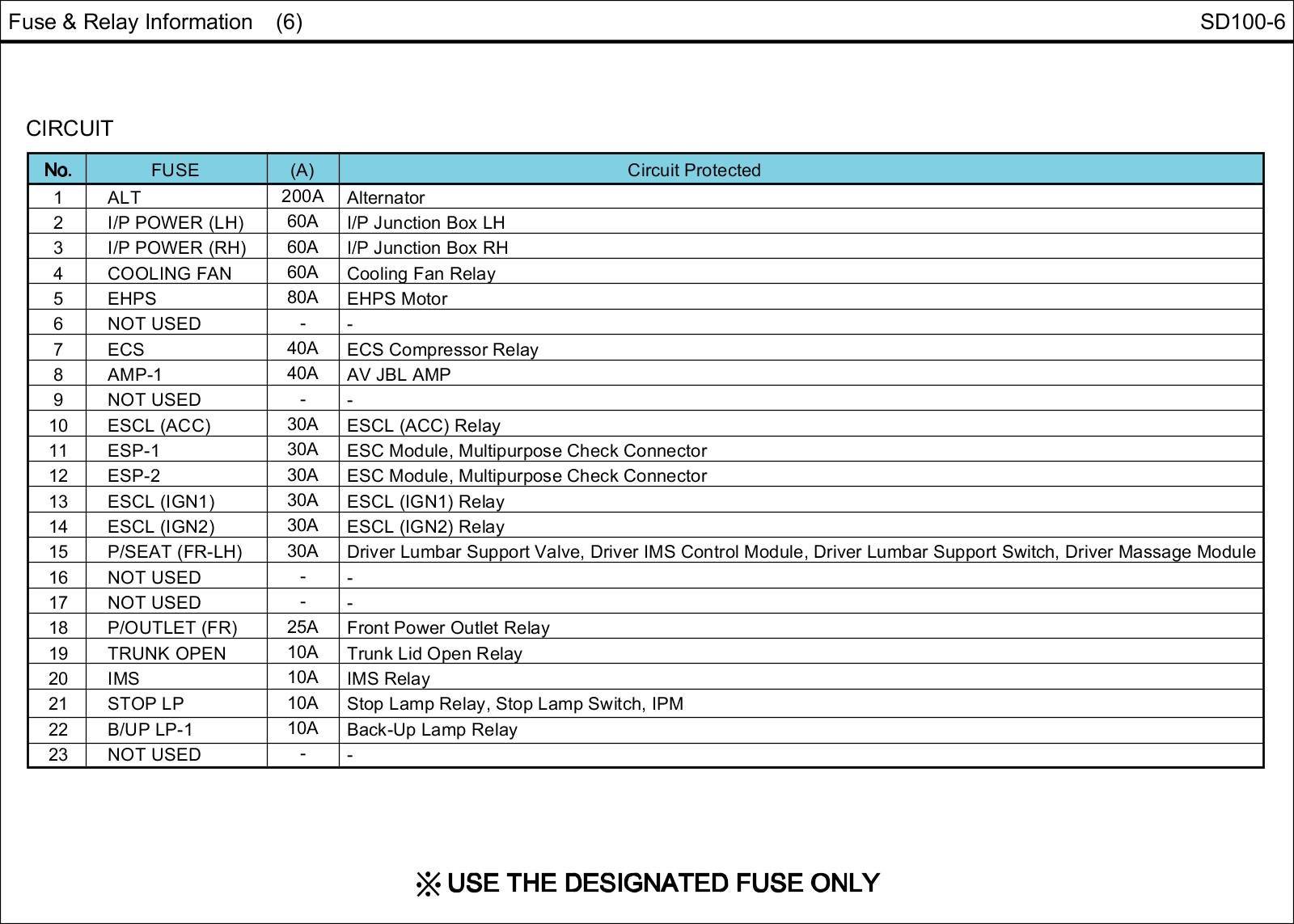

E/R Fuse & Relay Box Circuit Details:
E/R Junction Box View:
E/R Junction Box Circuit Details:
E/R Junction Box View:

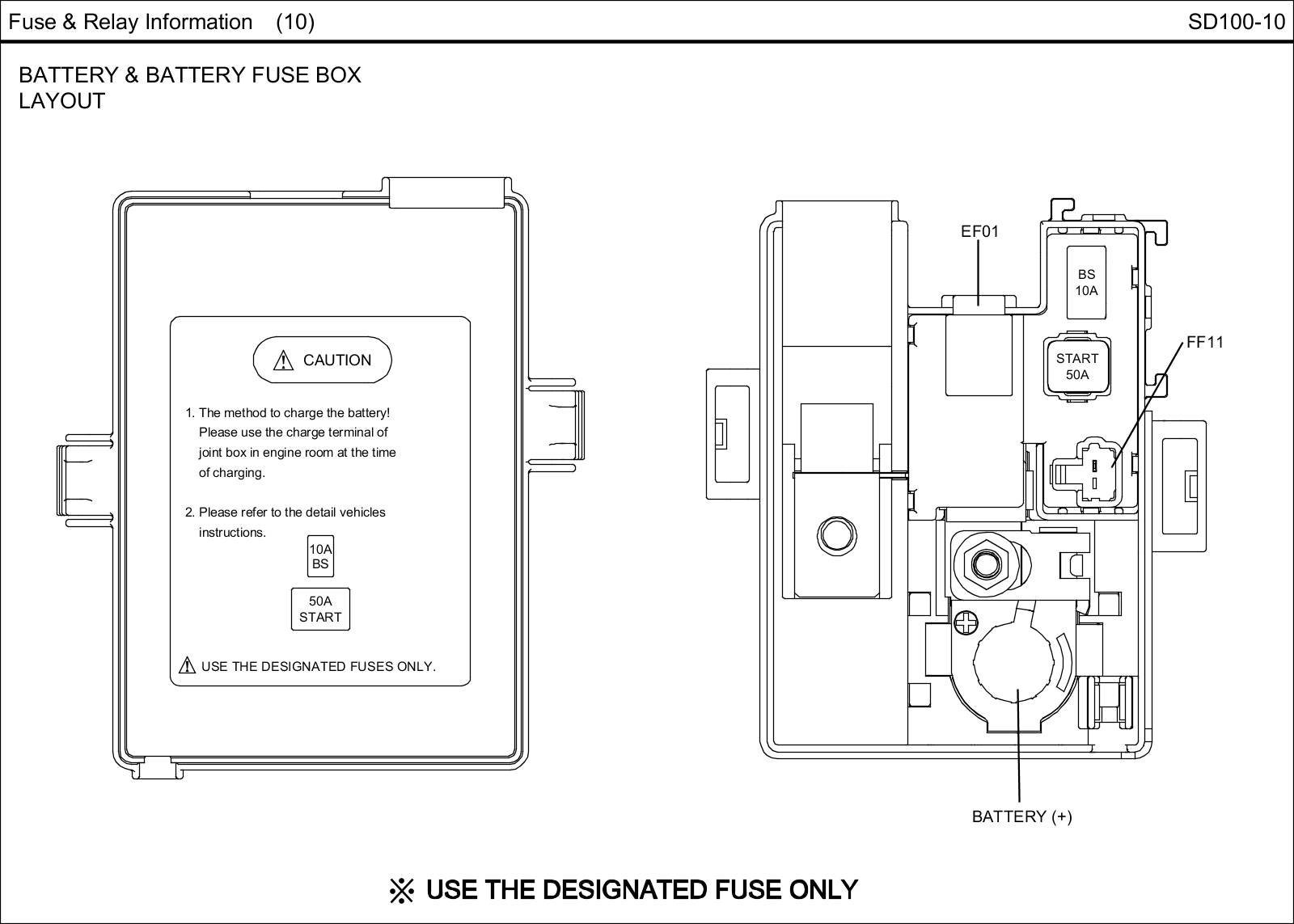

Battery & Battery Fuse Box View:

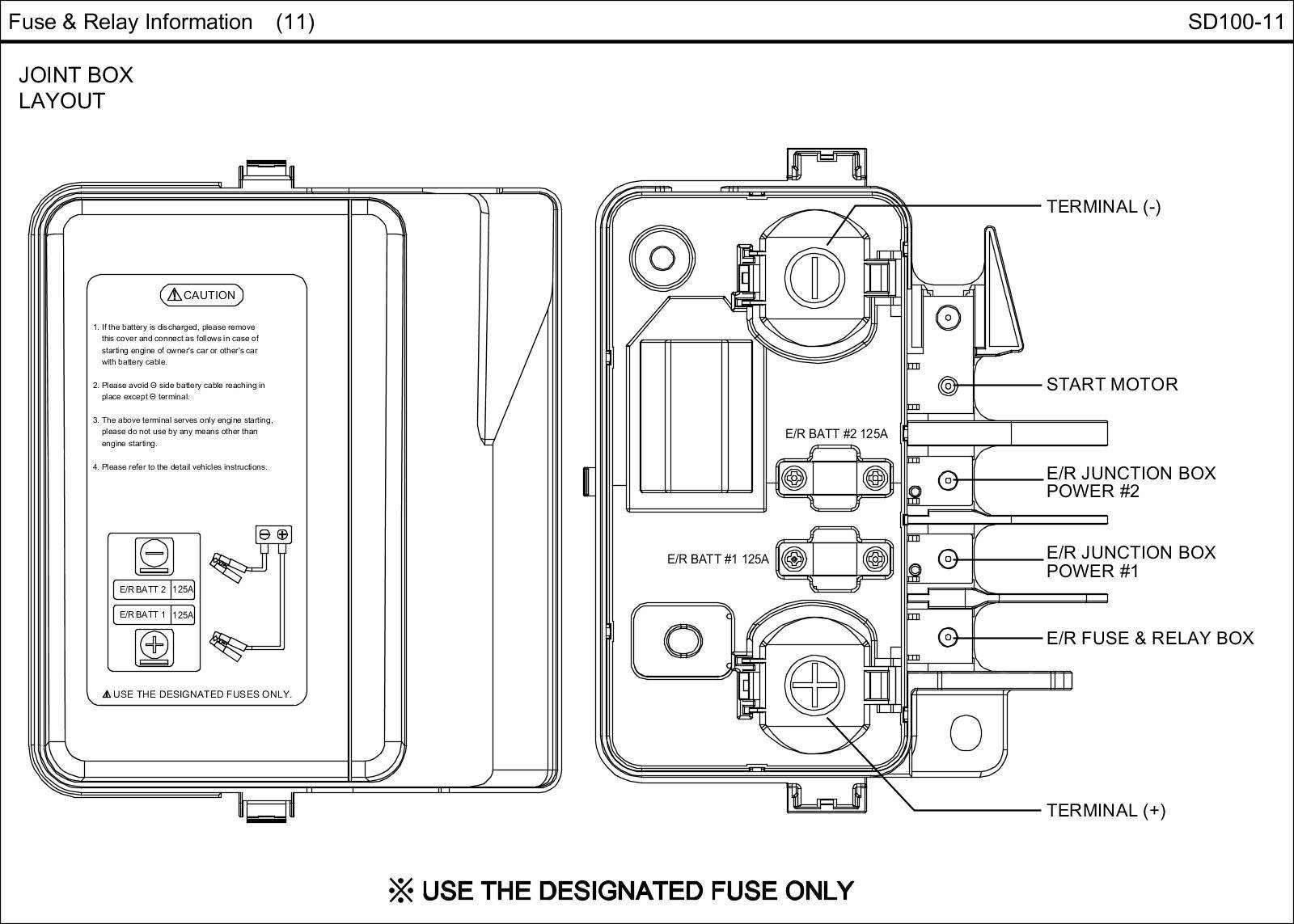

Joint Box View:
