Home >> Hyundai >> 2012 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starter Relay

Starter Relay

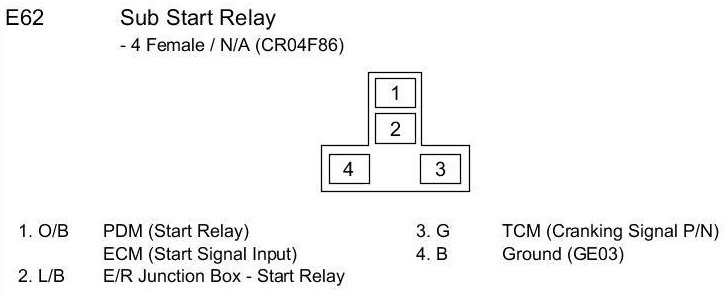

E62 Sub Start Relay:
