Home >> Hyundai >> 2012 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Start / Stop Switch

Start / Stop Switch

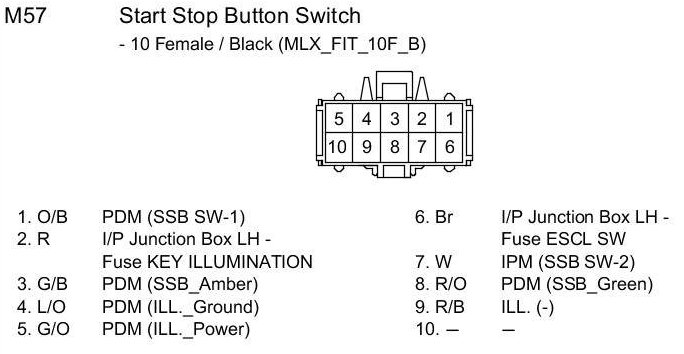

M57 Start Stop Button Switch:
