Home >> Hyundai >> 2012 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> Rear Power Window Module RH

Rear Power Window Module RH

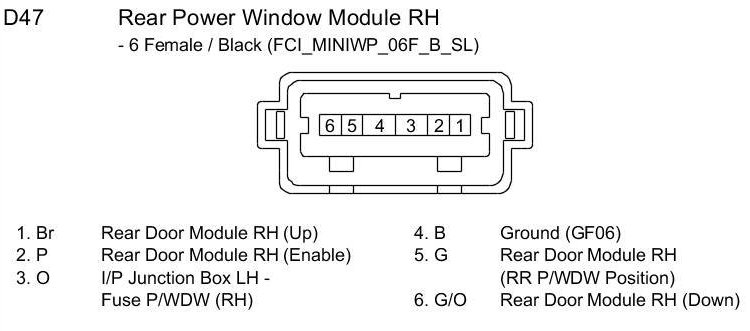

D47 Rear Power Window Module RH:
