Power Trunk / Liftgate Lock Switch
>>
Trunk Lid Main Switch
Trunk Lid Main Switch

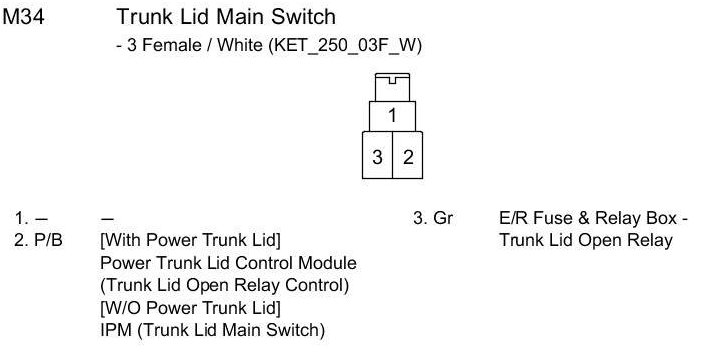

M34 Trunk Lid Main Switch:
