Home >> Hyundai >> 2012 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Receiver >> Front Smart Outside Handle RH

Front Smart Outside Handle RH

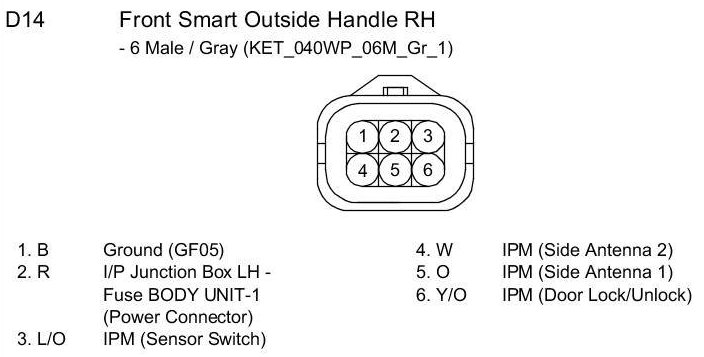

D14 Front Smart Outside Handle RH:
