Hyundai
>>
2012
>>
Equus V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
System Diagram
System Diagram

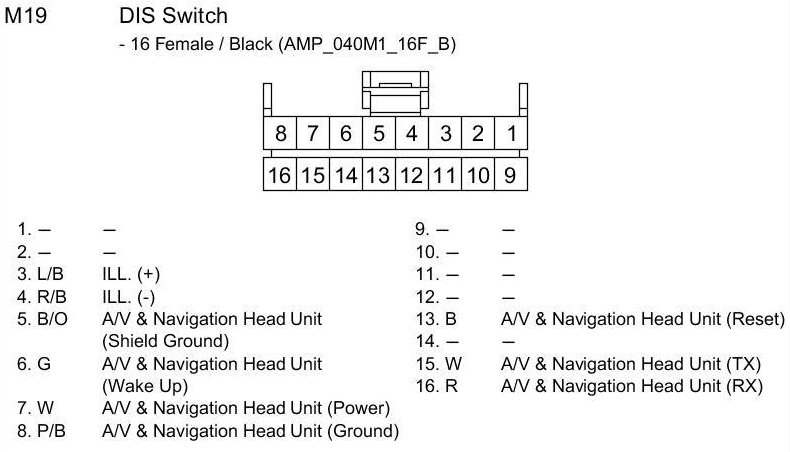

M19 DIS Switch:
