Home >> Hyundai >> 2012 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> F59 Rear Curtain Module

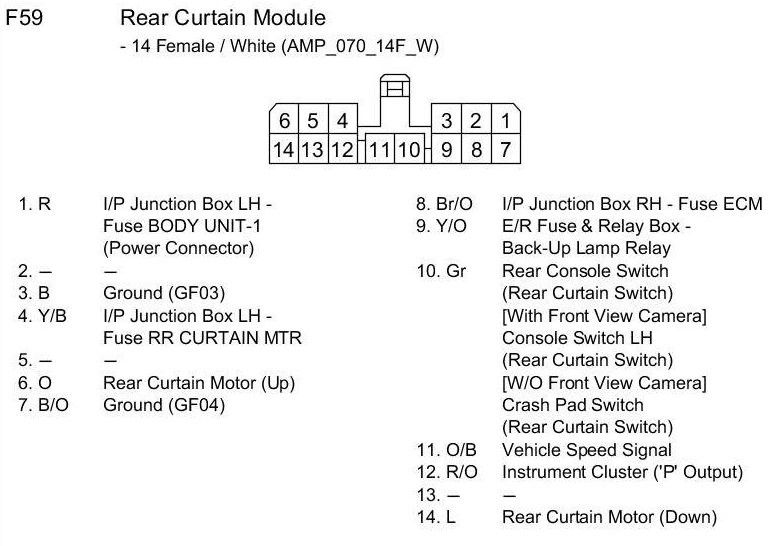

F59 Rear Curtain Module

F59 Rear Curtain Module:
